Actel AGLN-Z-NANO-KIT Quick Start Card

Starter kit

Download this manual

Arrow.com.

Downloaded from

IGLOO

nano Starter Kit

Quickstart Card

Kit Contents – AGLN-Z-NANO-KIT

Quantity

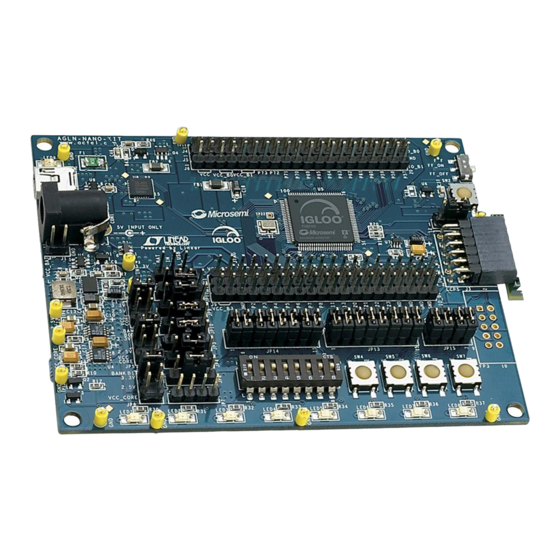

IGLOO nano starter kit board with AGLN250V2-ZVQG100

Low-cost programming stick (LCPS)

USB 2.0 A to Mini-B cables

Note:

Users are entitled to a free copy of Libero® IDE Gold Edition with unlimited renewals.

Description

Page 1 IGLOO nano starter kit board with AGLN250V2-ZVQG100 Low-cost programming stick (LCPS) USB 2.0 A to Mini-B cables Note: Users are entitled to a free copy of Libero® IDE Gold Edition with unlimited renewals. © 2009 Actel Corporation. All rights reserved. Arrow.com. Downloaded from...
Page 2 IGLOO nano Starter Kit Quickstart Card Jumper Settings Set up the board with the default jumper settings described in the table below. These settings are required to run the pre-programmed design. It is recommended to confirm the dark shaded voltage selection jumpers.
Page 3 IGLOO nano Starter Kit Quickstart Card Running the Pre-Programmed Design Plug the USB cable into a powered USB hub or a powered PC. Plug the USB cable into the board to power it up. The board is powered from the USB connection and no external supply is required. On power-up, LED 9 indicates power, but the design is in reset.
Page 4 Actel logo upright. Software and Licensing Download and install the latest release of Libero IDE from the Actel website and register for your free Gold license. Note that Libero IDE v8.4 SP2 or later is required to target AGLN250- ZVQG100.
