Lochinvar WATER HEATERS Installation & Operation Manual

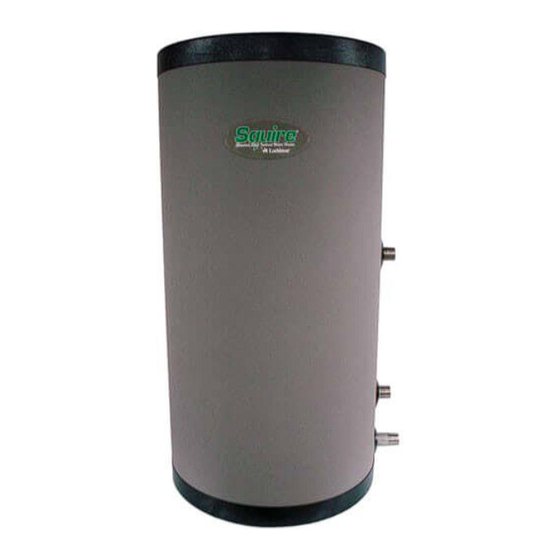

Stainless steel indirect water heaters
Hide thumbs
Also See for WATER HEATERS:
- Installation and service manual (16 pages) ,
- Instruction manual (24 pages)
Advertisement
Table of Contents
- 1 Table of Contents
- 2 Important Information
- 3 General Information
- 4 Pre-Installation
- 5 Location
- 6 Water Connections
- 7 Temperature and Pressure Relief Valve
- 8 Boiler Connections
- 9 Boiler System
- 10 Electrical Connections
- 11 Water Temperature Adjustment
- 12 Operating Instructions
- 13 Maintenance
- Download this manual
STAINLESS STEEL INDIRECT
INSTALLATION, OPERATION and
MAINTENANCE INSTRUCTIONS
TABLE OF CONTENTS
......................................................................................................... 6.
LOCATION ............................................................................................................................... 6.
TEMPERATURE AND PRESSURE RELIEF VALVE ................................................................ 7.
BOILER CONNECTIONS ...................................................................................................
BOILER SYSTEM ...............................................................................................................
WATER TEMPERATURE ADJUSTMENT................................................................................
OPERATING INSTRUCTIONS .............................................................................................
MAINTENANCE ................................................................................................................
WATER HEATERS
............................................................................................... 2.
.................................................................................................. 3.
.................................................................................................... 6.
............................................................................................. 9.
1
8.
9.
9.
10.
11.
Advertisement
Table of Contents
Related Manuals for Lochinvar WATER HEATERS
Summary of Contents for Lochinvar WATER HEATERS
-
Page 1: Table Of Contents
STAINLESS STEEL INDIRECT WATER HEATERS INSTALLATION, OPERATION and MAINTENANCE INSTRUCTIONS TABLE OF CONTENTS IMPORTANT INFORMATION ……………………………………………………………………………... 2. GENERAL INFORMATION …………………………………………………………………………………….. 3. PRE-INSTALLATION ………………………………………………………………………………………... 6. LOCATION ………………………………………………………………... 6. WATER CONNECTIONS …………………………………………………………………………………... 6. TEMPERATURE AND PRESSURE RELIEF VALVE ………………………………………………………. 7. BOILER CONNECTIONS ………………………………………………………………………………………... -
Page 2: Important Information
These regulations must be carefully followed in all cases. Authorities having jurisdiction shall be consulted before installations are made. All wiring on water heaters installed in the USA must be in accordance with the National Electrical Code and/or local regulations; or in Canada, installed in accordance with the Canadian Electrical Code and/or local regulations. -
Page 3: General Information
To avoid damage or injury, there must be no materials stored against the indirect water heater and proper care shall be taken to avoid unnecessary contact (especially by children) with the indirect water heater. Do not store or use gasoline or other flammable liquids in the vicinity of this water heater or any other appliance. - Page 4 DO NOT tamper with or alter the water heater and/ or controls. DO NOT operate the water heater if any external part has been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system that was under water.
- Page 5 Stainless Steel Indirect Hour Hour Model Gallon Rating Rating Number Capacity @140°F @115°F SSS030 SSS040 SSS060 SSS085 SSS120 Notes: Water connections are 1" NPT Heat Exchanger connections are 1" female NPT Performance data is based on manufacturer's test results. All ratings are based on 180°F boiler water temperature, 50°F potable water temperature and an approximate boiler output of 220,000 Btu/Hr.
-
Page 6: Pre-Installation
2. Unions – Allows water heater movement during service if adequate clearance cannot be provided. 3. Thermal Expansion Tank – If the water heater is installed in a closed water supply system, such as one having a back-flow preventor in the cold water line, provide thermal expansion control. Contact the water supplier or local plumbing inspector for additional information. -
Page 7: Temperature And Pressure Relief Valve
3. After installation of the water lines, open the main water supply valve and fill the water heater. While the water heater is filling, open several hot water faucets to allow air to escape from the water system. When steady streams of water flow through the faucets, close them and check all water connections for possible leaks. -
Page 8: Boiler Connections
The use of a union and a shut-off valve is recommended. The use of a flow control or check valve is required to prevent back flow through the water heater during operation of the space heating system. Pipe and fittings between the boiler and Indirect should be ¾” diameter or larger. -
Page 9: Boiler System
BOILER SYSTEM 1. On new boiler installations, do not purge the boiler or space heating system through the water heater. During any boiler or space heating system flushing, cleaning, or purging, the water heater should be isolated to avoid possible attack on the coil by chemical additives. -
Page 10: Operating Instructions
Adjusting to a higher temperature may not immediately affect water temperature. If a heat up cycle begins, return to step 3. If a heat-up cycle does not begin, draw sufficient water or allow the water heater to sit until a heat-up cycle is initiated. Repeat step 3. -
Page 11: Maintenance
MAINTENANCE The Indirect Water Heater is intended to provide a service life of many years. Components that require service, however, may be subject to failure. Failure to use the correct procedures or parts in these circumstances may make the water heater unsafe. The owner should arrange to have the following inspections and simple maintenance procedure performed by qualified service personnel at the frequencies suggested. - Page 12 NOTES: 300 Maddox Simpson Parkway Lebanon, TN 37090 615-889-8900 www.Lochinvar.com...
