DigitalLife U2AUDIO7-1 User Guidance Manual
External 7.1 usb sound box
Hide thumbs
Also See for U2AUDIO7-1:
- Operating instruction (20 pages) ,
- Operating instructions manual (20 pages)
Related Manuals for DigitalLife U2AUDIO7-1
Summary of Contents for DigitalLife U2AUDIO7-1

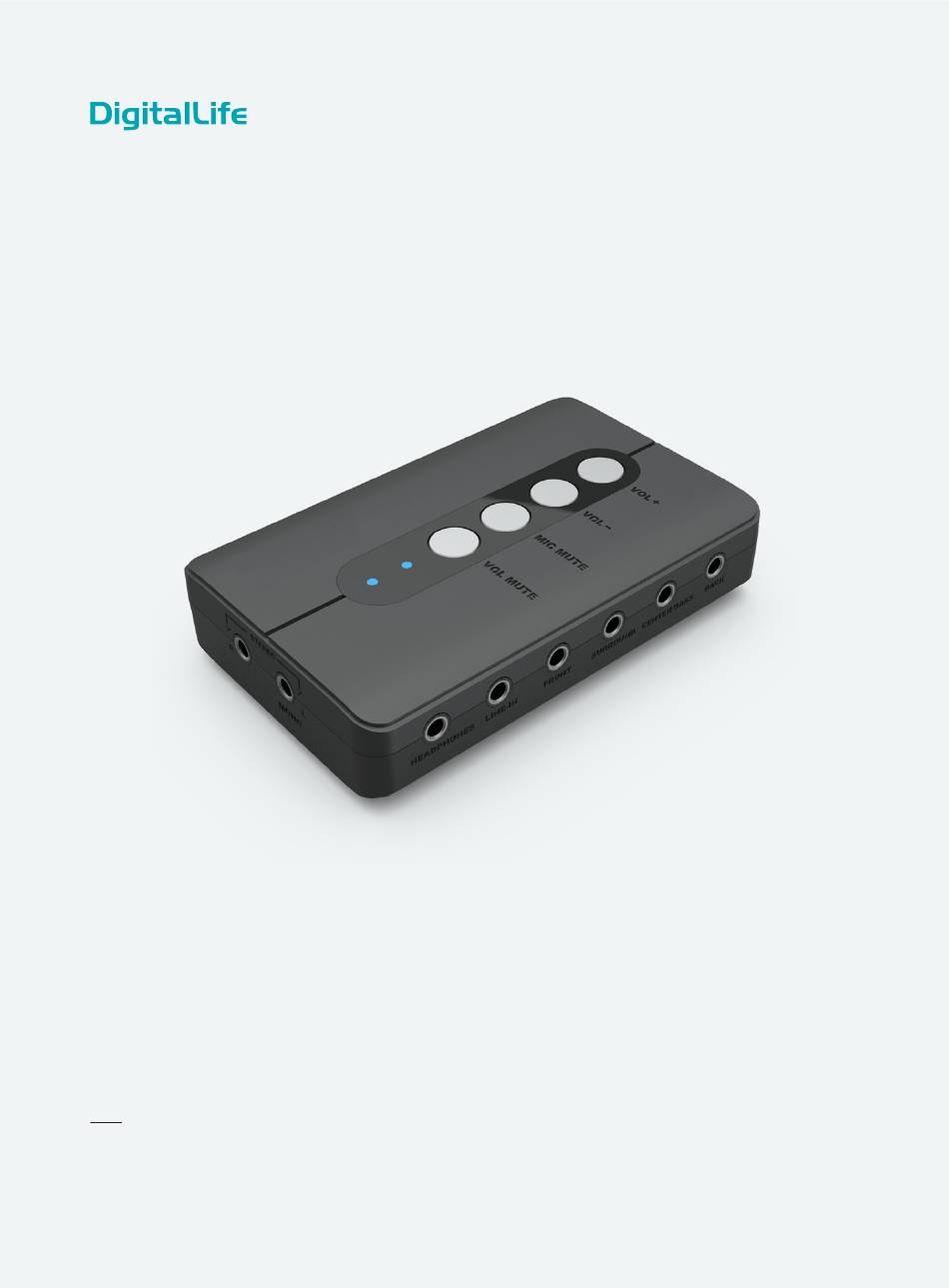

- Page 1 U2AUDIO7-1 USB 7.1 EXTERNAL SOUND BOX User Guidance Version:v1 Copying or reproduction of this doc- ument in whole or in part without permission is prohibited.
-
Page 2: Table Of Contents
Software Download or Updates Hardware Interfaces Installing and Uninstalling Software Installing Drivers and Applications Uninstalling Drivers and Applications Playing Music How to Use the U2AUDIO7-1 Recording Music Creating Music Watching DVDs Connecting Analog Speakers Systems Connecting Speakers Connecting Home Theatre Systems... -
Page 3: Introduction
3.5mm TRS microphone jack. XLR based microphones (even if adapted to a different interface) will not work with this audio adapter. 48V of additional Phantom Power is needed to make this work. The U2AUDIO7-1 does not provide Phantom Power. -
Page 4: Hardware Interfaces

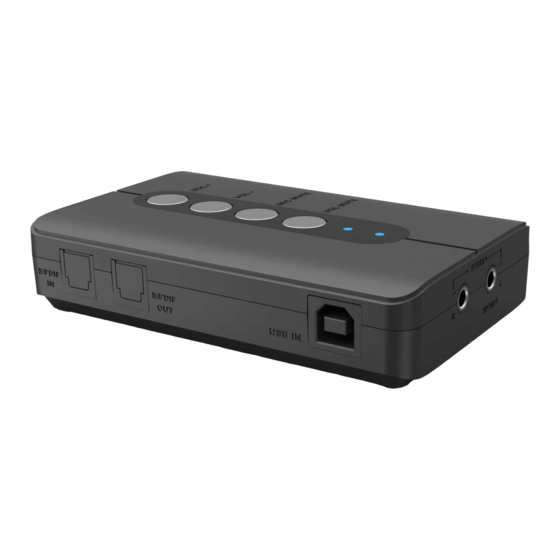

HARDWARE INTERFACES The DigitalLife U2AUDIO7-1 has the following indicators and control dials to adjust and monitor operational status. STEREO MONO S/PDIF S/PDIF HEADPHONES LINE-IN FRONT SURROUND CENTER/BASS BACK USB IN 1. VOL+ / VOL- Increases or decreases audio output volume. -
Page 5: Installing And Uninstalling Software
To enjoy all the advanced features of your audio device, install the drivers and applications provided on the software download page. Download at digitallife.shop/pages/faq-u2audio7-1 Uninstalling Drivers and Applications At times you may need to uninstall some or all of the audio applications and device drivers to correct problems, change configurations, or upgrade outdated drivers or applications. -
Page 6: Playing Music
HOW TO USE THE U2AUDIO7-1 Your audio device works seamlessly with many external devices. To connect these peripherals, refer to their relevant sections below: • Playing Music • Recording Music • Creating Music • Watching DVDs Playing Music You can connect stereo headphones to the Headphone jack of your audio device. The following diagram also shows the connection for analog stereo or 2.1 channel speakers. -
Page 7: Recording Music
• Mic In will override Line In if both are connected simultaneously. • To listen to the audio from the source connected to the Line In or Mic In jacks: i. In the Mixer selection of Entertainment Console, un-mute the Line In/Mic In input. www.digitallife.shop... -
Page 8: Watching Dvds
Connect the digital input of your external decoder or AV Amplifier to the Optical SPDIF Out connector of your audio device. For more information on external decoder or AV Amplifier speaker connection settings, consult the User's Guide of your external decoder or AV Amplifier. S/PDIF S/PDIF USB IN www.digitallife.shop... -
Page 9: Connecting Analog Speakers Systems
• 7.1 channel analog speakers 2.1 Channel Analog Speakers You may use the speaker cables that were bundled with your speakers. HEADPHONES LINE-IN FRONT SURROUND CENTER/BASSB AUDIO OUTPUTS Audio Inputs AUDIO INPUTS ※The 3.5mm Audio Jack is for 3-Position TRS. www.digitallife.shop... - Page 10 5.1 Channel Analog Speakers You may use the speaker cables that were bundled with your speakers. HEADPHONES LINE-IN FRONT SURROUND CENTER/BASSB AUDIO INPUTS AUDIO INPUTS Front Center Surround AUDIO OUTPUTS /Bass ※The 3.5mm Audio Jack is for 3-Position TRS. www.digitallife.shop...
- Page 11 7.1 Channel Analog Speakers You may use the speaker cables that were bundled with your speakers. HEADPHONES LINE-IN FRONT SURROUNDC ENTER/BASS BACK AUDIO INPUTS AUDIO INPUTS Front SurroundB Center AUDIO OUTPUTS /Bass ※The 3.5mm Audio Jack is for 3-Position TRS. www.digitallife.shop...
-
Page 12: Connecting Home Theatre Systems
If your A/V receiver supports multichannel line-level inputs, you can connect them directly to your audio device's Line Out jacks instead of the Optical S/PDIF Out connector as shown below. HEADPHONES LINE-INF RONT SURROUND CENTER/BASSB ※The 3.5mm Audio Jack is for 3-Position TRS. www.digitallife.shop... -
Page 13: Technical Specifications
The audio adapter’s SPDIF optical pass-through port supports 2-channel Note audio, this port does not support 5.1 or 7.1 audio. 1 - Microphone Mute LED Indicators 1 – Power / Activity Color Black Dimension 100 x 65 x 22mm Product Weight www.digitallife.shop... -
Page 14: Troubleshooting
USB bandwidth. Lower sampling and bit depth rates, however, usually result in lower audio quality. This should not be a problem if you are using a USB 2.0 connection. www.digitallife.shop... -
Page 15: License And Copyright
Information in this document is subject to change without notice and does not represent a commitment on the part of DigitalLife. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose without the written permission of DigitalLife. - Page 16 www.digitallife.shop...
