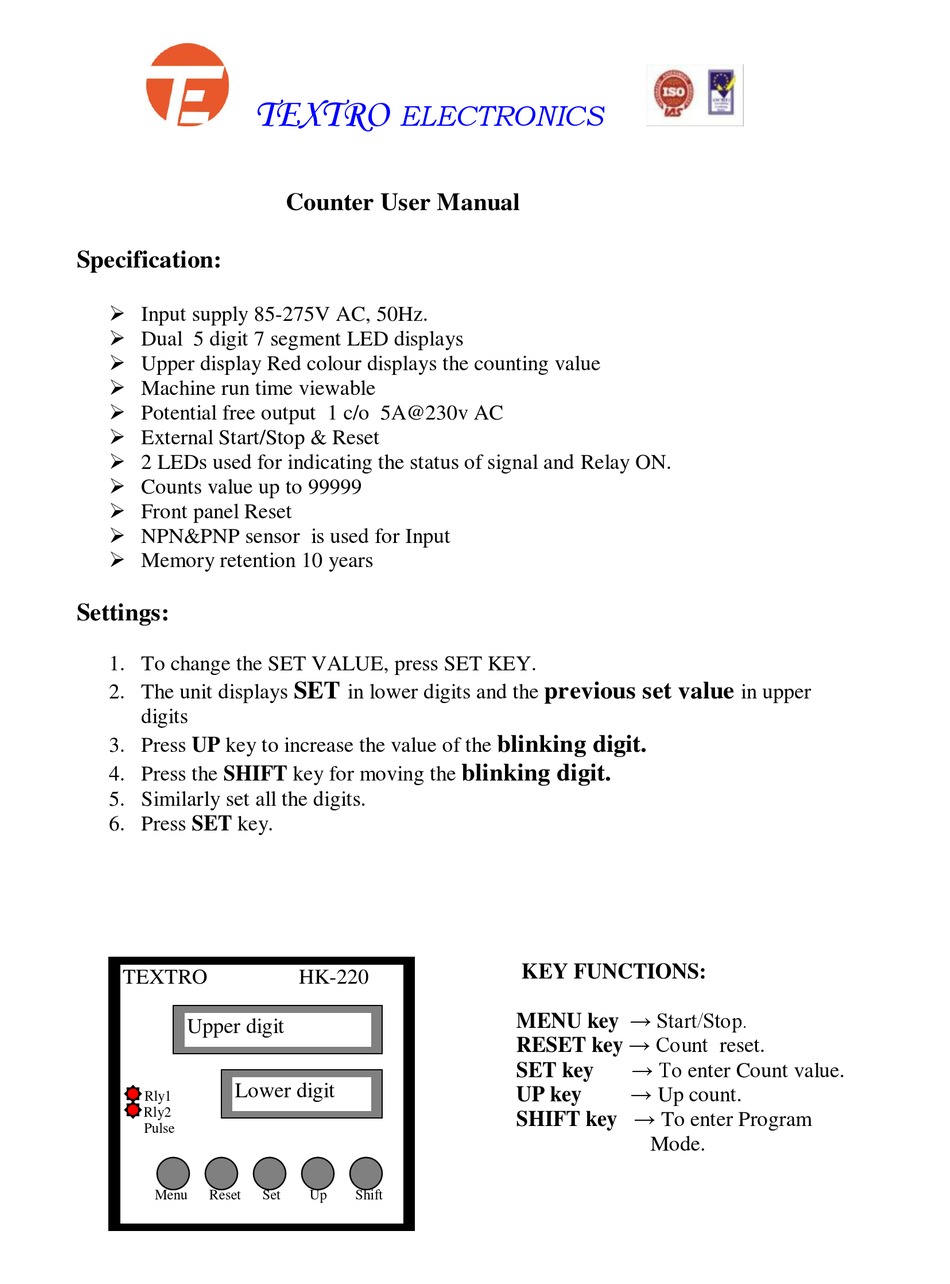

TE HK-220 User Manual

Specification:

 Input supply 85-275V AC, 50Hz.
 Dual 5 digit 7 segment LED displays
 Upper display Red colour displays the counting value
 Machine run time viewable
 Potential free output 1 c/o 5A@230v AC
 External Start/Stop & Reset
 2 LEDs used for indicating the status of signal and Relay ON.
 Counts value up to 99999
 Front panel Reset
 NPN&PNP sensor is used for Input
 Memory retention 10 years

Settings:

1. To change the SET VALUE, press SET KEY.
2. The unit displays
digits
3. Press UP key to increase the value of the
4. Press the SHIFT key for moving the
5. Similarly set all the digits.
6. Press SET key.
TEXTRO
Upper digit
Lower digit
Rly1
Rly2
Pulse
Menu Reset
1
1
TEXTRO
ELECTRONICS
Counter User Manual
SET
in lower digits and the
HK-220
Set Up Shift
1 1
1 1
previous set value
blinking digit.
blinking digit.

KEY FUNCTIONS:

MENU key → Start/Stop.
RESET key → Count reset.
→ To enter Count value.
SET key
→ Up count.
UP key
SHIFT key → To enter Program
in upper
Mode.
