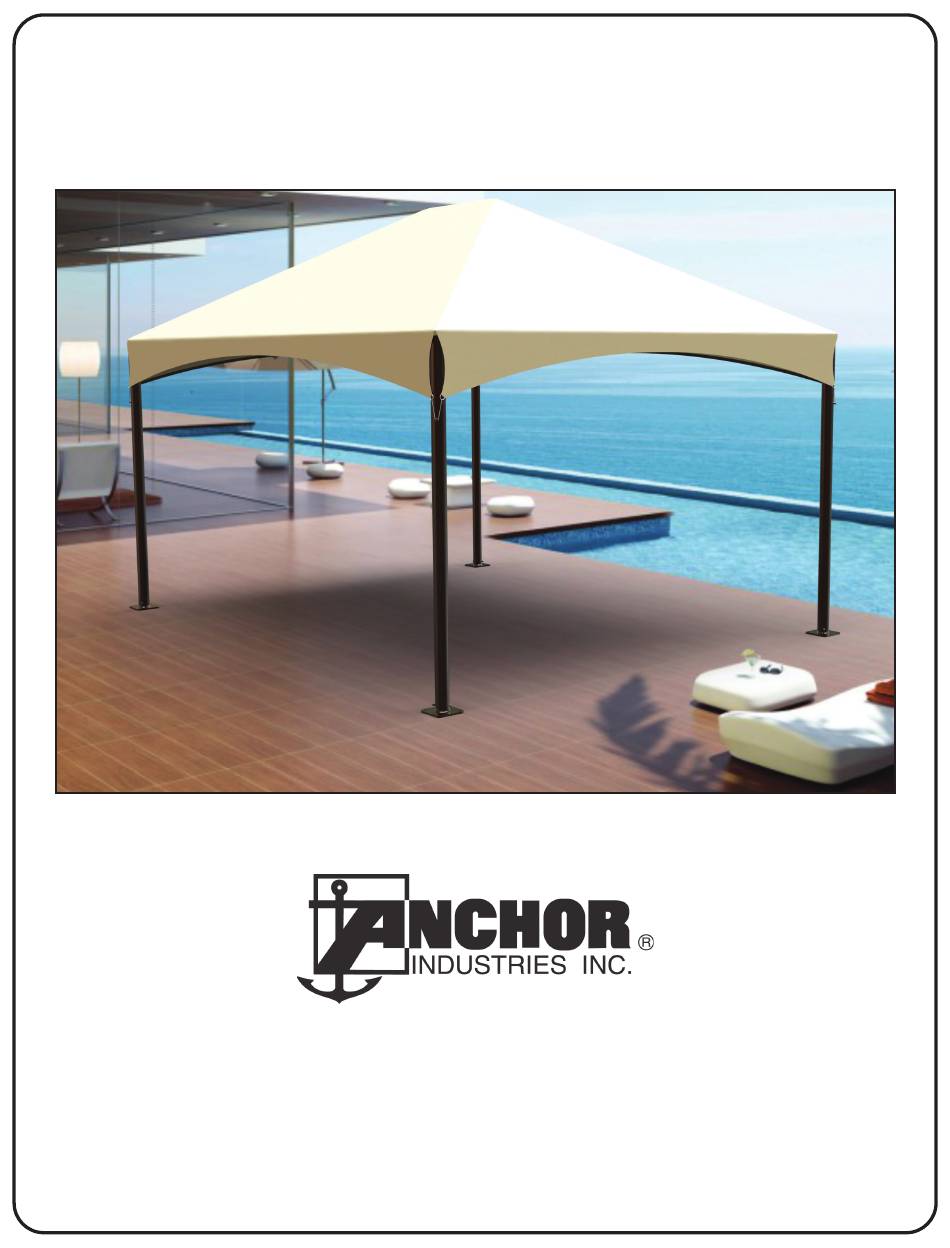

Installation Instructions
Aloha Cabana
Please read all assembly / installation instructions before the installation or removal of this product.
7701 Highway 41 N
Evansville, IN 47725
Phone: 812-867-2421
Fax: 812-867-1429
1-800-544-4445
email: custdiv@anchorinc.com
www.anchorinc.com
Check out our great installation video on our website!
EC5549
AlohaC 920
Advertisement
Summary of Contents for Anchor Aloha
- Page 1 Installation Instructions Aloha Cabana Please read all assembly / installation instructions before the installation or removal of this product. 7701 Highway 41 N Evansville, IN 47725 Phone: 812-867-2421 Fax: 812-867-1429 1-800-544-4445 email: custdiv@anchorinc.com www.anchorinc.com Check out our great installation video on our website!
-
Page 2: Safety Notes
Please read through this assembly manual completely before beginning your installation. Be sure the proper equipment and safety precautions are in place. We hope that you enjoy the design features of the Aloha Cabana. Be aware to avoid contact of frame sections with any overhead power lines near the site. - Page 3 Layout Using chalk or spray paint, mark center point of each base plate. o/o of base plates center/center of base plates...
- Page 4 Step 1 - Layout Boxes...
- Page 5 Step 2 - Layout Parts on Drop Cloth...
- Page 6 Step 3 - Layout Parts Identify and layout all components for assembly. Step 4 - Assemble Eaves • Insert eave tubes into corner weldments with the channel toward the ground. • Align holes. • Insert bolt from top. • Fasten using lock washer and acorn nut.
- Page 7 Step 5 - Assemble (2) Hips Important Note: The end of the hip tubes with the greater distance to the hole goes into the corner weldment. • Insert hip tubes with channel toward ground into corner weldments . • Align holes. •...
- Page 8 Step 7 - Assemble Ridge Weldment & 1 Hip • Insert hip tube with channel toward ground into corner weldment. • Do not try to align holes at this point. • Insert top of hip tube into ridge weld- ment. •...
- Page 9 Step 9 - Tighten Connections • Now that frame is assembled, go back to each connection and using a 5/8” ratchet and 7/32” allen wrench, tighten all connections. Step 10 - Place Fabric on Top of Frame Warning: Do not attempt to install fabric if wind speed is 10mph or more! •...
- Page 10 Step 12 - Raise Opposite 15’ Side • Raise the remaining 15’ side using a ladder. • While frame is raised, insert uprights into the corner weldments with cable bolt to outside. • Align holes. • Insert bolt. • Fasten using lock washer and acorn nut. •...
- Page 11 Step 13 - Mount Frame to Foundation • Move frame into position, center baseplates over original layout markings. • Check to be certain that frame is square, vertical and level. Frame must be secured to foundation. (4) 5/8” Diameter holes are provided in each base plate for this purpose.
-
Page 12: Installation
Base Plate Cover Installation (Optional purchase) • Slide the two parts of the cover together over the base plate. (Figure 1) • Starting at the side of the cover where the two parts come together, insert screws and loosely fasten cover to base plate. (Figure •... - Page 13 Retractable Drapes (Optional purchase) • Layout drapes to determine where each drape should hang. See tag at bottom corner to see size and right or left. • Using a ladder, feed tabs at top of drapes into channel at bottom of eave tube.
- Page 14 Fasten drapes together at corners with velcro and menax fasteners on outside of corner uprights. To keep drapes in open position, gather drapes together and wrap belt around drapes twice. Fasten belt with menax fastener. Note: There are small tabs at top and bottom of drapes at corners for tieing together with zip ties.
- Page 15 WARNING:...
