CubeTainer Stackable Tanks – Side Mount Pump Package
Assembly Instructions – 08/17/2018

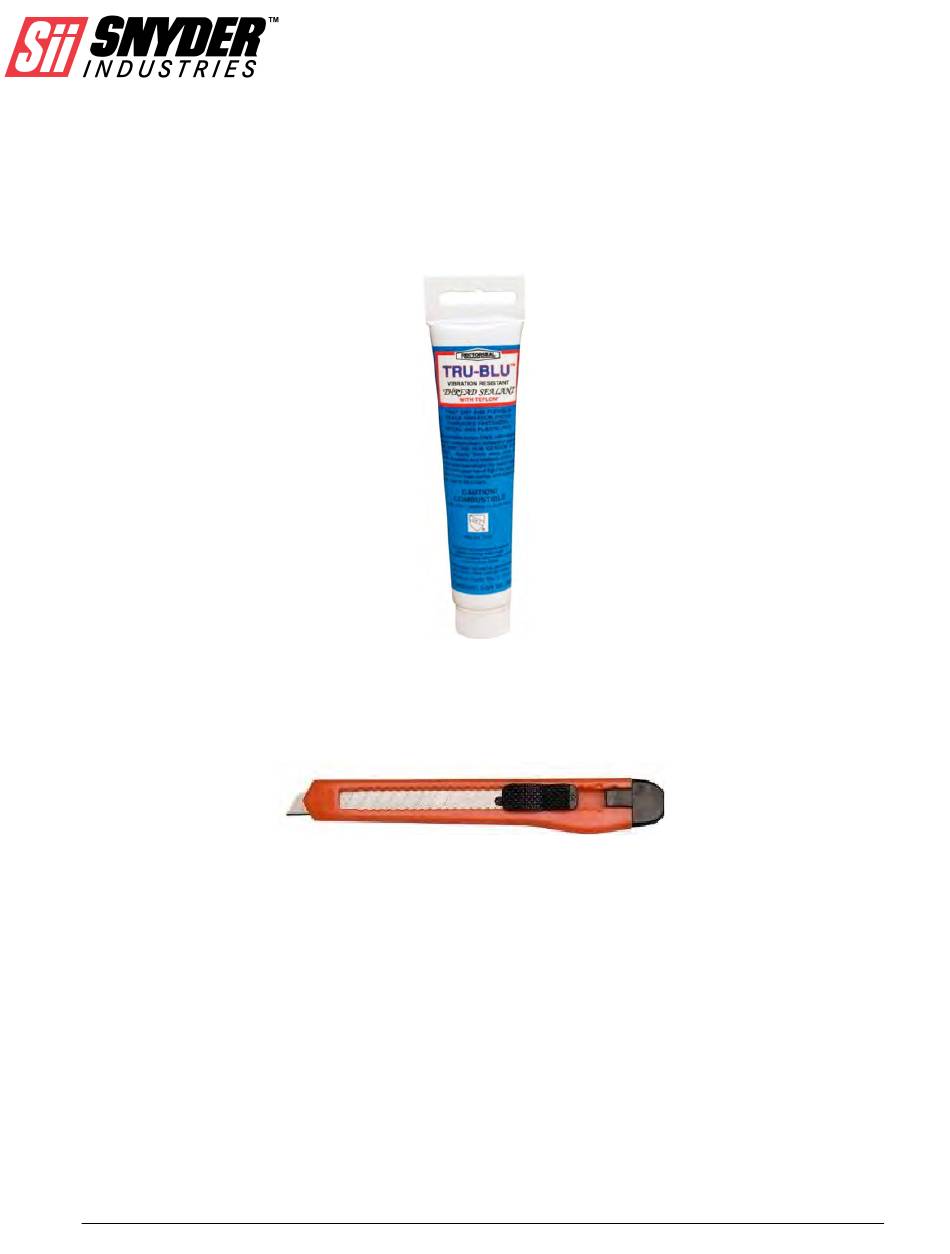

Apply the provided RectorSeal Tru-Blu pipe sealant to all NPT connections per the tube's instructions.
Use caution whenever working with sharp tools or components to prevent injury.
www.snydernet.com/products/industrial-tanks/petro-tanks/assembly-instructions
Snyder Industries · 6940 O Street, Suite 100 · Lincoln, NE 68510 · 888-422-8683 · 402-465-1220 Fax · www.snydernet.com
**Important**
**Warning**
For a digital copy of these instructions, please visit:
1
Advertisement
Summary of Contents for SII CubeTainer
- Page 1 CubeTainer Stackable Tanks – Side Mount Pump Package Assembly Instructions – 08/17/2018 **Important** Apply the provided RectorSeal Tru-Blu pipe sealant to all NPT connections per the tube’s instructions. **Warning** Use caution whenever working with sharp tools or components to prevent injury.
- Page 2 CubeTainer Stackable Tanks – Side Mount Pump Package 1. Screw the threaded end of each pipe leg into one of the couplers on the under-side of stand’s base. Channellock pliers may be used to tighten the legs. Snyder Industries · 6940 O Street, Suite 100 · Lincoln, NE 68510 · 888-422-8683 · 402-465-1220 Fax · www.snydernet.com...
- Page 3 CubeTainer Stackable Tanks – Side Mount Pump Package 2. Place the CubeTainer onto the newly assembled stand as shown. 3. Attach the provided ratchet strap as shown to prevent the tank from tipping. Snyder Industries · 6940 O Street, Suite 100 · Lincoln, NE 68510 · 888-422-8683 · 402-465-1220 Fax · www.snydernet.com...
- Page 4 CubeTainer Stackable Tanks – Side Mount Pump Package 4. Unbox the pump package components and gather the required tools. Snyder Industries · 6940 O Street, Suite 100 · Lincoln, NE 68510 · 888-422-8683 · 402-465-1220 Fax · www.snydernet.com...
- Page 5 CubeTainer Stackable Tanks – Side Mount Pump Package 5. Attach the tank bracket to the CubeTainer’s left side using the provided tank bracket hardware kit [34702275]. Leave the bolts somewhat loose until you have them all started and then fully tighten all bolts.
- Page 6 CubeTainer Stackable Tanks – Side Mount Pump Package 7. Attach the pump bracket to the CubeTainer’s left side using the provided pump bracket hardware kit [34702276]. 8. Reconfigure the hose reel using a hex key so that the hose will exit towards the tank’s front.
- Page 7 CubeTainer Stackable Tanks – Side Mount Pump Package 9. Attach the hose reel to the reel bracket using the provided reel hardware kit [34702278]. 10. Fasten the pump’s mounting nut onto the pump bracket. Snyder Industries · 6940 O Street, Suite 100 · Lincoln, NE 68510 · 888-422-8683 · 402-465-1220 Fax · www.snydernet.com...
- Page 8 CubeTainer Stackable Tanks – Side Mount Pump Package 11. Insert the pump through the mounting nut and tighten the compression nut as shown. 12. Connect the hose reel to the pump using the provided 1/2” hose, reducer bushing, and swivel 90°.
- Page 9 CubeTainer Stackable Tanks – Side Mount Pump Package 13. Pop out the protective plug from the bottom of the pump and attach the 3/4” NPT barbed nipple. 14. Remove the 1” NPT plug from the bottom left corner of the tank’s left side.
- Page 10 CubeTainer Stackable Tanks – Side Mount Pump Package 15. Attach the ball valve, barbed elbow, and 1” nipple to the insert while making sure to point the nipple backward towards the back of the tank. 16. Measure, cut, and install a section of 1” hose between the two barbed nipples using two hose clamps.
- Page 11 CubeTainer Stackable Tanks – Side Mount Pump Package 17. Install the air filter regulator with its gauge onto the pump using the brass nipple. (MAKE SURE THE ARROW ON THE FILTER REGULATOR IS POINTED IN THE DIRECTION OF THE AIR FLOW) 18.
- Page 12 CubeTainer Stackable Tanks – Side Mount Pump Package 19. Install the dispenser onto the hose reel then install handle bracket to top left front corner of tank. 20. Optional: If ordered, install a desiccant air breather [35902895] into the 1” NPT fitting on the top left corner of the tank’s left side.
- Page 13 CubeTainer Stackable Tanks – Side Mount Pump Package Snyder Industries · 6940 O Street, Suite 100 · Lincoln, NE 68510 · 888-422-8683 · 402-465-1220 Fax · www.snydernet.com...
