ER702 QR Code Reader Guide
This ER702 is used to scan QR code image which have strong identification capability,
and support automatic continuous scanning mode with fast and flexible scanning speed.
External View
Dimension (mm)
Connection Diagram
The ER702 must be connected to a controller to operate by Wiegand interface.
1
Advertisement
Table of Contents
Summary of Contents for Elid ER702

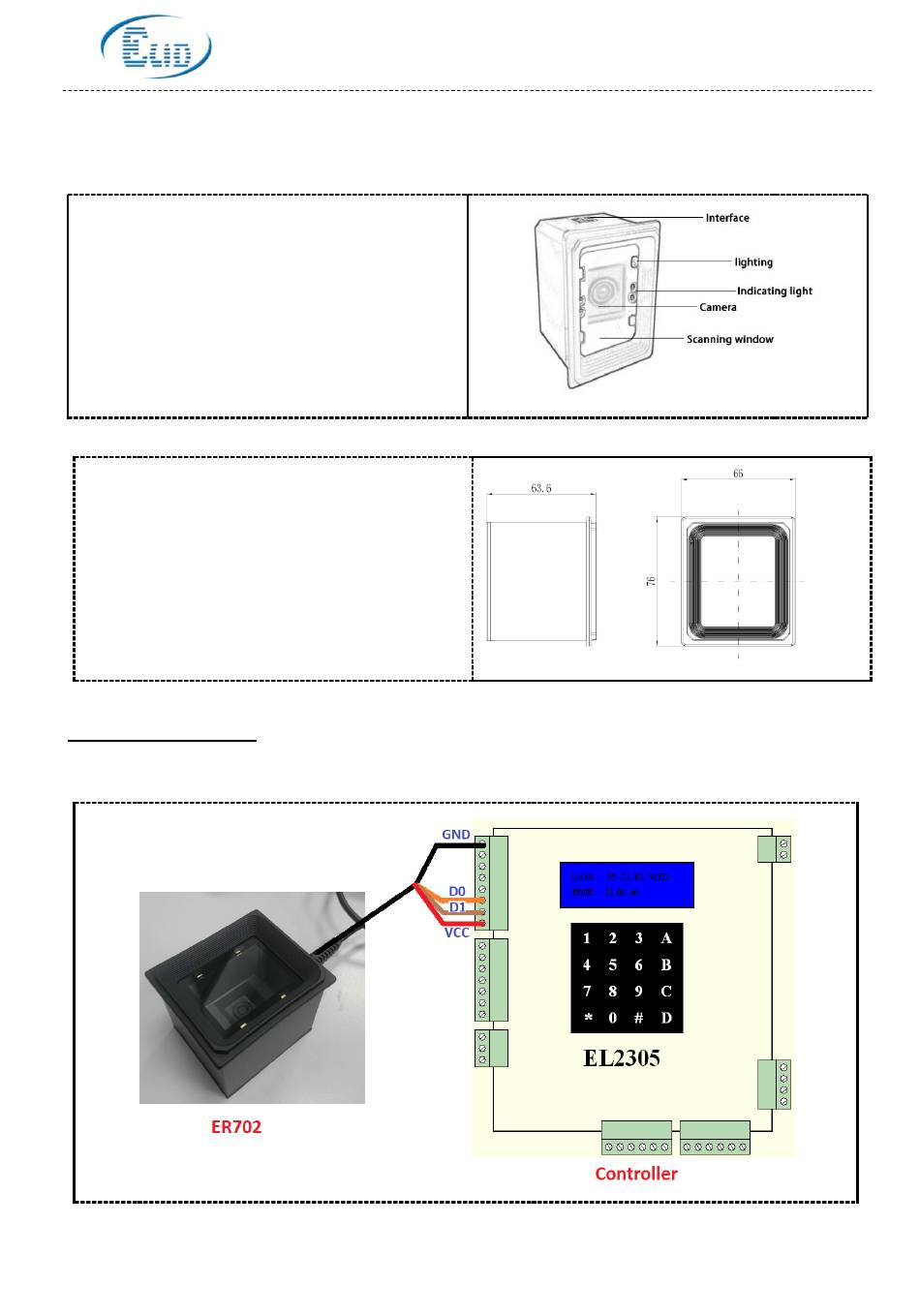

- Page 1 ER702 QR Code Reader Guide This ER702 is used to scan QR code image which have strong identification capability, and support automatic continuous scanning mode with fast and flexible scanning speed. External View Dimension (mm) Connection Diagram The ER702 must be connected to a controller to operate by Wiegand interface.
- Page 2 Shutdown：Remove the data cable which is connected with ER702 Standby：ER702 with automatic sleep standby function, if 30 minutes without work it will be in standby mode, but it will automatically start-up when barcode approach. Restart：If the ER702 crashes or doesn't respond, please switch it off and restart.
- Page 3 ER702 QR Code Reader Guide Getting started There are some settings need to be done before ER702 can operate. This ER702 is designed to change settings by reading some special barcode, which we will give you a detailed introduction and show you all the barcodes for the corresponding setting.
- Page 4 ER702 QR Code Reader Guide Baud Rate 57600 Baud Rate 115200 4. Enable QR code Enable QR Disable QR You may set to original setting ----- Restore Factory Defaults Restore Factory Defaults 6. Beeper volume setting Vo l u me lo w...
