- Page 1 OPERATION, SPARE PARTS AND SERVICE MANUAL MANUAL BLOCK SPLITTER (FBS40M MODEL) FAIRPORT CONSTRUCTION EQUIPMENT LIMITED Blagden Street Sheffield S2 5QS ENGLAND Tel: +44 (0) 114 276 7921 Fax: +44 (0) 114 272 0965 Email: sales@fairport.uk.com Web: www.fairport.uk.com...
- Page 2 CONTENTS PAGE DESCRIPTION SAFETY AND OPERATION OF THE BLOCK SPLITTER TECHNICAL DATA & UNDERSTANDING YOUR BLOCK SPLITTER WARRANTY CONDITIONS AND CLAIMS PROCEDURE REPAIRS AND ESTIMATES ENVIRONMENT PARTS LIST EC DECLARATION OF CONFORMITY...
-
Page 3: Safety And Operation Of The Block Splitter
SAFETY AND OPERATION OF THE BLOCK SPLITTER DESCRIPTION The FBS40M block splitter is designed to cut materials such as paving slabs, paving blocks and building blocks etc. with parallel faces. The maximum depth of slab that may be cut is 210mm, the minimum is 45mm and the maximum width is 400mm. - Page 4 Clear all debris from around blades after each cut. SAFETY DECALS TECHNICAL DATA MODEL FBS40M Length mm 992mm Width mm 265mm Height mm...

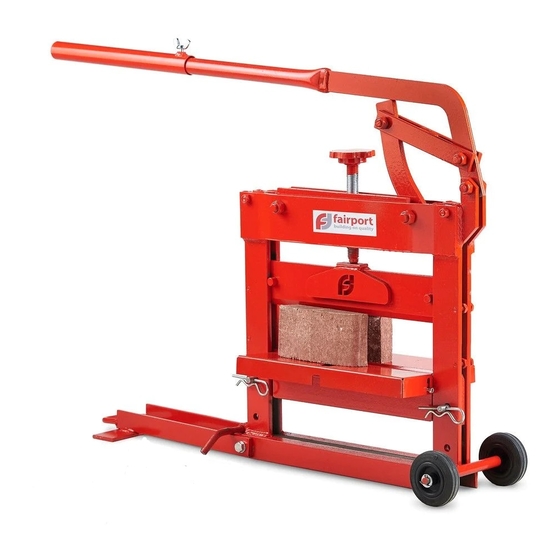

- Page 5 UNDERSTANDING YOUR BLOCK SPLITTER TELESCOPIC HANDLE HANDLE ADJUSTING SCREW UPPER BEAM LOWER BEAM CUTTING TABLES STABILIZING LEG 992mm 265mm...
-
Page 6: Warranty Conditions And Claims Procedure
WARRANTY CONDITIONS AND CLAMS PROCEDURE All products supplied by Fairport Construction Equipment Ltd (hereafter referred to as FCE) are warranted to be free of defects due to faulty materials or workmanship for a period of 12 months from the date of original despatch from FCE or 3 months for all spare parts used in repairs carried out by FCE or an authorised dealer or repairer. -
Page 7: Repairs And Estimates
REPAIRS AND ESTIMATES When returning a machine, or an assembly for repair, always include an Advice Note quoting model and serial number of the machine. A purchase order must also be forwarded to FCE giving detailed instructions. No repair work can be carried out unless covered by a purchase order. - Page 8 PARTS LIST ITEM PART NO. DESCRIPTION W172000 FRAME W172001 TABLE SUPPORT W172002 ADJUSTMENT BRACKET W172003 UPPER BEAM W172004 CAM BRACKET W172005 LINK BRACKET W172006 FOOT PLATE W172007 CUTTING TABLE W172008 LOWER BEAM W172010 ADJUSTMENT SCREW W172011 HANDLE W172015 HANDLE EXTENSION TUBE W172012 WHEEL W172203...
- Page 9 EC DECLARATION OF CONFORMITY Manufacturer's Name: Fairport Construction Equipment Ltd Manufacturer's Address: Blagden Street Sheffield South Yorkshire S2 5QS Declares that this product: FBS40M Description of Equipment: MANUAL BLOCK SPLITTER Serial Number ………………… Conforms to the following Directive: Machinery Directive: 2006/42/EC...
