Summary of Contents for Marble MS225

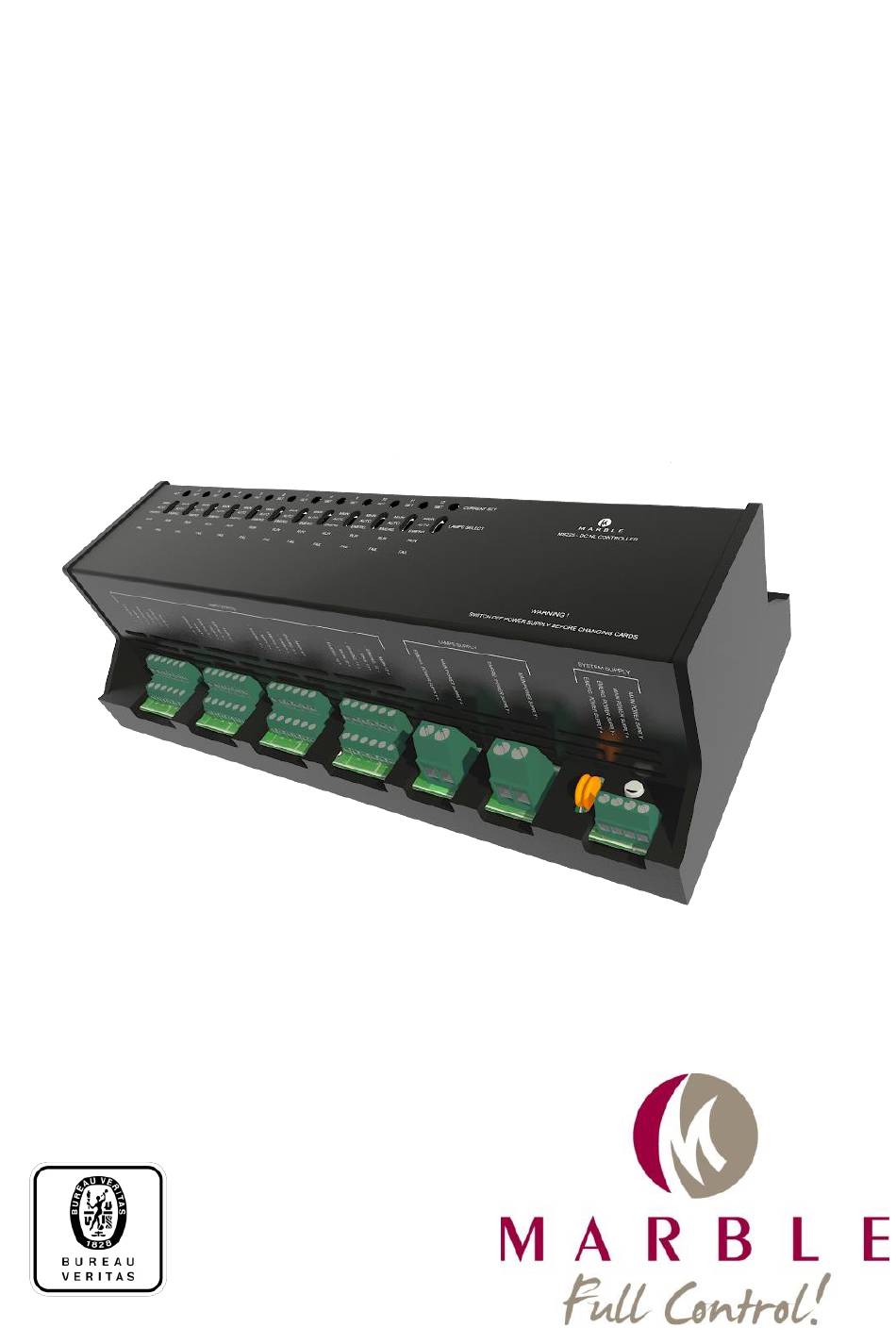

Page 1 Manual MS225 Navigation Light Controller www.marbleautomation.com...
Page 2  MS225  User Guide MS225  8 Insert cards ( standard delivery ) Disclaimer: Marble Automation will not be responsible for any damage or loss of profit resulting from the use of this equipment. MARBLE AUTOMATION BV © 2020...
Page 3: Table Of Contents
Insert card controls................... 14 Insert card alarms ..................14 Main board LED indications ..............15 6. MODBUS IMPLEMENTATION ............16 Holding register ..................16 Input register .................... 18 7. TROUBLE SHOOTING ..............22 8. MAINTENANCE ................22 MARBLE AUTOMATION BV © 2020...
Page 4: Description
The MS225 has a DIP switch to set the slave number or slave ID. The MS225 power is redundant for as well the navigation lights and the power supply. Failure of one of the power sources will be indicated and alarmed.
Page 5: Technical Specifications
2. Mechanical Installation Installing The MS225 is suitable for DIN rail mounting. Mount the MS225 on the DIN rail in a well ventilated space and connect the cables according the connection diagram. The MS225 should be mounted horizontally and upright to ensure proper ventilation.
Page 6: Electrical Installation
The main and emergency power supply for the controller itself is always 24VDC nominal. The power supply of the navigation lights depends on the type of controller, AC ( 230V ) or DC ( 24V). MARBLE AUTOMATION BV © 2020...
Page 7: Navigation Light Connections
Navigation light connections Connect the navigation lights as indicated. Inputs and communication connections The MS225 has one input for connection a push button for accepting alarms. There are communication connections for RS485 communication. The MS225 has serial connections for RS485 for connection to a Modbus RTU master panel...
Page 8: Alarms Relay Outputs
120 Ohm resistors, normally placed at the end of the line, connected parallel to A and B. In addition to that, a 120 Ohm resistor can also be placed at the start of the line. Do not mount communication cables next to cables that are connected to frequency drives. MARBLE AUTOMATION BV © 2020...
Page 9: Using Multiple Controllers
The VDR output sends 2 strings, an alarm string and a status string. The strings are sent on event and on every hour. The communication parameters are: 4800 baud, N,8,1.  Each controller must be separately connected to the VDR. MARBLE AUTOMATION BV © 2020...
Page 10 6. Communication failure to slave 1 7. Communication failure to slave 2 NNN, General alarms Left to right 1. Communication failure to slave 3 2. Spare 3. Spare Start checksum Constant Checksum [CR][LF] End of string Constant MARBLE AUTOMATION BV © 2020...
Page 11 Status of card 10 000, Status of card 11 000, Status of card 12 000, External inputs 3 bits Left to right Input 4 Input 3 Input 2 Start checksum Constant Checksum [CR][LF] End of string Constant MARBLE AUTOMATION BV © 2020...
Page 12: Commissioning
Remove the power supply before replacing the insert cards ! When a new card of the same type is installed there is no need for setting the lamp current again. This value is not stored on the card itself. MARBLE AUTOMATION BV © 2020...
Page 13: Control And Indication
MS225 5. Control and indication Modbus The MS225 is controlled by Modbus and the indications and alarms are also available via Modbus. Chapter 6 gives a detailed description of the Modbus addresses. Control via Modbus The holding register is used for switching and parameter setting.
Page 14: Insert Card Controls
LED off for a longer period  Sequence is repeated Nr of pulses Alarm General alarm Low current main lamp Low current emergency lamp High current main lamp High current emergency lamp Main lamp hours expired Emergency lamp hours expired MARBLE AUTOMATION BV © 2020...
Page 15: Main Board Led Indications
Alarm Internal communication failure Lamp power missing main Lamp power missing backup Logic power missing main Logic power missing backup Communication failure to slave 1 Communication failure to slave 2 Communication failure to slave 3 MARBLE AUTOMATION BV © 2020...
Page 16: Modbus Implementation
Run hours channel 2-12 Main Set point 0-500.000 125-148 Run hours channel 13-24 Main Set point 0-500.000 149-172 Run hours channel 25-36 Main Set point 0-500.000 173-196 Run hours channel 37-48 Main Set point 0-500.000 197-199 Reserved MARBLE AUTOMATION BV © 2020...
Page 17 Tolerance current settings Main 1 Default set to value >0 479-525 Tolerance current settings main 2-48 Nominal current settings Backup 1 527-573 Nominal current settings Backup 2-48 Tolerance current settings Backup 1 575-621 Tolerance current settings Backup 2-48 MARBLE AUTOMATION BV © 2020...
Page 18: Input Register
Bit 8 = alarm Bit 9 = not accepted Hours expired main lamp Bit 10 = alarm Bit 11 = not accepted Hours expired emerg. lamp Bit 12 = alarm Bit 13 = not accepted Reserved Bit 14-15 MARBLE AUTOMATION BV © 2020...
Page 19 Controller alarms/4 See 147 Comm/master alarms Comm to slave 1 failure Bit 0 = alarm ( true=active) Bit 1 = not accepted Bit 2 = accepted Comm to slave 2 failure Bit 3 = alarm MARBLE AUTOMATION BV © 2020...
Page 20 255-256 Burn hrs emerg. lamp ch.1 0-500.000 Burn hrs emerg. lamp ch.2- 257-278 0-500.000 Burn hrs emerg. lamp 279-302 0-500.000 ch.13-24 Burn hrs emerg. lamp 303-326 0-500.000 ch.25-36 Burn hrs emerg. lamp 327-350 0-500.000 ch.37-48 MARBLE AUTOMATION BV © 2020...
Page 21 SW version 2/1 459-460 SW version 2/2 461-462 SW version 2/3 463-464 SW version 3/1 465-466 SW version 3/2 467-468 SW version 3/3 469-470 SW version 4/1 471-472 SW version 4/2 473-474 SW version 4/3 MARBLE AUTOMATION BV © 2020...
Page 22: Trouble Shooting
No LED’s are on Power supply not connected Check if power supply is connected System fail alarm Error in processor Turn off the power supply for a few seconds 8. Maintenance The MS225 unit is maintenance free. MARBLE AUTOMATION BV © 2020...
