Concept2 B1 Operating Instructions Manual

Battery powered smoke system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
B1 Operating Instructions
Battery Powered Smoke System
ID: 17041

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Concept2 B1

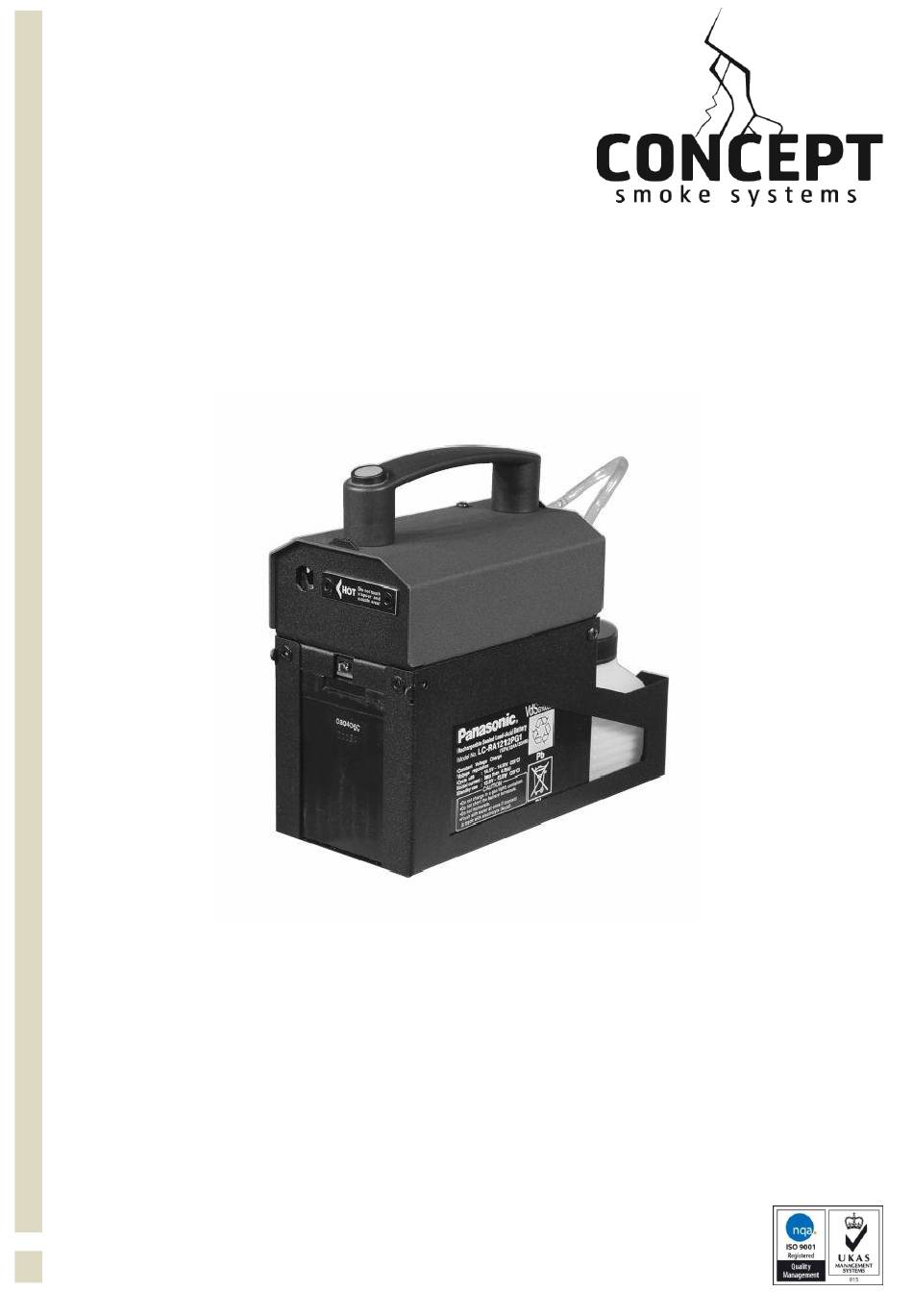

  • Page 1 B1 Operating Instructions Battery Powered Smoke System ID: 17041...

  • Page 2: Equipment Supplied

     A relative air humidity of less than 80% Having filled the reservoir with B1 smoke fluid and connecting a fully charged battery to the B1 you produce smoke by depressing and holding down the test button on the handle.
  • Page 3 Drawing Number: 17041 Issue: 1 By: AMD Date: 01.06.18 Approved: TAD Overview Concept Engineering / Smoke Systems Limited TEL: +44 (0)1628 825555 FAX: +44 (0)1628 826261 EMAIL: i n f o @ c o n c ep t - s m o k e. c o . u k WEB: www .

  • Page 4: Preparation / Installation

    Fully charge the B1 battery, see “The Charger – Operation”. Pour B1 Smoke Fluid into the fluid bottle and firmly lock the bottle. Plug the connecting spout of the fluid tubing into the quick connector of the fluid bottle (audible click). Check the fluid bottle and smoke fluid are clean, so that no dirt (fluff etc.) can be sucked in by the pump.

  • Page 5: Safety Notes

    Please do not use B1 Smoke Fluid if it looks blue or green. This can clog the vaporizer. NOTE: If the B1 will not be in use for a long period, please empty the fluid tank and pour the B1 Smoke Fluid back into the original fluid bottle despatched with the unit.

  • Page 6: Technical Data (Battery)

    The supplied battery is a maintenance free 12V lead-gel accumulator which is calibrated in the best possible way with the connected loads of the B1. It can be used in any attitude. The 12v battery is connected to the B1 via a SpeakOn NL4FX high current plug. When used correctly, the battery maintains its capacity for several years and / or several hundred charge/discharge cycles.
  • Page 7 Drawing Number: 17041 Issue: 1 By: AMD Date: 01.06.18 Approved: TAD The Charger An automatic charger for the 12V lead-gel battery is supplied. Charge the battery of the B1 with the SpeakOn connector to the B1 machine disconnected.  Connect the charger to a power socket (100-240V~/50Hz-60Hz).

  • Page 8: Warranty Conditions

    Drawing Number: 17041 Issue: 1 By: AMD Date: 01.06.18 Approved: TAD Warranty Conditions The B1 is guaranteed for 12 months against faulty parts or manufacture, provided it is used in accordance with these instructions. The B1 is a sealed unit and must be returned for service / maintenance to Concept.

  • Page 9: Accessories, Consumables

    Remote Operation Order Code: (B1-DMX, B1-TIMER, B1-RRC) The B1 DMX Module will allow you to operate the B1 via a 512 channel DMX control source. A clear digital display will indicate what channel the B1 is set for.
  • Page 10 B1 Ducting Adapter & Hose Order Code: (B1-ADAP, HOSE-NEO-32) This 32mm adapter is custom made to suit the B1 Smoke Machine. It can be used in conjunction with the 32mm Hose (see below) to precisely place the smoke where it is needed.
  • Page 11 Drawing Number: 17041 Issue: 1 By: AMD Date: 01.06.18 Approved: TAD NOTES: …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. …………………………………………………………………………………………. Concept Engineering / Smoke Systems Limited TEL: +44 (0)1628 825555 FAX: +44 (0)1628 826261 EMAIL: i n f o @ c o n c ep t - s m o k e.
  • Page 12 Drawing Number: 17041 Issue: 1 By: AMD Date: 01.06.18 Approved: TAD Concept Engineering / Smoke Systems Limited TEL: +44 (0)1628 825555 FAX: +44 (0)1628 826261 EMAIL: i n f o @ c o n c ep t - s m o k e. c o . u k WEB: www .
