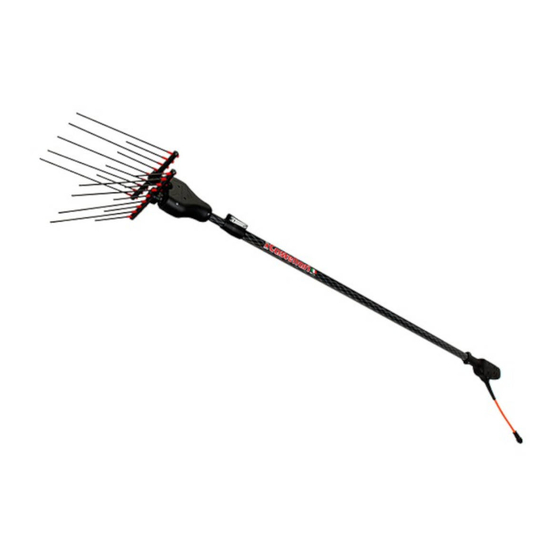

- Page 1 TORNADO CARBON V3 ELECTRIC RAKE USER MANUAL AND MAINTENANCE...
-
Page 2: Table Of Contents
TORNADO CARBON V3 index The language manual is available on the www.castellarisrl.com Use and maintenance manual: www.castellarisrl.com User and maintenance manual: www.castellarisrl.com ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ ΚΑΙ ΣΥΝΤΗΡΗΣΗΣ: www.castellarisrl.com DESCRIPTION OF THE GENERAL CHARACTERISTICS OF THE MACHINE ......3 Purpose of the manual ....................3 Machine identification .................... -
Page 3: Description Of The General Characteristics Of The Machine
TORNADO CARBON V3 1. DESCRIPTION OF THE GENERAL CHARACTERISTICS OF THE MACHINE 1.1 Purpose of the manual This manual collects the necessary instructions for a correct and safe use of electric rakes collect olives "Tornado Carbon C-L V3" also defined below as "machine", made by Castellari S.r.l., Imola (BO). -
Page 4: Subjects To Whom The Manual Is Addressed
TORNADO CARBON V3 1.4 Subjects to whom the manual is addressed This manual is the indispensable guide for all users who, in various ways, can use or take care of the machine in carrying out different tasks. Here are the possible... -
Page 5: Risks Arising From The Use Of The Machine
TORNADO CARBON V3 Electrical interruption device: Allows the immediate interruption of all functions of the machine in case of an anomaly of the same. The intervention of this protection involves the emergency stop of the machine. In order for it to be reactivated, you must reset the device that caused the shutdown (fuse) by placing the start button in the stop position before restoring. -
Page 6: Components
TORNADO CARBON V3 1.8 components 13-14 15-16 39 40 • • Castellari S.r.l. via Lasie 16/E IMOLA... - Page 7 TORNADO CARBON V3 TORNADO CARBON L/C V3 POS. SET CODE SET DESCRIPTION PACK ATK180 COMPLETE CARBON TELESCOPIC ROD 1.8-2.4 MT (Carbon V3) ATK230 COMPLETE CARBON TELESCOPIC ROD 2.3-3.3 MT (Carbon V3) TO900116C TORNADO FULL SHORT TRANSMISSION SET TO900116 TORNADO COMPLETE LONG TRANSMISSION SET ATK180S SHORT CARBON ROD SET Ø28 (Carbon V3)
- Page 8 TORNADO CARBON V3 • • Castellari S.r.l. via Lasie 16/E IMOLA...
- Page 9 TORNADO CARBON V3 TO700135 BEARING 6900-2Z GIVEN AM3 GIVEN AUTOBLOC. M3 TO900200 CHASSIS COMPLETE WITH GEARS TO800205 TRANSMISSION SHAFT SET VTCE 3X12 FAST TCEI M3x12 TO800220 RIGHT CYLINDRICAL CROWN OE300130 BEARING 625 ZZ TO800215 LEFT CYLINDRICAL CROWN TO800225 CYLINDRICAL PINION...
-
Page 10: Safety And Prevention
TORNADO CARBON V3 2. SAFETY AND PREVENTION It is very important to read this manual carefully in order to be able to minimize the risks due to a reckless or incorrect use of the machine covered by the manual. The user will... -
Page 11: Safety In Use And Maintenance
TORNADO CARBON V3 2.3. Safety in use and maintenance 2.3.1. Safety in use Before putting the machine into operation, make sure that all the safety is perfectly safe. The area in which the machine is used is to be considered a "Danger Zone", i.e. an area in the vicinity of which the presence of an exposed person poses a risk to the health and safety of that person. -
Page 12: Ecology And Pollution
TORNADO CARBON V3 2.4. Ecology and pollution 2.4.1. Waste management The use and maintenance of the machine generates waste products that must be disposed of in compliance with the laws in force in the country where the machine is used. The user of the machine is required to comply with any recommendations of the manufacturers regarding the use of the products for the normal operation, cleaning and maintenance of the machine. -
Page 14: Connection
TORNADO CARBON V3 3.3 connection The machine must be connected exclusively to a battery of 12 Volts well charged through the clamps present at the end of the supplied power cable. How to connect clamps: connect the RED CLAMP to the battery at the + SIGN... -
Page 15: Maintenance And Cleaning
TORNADO CARBON V3 4 MAINTENANCE AND CLEANING 4.1 Routine maintenance The long life of the machine and the lower operating cost depend on compliance with this standard. Periodic checks to be carried out: Every 80 hours of work it is advisable to lubricate with high adhesive grease the anti-rotation plugs on which the rotors work (n°... -
Page 16: Cleaning And Lubrication Of The Machine
TORNADO CARBON V3 4.3 Cleaning and lubrication of the machine The machine must be cleaned at the end of the season in order to avoid deposits of solid particles and dusts that can limit the efficiency of operation of the mechanical parts. -
Page 17: Exclusion From Warranty
6 DECLARATION OF CONFORMITY Directive 2006/42/EC of the European Parliament and of the Council. I signed Castellari Enrico, head of production Castellari S.r.l., " Scissor construction for agriculture", Via Lasie 16/E – 40026 IMOLA (BO) ITALIA declare under my sole responsibility that the electric rakes "Tornado Carbon C-L V3"... - Page 18 Castellari Srl guarantees its products against manufacturing defects for 1 year from the date of purchase. Submit/ship this coupon together with invoice/receipt in case of service request. Castellari Srl guarantees that its products are free from manufacturing defects for 1 year from the purchase date.
- Page 19 TORNADO CARBON V3 NOTE...
- Page 20 ® Via Lasie 16/E - 40026 IMOLA (Bo) Tel. +39 0542.43659 - +39 0542 628142 Fax +39 0542.41448 - +39 0542 626930 www.castellarisrl.com - info@castellarisrl.com...
