Summary of Contents for QNAP KoiBot

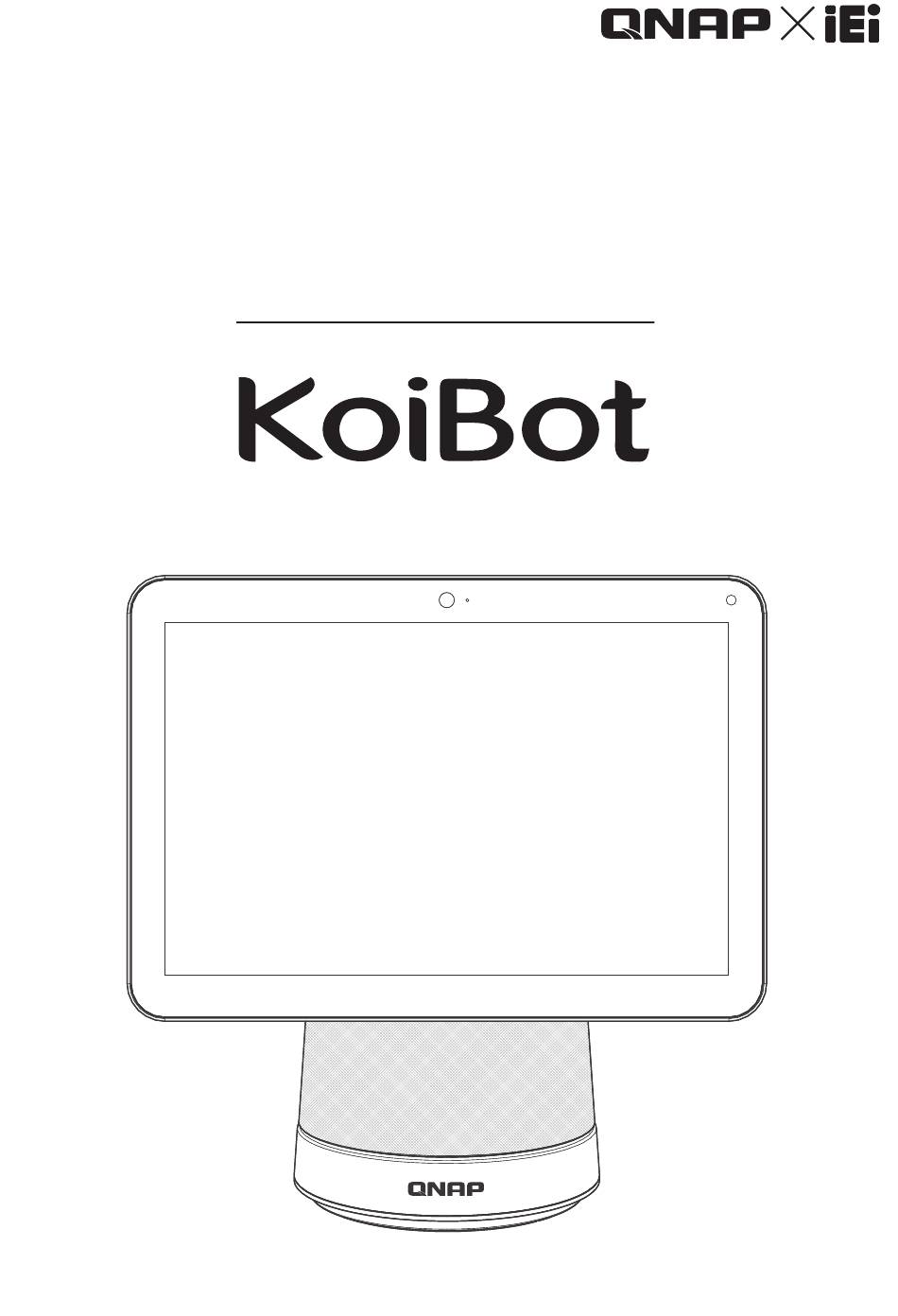

- Page 1 Quick Installation Guide KoiBot Quick Installation Guide...
-
Page 2: Front Side
Overview Front Side Component Component Camera Speakers 10-inch HD LCD LED indicator * Support Bluetooth V4.1 Rear Side Component Power input USB 3.0 ports KoiBot Quick Installation Guide... -
Page 3: Top Side
Overview Side Component MicroSD slot & 4G LTE (optional) USB 3.0 type-C port (HDMI output available with USB Type C to HDMI cable) Top Side Component Component Volume indicator Digital microphone Power button Camera cover switch KoiBot Quick Installation Guide... - Page 4 Setting up KoiBot Connect the power adapter to KoiBot and to an electrical outlet. Connect to a network using one of the following methods. Method Action Connect an Ethernet cable to KoiBot. Ethernet （USB to Etherent adapter is needed) Wi-Fi Con gure the Wi-Fi network settings in Step 8.
- Page 5 Setting up KoiBot Tap Start. Select a language. KoiBot Quick Installation Guide...
- Page 6 Setting up KoiBot Con gure the network settings. Method Action KoiBot automatically connects to a network and con gures the required settings when an Ethernet cable is inserted. Ethernet Proceed to the next step. a. Tap Wi-Fi. b. Select a Wi-Fi network.
- Page 7 KoiBot displays the KoiCode and its QR code. KoiBot Quick Installation Guide...
- Page 8 Powering off or Restarting KoiBot Press and hold the power button until KoiBot displays a menu. Perform any of the following actions. • Tap Power off. • Tap Reboot . KoiBot Quick Installation Guide...
- Page 9 • Open <Application Name>. • Run <Application Name>. Adjust the volume • Turn up the volume. • Volume up. • Turn down the volume. • Volume down. * For other languages, please refer to the official website. KoiBot Quick Installation Guide...
-
Page 10: Play Music
• Play <Music Title> from YouTube. Note: Some services may require a subscription. Play a video from YouTube • Play <Video Title> from YouTube. Stop playing music • Stop music. * For other languages, please refer to the official website. KoiBot Quick Installation Guide... -
Page 11: Check The Weather
• What’s the weather like in <City Name>? • How’s the weather in <City Name>? Translate a phrase • Translate <Phrase> to <Language>. • How do you say <Phrase> in <Language>? * For other languages, please refer to the official website. KoiBot Quick Installation Guide... - Page 12 "QNAP"). No license, express or implied, by estoppels or otherwise, to any intellectual property rights is granted by this document. Except as provided in QNAP's terms and conditions of sale for such products, QNAP assumes no liability whatsoever, and QNAP disclaims any express or implied warranty, relating to sale and/or use of QNAP products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other...
- Page 13 款與條件另有規定外，QNAP 不承擔任何責任，且 QNAP 免除任何與其產品銷售及 或使用有關的明示或默示之保證， 包括符合特定用途、商業適售性的責任與保固，以及不侵害任何專利、版權或其他智慧財產權之行為。 QNAP 產品不適合作為醫療、救援、維生、關鍵控制、安全系統，或核能設備用途。 無論使用產品、配套軟體或文件所造成之直接、間接、特殊、意外或衍生性損害，QNAP Systems,Inc.（QNAP）提出之 賠償將不會超過消費者購買 QNAP 產品付出之金額。QNAP 對其產品、產品內容、文件用途、以及所有附加軟體不作任 何明示、暗示或法定的保證或陳述，並且無需承擔產品之品質、商業適售性或符合任何特定用途之責任。QNAP 保留修 改或更新產品、軟體或文件之權利，無需事先通知。 若要將產品退回或進行維修，請將貨品妥善包裝確保運送無誤。貨品運送期間未妥善包裝而造成任何損壞，QNAP 一概 不予負責。 本公司保留變更產品功能與規格的權利，如有變更，恕不另行通知。本文資訊如有變更，恕不另行通知。 QNAP 和 QNAP 標誌是 QNAP Systems, Inc. 的商標。 所有本文提及的其他品牌和產品名稱均為其各自擁有人的商標。 另外， 或 ™ 符號。 本文省略 ® 低功率電波輻射性電機管理辦法 第十二條：經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變 更原設計之特性及功能。 第十四條：低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至 無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、 科學及醫療用電波輻射性電機設備之干擾。...
-
Page 14: Speci Cation
Volume control Touch panel on top AC Input: 100-240V AC, 50/60Hz Power DC Output: 12V@3.34A Operating Temp. 0°C ~ 40°C Dimension (W x H x D) 248.2 mm x 261.4 mm x 149 mm Weight 2452 g KoiBot Quick Installation Guide... - Page 15 注意 ! 本產品使用過度恐傷害視力： (1) 使用 30 分鐘請休息 10 分鐘 (2) 未滿 2 歲幼兒不看螢幕，2 歲以上每天看螢幕不要超過 1 小時 KoiBot Quick Installation Guide...
- Page 16 According to the requirement of the WEEE legislation the following user information is provided to customers for all branded QNAP Electronics products subject to the WEEE directive. This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste.
- Page 17 この機器が、 2.4GH ｚ周波数帯（ 2400 から 2497MHz ）と 5GH ｚ周波数帯（ 4900 から 5845MH ｚ）を使用します。 ＜ Bluetooth ＞ この機器が、 2.4GH ｚ周波数帯（ 2400 から 2483.5MH ｚ）を使用します。 ＜ NFC ＞ この機器が、 13.56MH ｚ周波数を使用します。 5GHz 帯の無線 LAN は、電波法の規制により、屋外で使用できません。 この機器の使用周波数帯では、電子レンジ等の産業・科学・医療用機器のほか工場の製造ライン等で 使用されてい る移動体識別用の構内無線局（免許を要する無線局）および特定小電力無線局（免許を 要しない無線局）が運用さ れています。 KoiBot Quick Installation Guide...
- Page 18 KoiBot Quick Installation Guide...
- Page 19 KoiBot Quick Installation Guide...
- Page 20 3F, No. 22, Zhongxing Rd., Xizhi Dist., 221 新北市汐止區中興路 22 號 3 樓 New Taipei City 221, Taiwan 電話: +886-2-2641-2000 TEL: +886-2-2641-2000 傳真: +886-2-2641-0555 FAX: +886-2-2641-0555 信箱: qnapsales@qnap.com Sales Contact: qnapsales@qnap.com www.qnap.com www.qnap.com © 2019. QNAP Systems, Inc. All Rights Reserved. KoiBot Quick Installation Guide...
