Summary of Contents for Etalex E Series

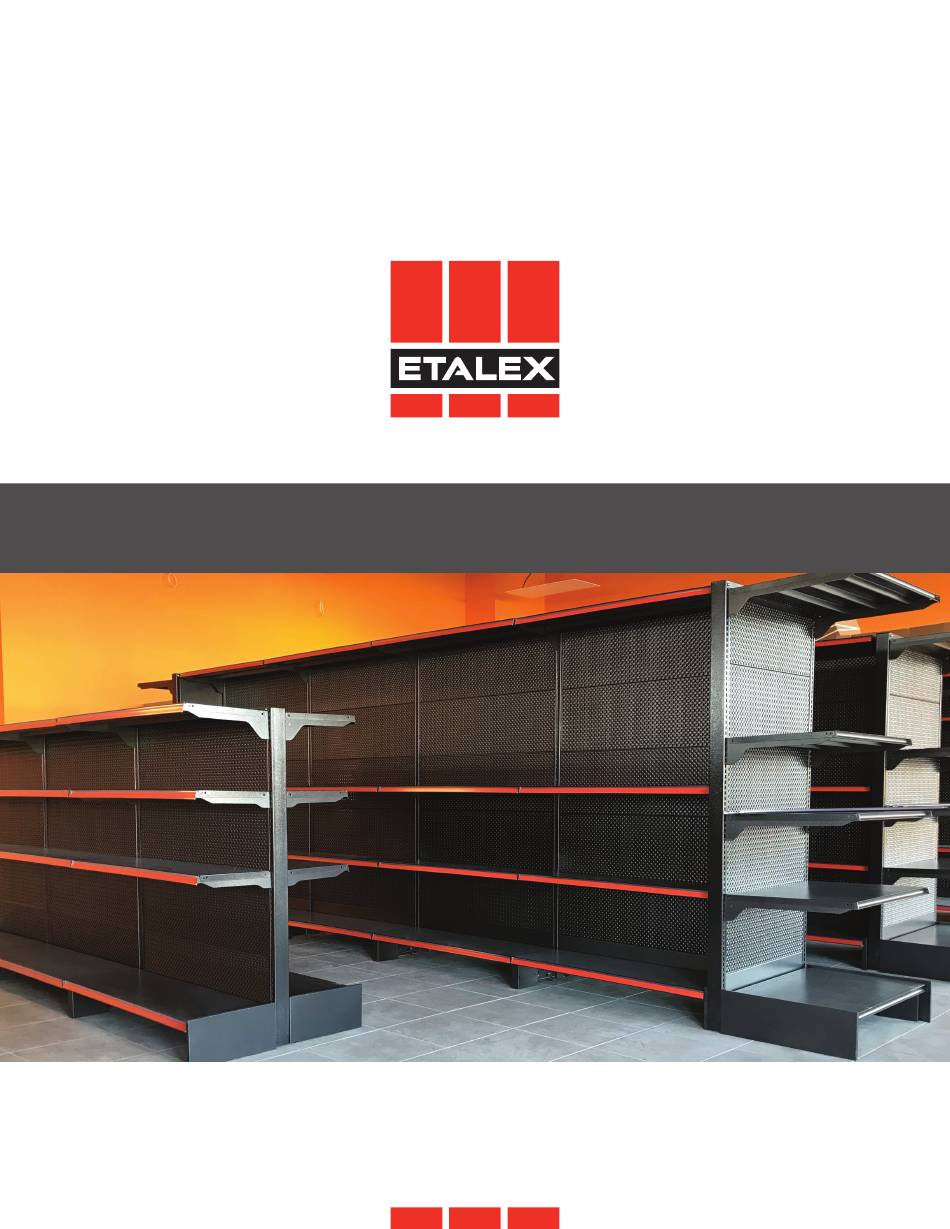

- Page 1 E SERIES INSTALLATION MANUAL...
-
Page 2: Technical Specifications
Installation / E Series ASSEMBLAGE E SE R I E S Highly practical and robust, the E Series has been designed to shine a long time. With its unique post and solid or perforated metal backs, this model provides added structural strength. Our E Series, renowed for its lasting durability, can be moved without being completely emptied. -
Page 3: Exploded View
Installation / E Series COMPONENTS EXPLODED VIEW GONDOLA PART LIST ITEM DESCRIPTION HD END POST (UPRIGHT) BRACKET BRACKET SHELF SHELF LEFT SHOE COVER RIGHT SHOE COVER KICK PLATE TOP CAP PLAIN METAL BACK 7 1/4“ H PERFORATED METAL BACK 14 1/2“ H... - Page 4 Installation / E Series ASSEMBLY ASSEMBLY TRACE A CHALK LINE ON THE FLOOR FOR DESIRED LOCATION OF GONDOLA. FIRST, SLIDE IN THE 7 1/4“ H METAL BACK FOLLOWED BY THE 14 1/2“ H METAL BACK. LAY DOWN THE HD END POSTS UPRIGHTS AND THE KICK PLATES ALONG THE CHALK LINE.
- Page 5 Installation / E Series ASSEMBLY ASSEMBLY IF THE S TRUCTURE IS L AY ING DOW N ON THE FLOOR, S TA ND UP THE A S SEMBLY. WALL ANCHOR BAR LE V EL THE UNIT HORIZONTA LY, BY A DJUS TING THE LE V ELERS IN THE FRONT...
- Page 6 P O UND IN CH I S A ME A S UR E O F T HE S HE L F LO A D S A C T IN G AT A D I S TA N CE F R O M Do not combine Etalex produc ts with non Etalex produc ts.
- Page 7 W W W.E TA L E X.CA CONTAC T US AN JOU PL ANT 8501, Jarry Street East, Montreal, QC H1J 1H7 514 351-2000 TF 1 800 351-3125 SAINT-BRUNO PL ANT 1299, Marie-Victorin, St-Bruno, QC J3V 6B7 450 653-1299 TF 1 888 224-BONI FACEBOOK/E TA LE X LINKEDIN/E TA LE X YOUTUBE/E TA LE X...
