Summary of Contents for Mechatron DPG-2

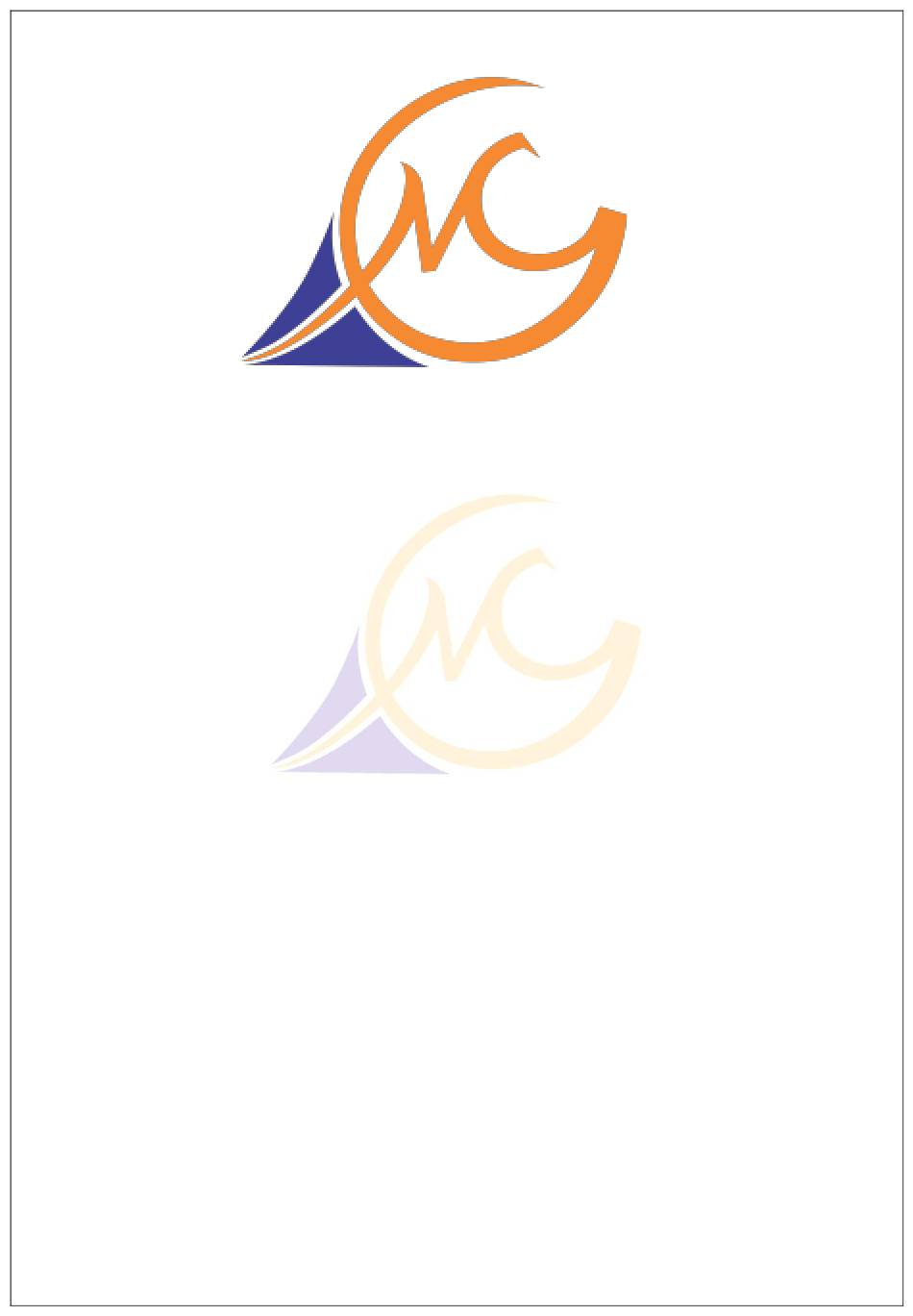

- Page 1 USER MANUAL Digital pressure Gauge MECHATRON CALIBRATION AND INSTRUMENT 19/37, 2 Main Road, Sabari Nagar, Mughalivakkam, Chennai - 600116, Tamilnadu, India. Phone : 9940060420 / 9962060420 Mail : info@mechatroncalibration.com Website : www.mechatroncalibration.com...
-
Page 2: Digital Pressure Gauge
DIGITAL PRESSURE GAUGE DPG-2/10/20/40/70/200/400/700/1000... - Page 3 INTRODUCTION The Digital Pressure Gauge Series is a portable and adaptable product use to test and calibration of pressure gauges, vacuum gauges, Pressure/Vacuum Transmitters and Pressure/ Vacuum switches etc. STANDARD ACCESSORIES • User Manual • Batteries • Traceable Calibration certificate •...
-
Page 4: Display Backlight

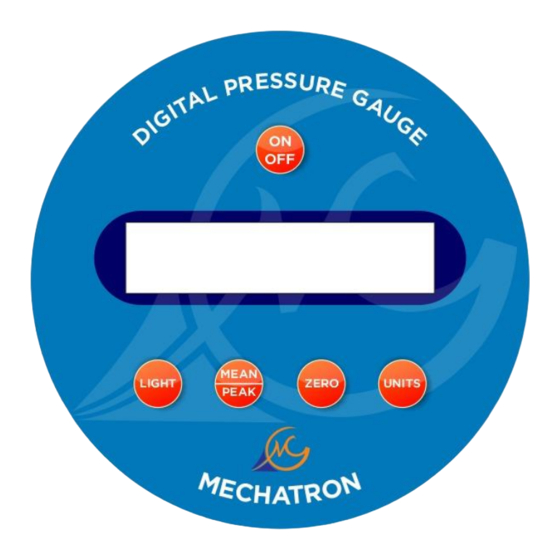

DISPLAY The digital pressure Gauge display contains 2 Line 0.00 0.02 -0.00 1. Pressure indication & its corresponding unit 2. Mean/Peak measurement SUPPLY/CHANGING BATTERIES The product is supplied along with four 1.5V ICE LR6 batteries (AA). To avoid false readings , change the same type of batteries or equivalent as soon as possible if “LOW BATTERY”... -
Page 5: General Specification
WARNING • In general, End connection of the product of the product is ¼ “BSP external thread .Screw the product into corresponding thread by hand, if desired, tighten by corresponding spanner/wrench. • The product is maintenance-free. if desired, the housing of the product can be cleaned using a damp cloth and non-aggressive cleaning solutions and a soft brush when product is in switched off condition. - Page 6 DPG SERIES Model Range Resolution Pressure Units bar, Kg/cm , MPa, mH O, atm, psi, inHg, DPG 0.2 0 to 0.2 bar 0.0001 bar O, kPa, inH , mmHg, mbar, cmH DPG 2 -1 to 2 bar 0.0001 bar bar, Kg/cm , MPa, mH O, atm, psi, inHg, DPG 10...
