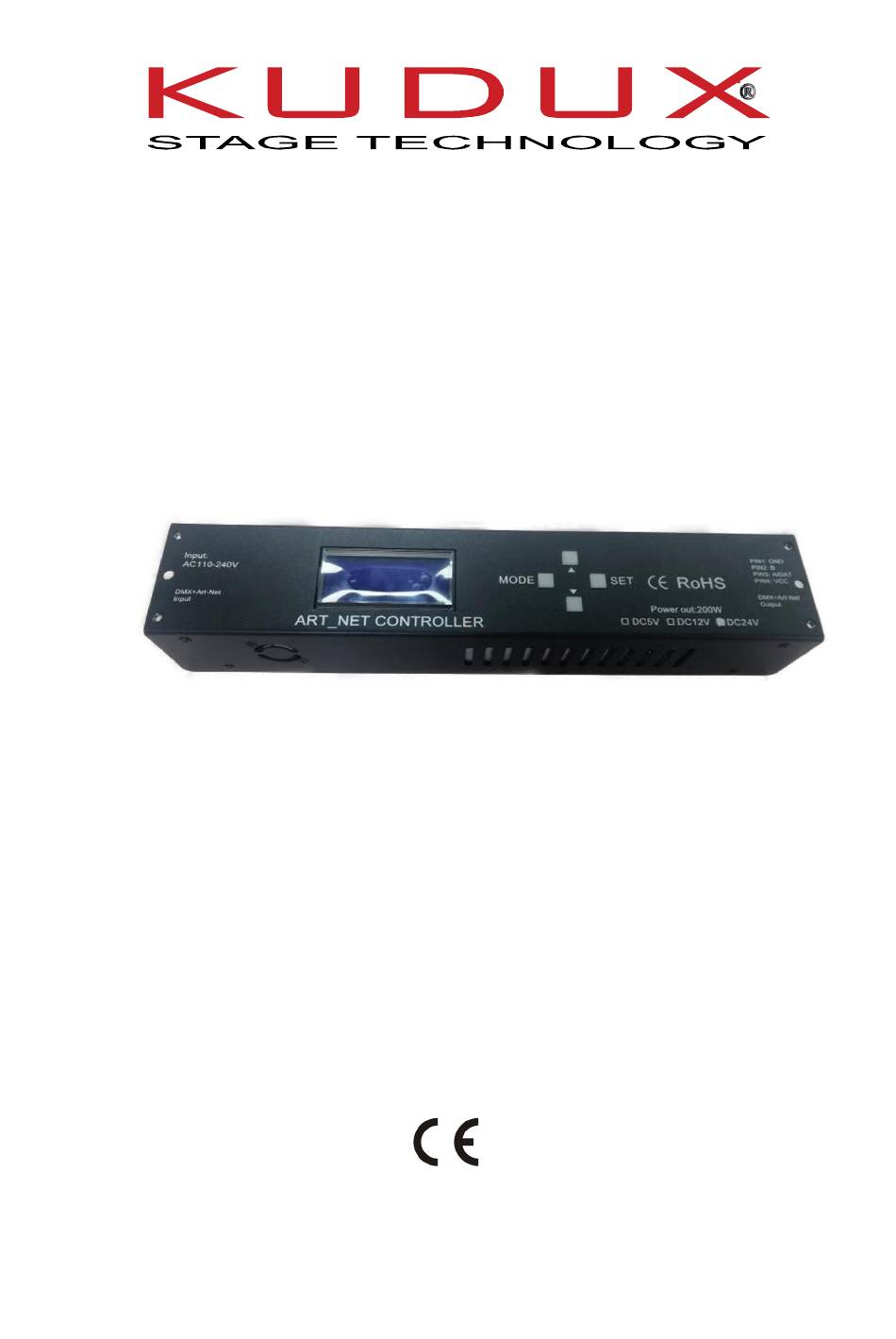

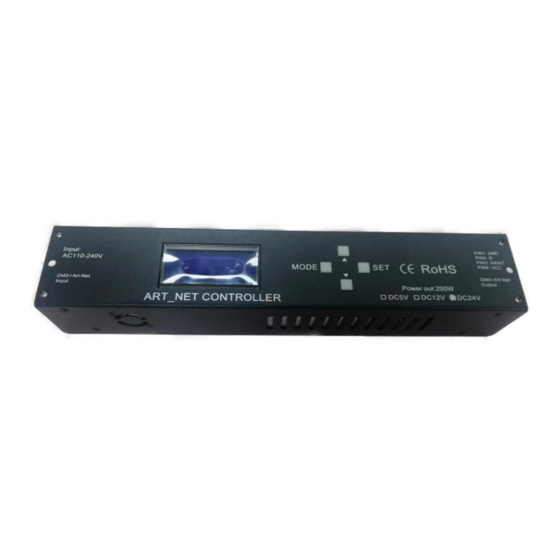

- Page 1 ARTNET CONTROLLER User manual Please read the manual before installing and using this lighting Keep it for future reference...
- Page 2 If you have any remarks or comments, please share them with us. We will be grateful for any suggestions that will help us make products that are even better and devices that satisfy your needs. R&D Team WWW.KUDUX.COM...
-
Page 3: Table Of Contents
IC Select Setting mode： ....................7 5.7. Pixel Setting mode： ..................... 8 5.8. LED/Pixel Setting mode： ..................... 8 5.9. Channels Setting mode： ....................8 5.10. SD Record Setting mode： ..................9 Madrix software configuration..................10 Contact: ........................... 11 WWW.KUDUX.COM... -
Page 4: Statement
It is widely used in LED lattice and stage lighting control network which needs a lot of DMX512 data. 3. Characteristic description： Input: AC110—220V Output: DC5V，DC12V，DC24V Dimensional: Length: 320m Wide:62mm High:50mm Notice：All sizes are in mm, In the absence of a clear label, the tolerances are±0.15mm WWW.KUDUX.COM... -
Page 5: Product Advantages
5. Artnet Controller usage: 5.1. Display screen display after connecting power supply • The first column shows the indication signal, the signal moves ">" when the signal is normal, and the NO Signal flashes when the signal is abnormal. WWW.KUDUX.COM... -
Page 6: Ip Address Setting Mode
• The second column Output DMX is shown as the control IC type. • The third column shows 192 171.001.010 as the controller IP address • The fourth column shows www.kudux.com as the company's Web site. 5.2. IP Address Setting mode：... -
Page 7: Dmx Addr Setting Mode
Click the MODE button to enter the page, press DOWM or UP to select Play Set 5.6. IC Select Setting mode： Click the MODE button to enter the page, press DOWM or UP to select IC Select Can be set to select IC：CL05，DMX，WS2811，UCS1903，GS8208,，UCS9812. WWW.KUDUX.COM... -
Page 8: Pixel Setting Mode
Can set one lamp one pixel point, two lights one pixel point, three lights one pixel point, four lights one pixel point. 5.9. Channels Setting mode： Click the MODE button to enter the page, press DOWM or UP to select Channels. WWW.KUDUX.COM... -
Page 9: Sd Record Setting Mode
Play: looks at the effect of the current recording. When the setting is complete, press the button to exit the setting area and return to the main menu. WWW.KUDUX.COM... -
Page 10: Madrix Software Configuration
Open the MADRIX software, click Devices Manager in preferences to select the Art-Net option, and click the icon Search for the device, as shown in the figure to search for a controller called CLEN-Artnet. Select the DMX device option, select all output ports, select enable and apply. WWW.KUDUX.COM... -
Page 11: Contact
