Summary of Contents for SJÖBLOMS 080-3900

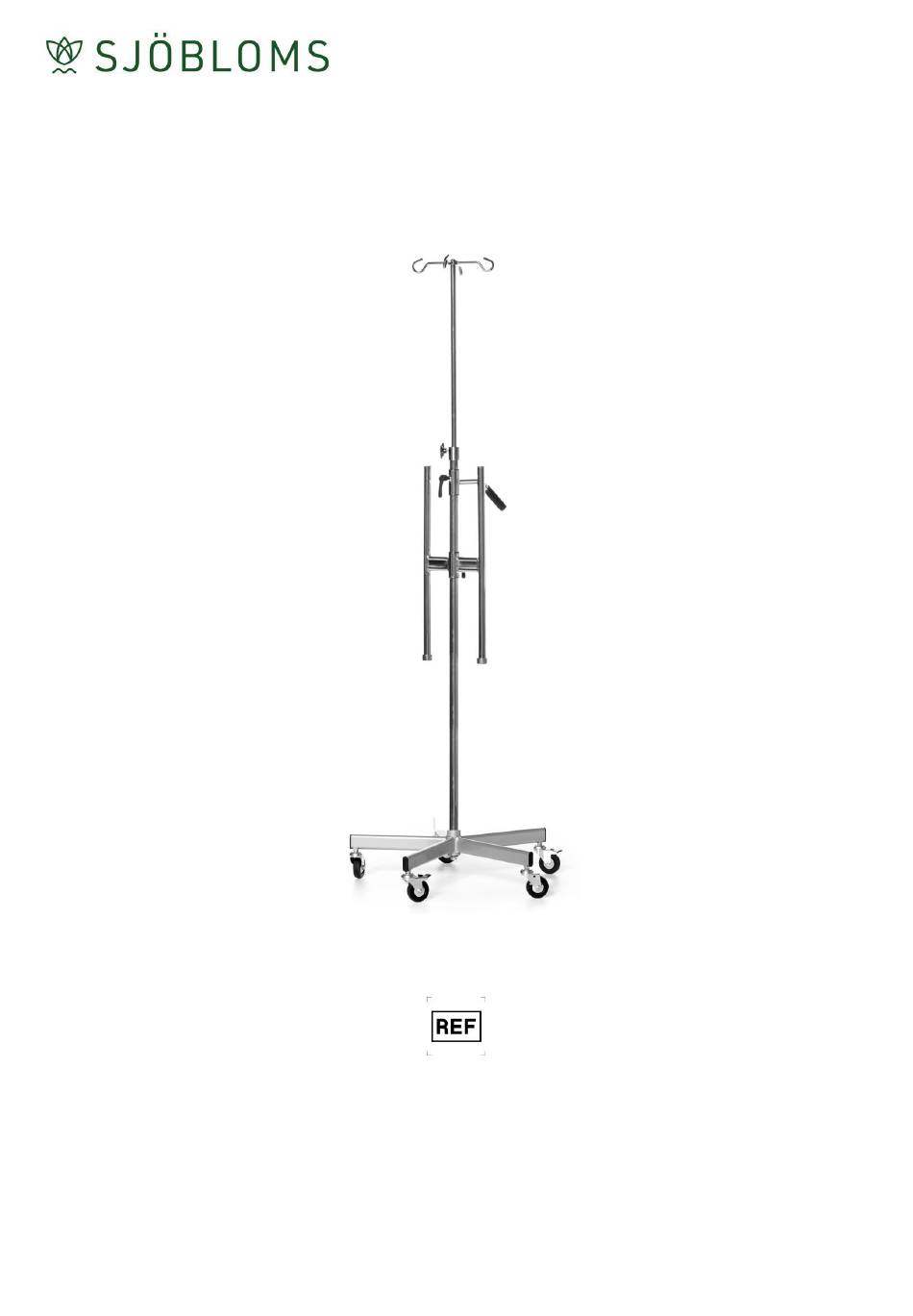

- Page 1 USER MANUAL IV STAND HEAVY-DUTY MODELS For models: 080-3900, 080-3910, 080-3920, 080-3930 NOTE! The operator must read the user manual carefully BEFORE the product is used, to avoid unnecessary risks to the patient and operator. Ver 200318...
-
Page 2: Table Of Contents
IV stand heavy-duty models Table of contents TABLE OF CONTENTS Foreword Warranty Important information 1. Functional description General description 2. Operation Assembly Max load 3. Maintenance & Cleaning Routine examinations Cleaning 4. Technical specification Dimensions Labels 5. EU-Declaration of Conformity 6. -
Page 3: Foreword
IV stand heavy-duty models Foreword, warranty, important info FOREWORD Welcome as the owner of a product manufactured by Sjöbloms Sjukvårdsutrustning AB. We hope that you will be pleased and satisfied with our quality product. If a problem should arise with this or any of our products, you are always welcome to contact us, and our service department will assist you with the expertise needed to solve the problem. -
Page 4: Functional Description
IV stand heavy-duty models Max load 1. FUNCTIONAL DESCRIPTION This product is meant for professional use in health care, for examination of the patient. It is designed to be a functional and user-friendly tool for the operator and patient. General description IV stand heavy-duty model, all-welded steel tubes, powder-coated steel foot, 75 mm castors, 2 with brake. -
Page 5: Operation
IV stand heavy-duty models EU Declaration of conformity 2. OPERATION 2.1 Assembly If the stand is delivered with the hooks non-mounted, un-screw the screw as shown. Remove the hooks from under the foot where it is placed during transportation. Mount the hooks on the tube, tighten well. Handle and pump holders (both optional) is mounted from below before the foot is mounted. -
Page 6: Max Load
IV stand heavy-duty models Max load 2.2 Max load Max load: Pumps: Max 25 kg, evenly distributed. Bags: The top and its 4 hooks may be loaded with max 10 kg evenly distributed. Max 4 kg on a single hook. SJÖBLOMS +46 660 10580 info@sjobloms.com... -
Page 7: Maintenance & Cleaning
IV stand heavy-duty models EU Declaration of conformity 3. MAINTENANCE AND CLEANING 3.1 Routine controls Routine controls is recommended every , lubricate if needed. 6 months Important! Failure to perform the following routine can cause the patient and/or operator to be exposed to unnecessary risks and the couch may have a reduced life expectancy. -
Page 8: Technical Specification
IV stand heavy-duty models Dimensions and labels 4. TECHNICAL SPECIFICATIONS 4.1 Dimensions Minimal height: 145 cm Max height: 240 cm Weight: Ca 15 kg SJÖBLOMS +46 660 10580 info@sjobloms.com... -
Page 9: Labels
IV stand heavy-duty models Dimensions and labels 4.2 Labels CE label contains date, order number, serial number and our contact info. SJÖBLOMS +46 660 10580 info@sjobloms.com... -
Page 10: Eu-Declaration Of Conformity
Art no: 080-3930 Product registration number: 144263 Art no: 080-3920 Product registration number: 144264 Art no: 080-3910 Product registration number: 144265 Art no: 080-3900 Product registration number: 144266 Manufacturer Sjöbloms Sjukvårdsutrustning AB Myrängsvägen 8 S-891 50 ÖRNSKÖLDSVIK, SWEDEN Sjöbloms Sjukvårdsutrustning AB ensures that the above products are in... - Page 11 IV stand heavy-duty models Contact info 6. CONTACT INFORMATION Sjöbloms sjukvårdsutrustning AB Myrängsvägen 8 891 50 Örnsköldsvik Sweden Tel: +46 660 105 80 Fax: +46 660 180 00 E-mail: info@sjobloms.com Web: www.sjobloms.com SJÖBLOMS +46 660 10580 info@sjobloms.com...
