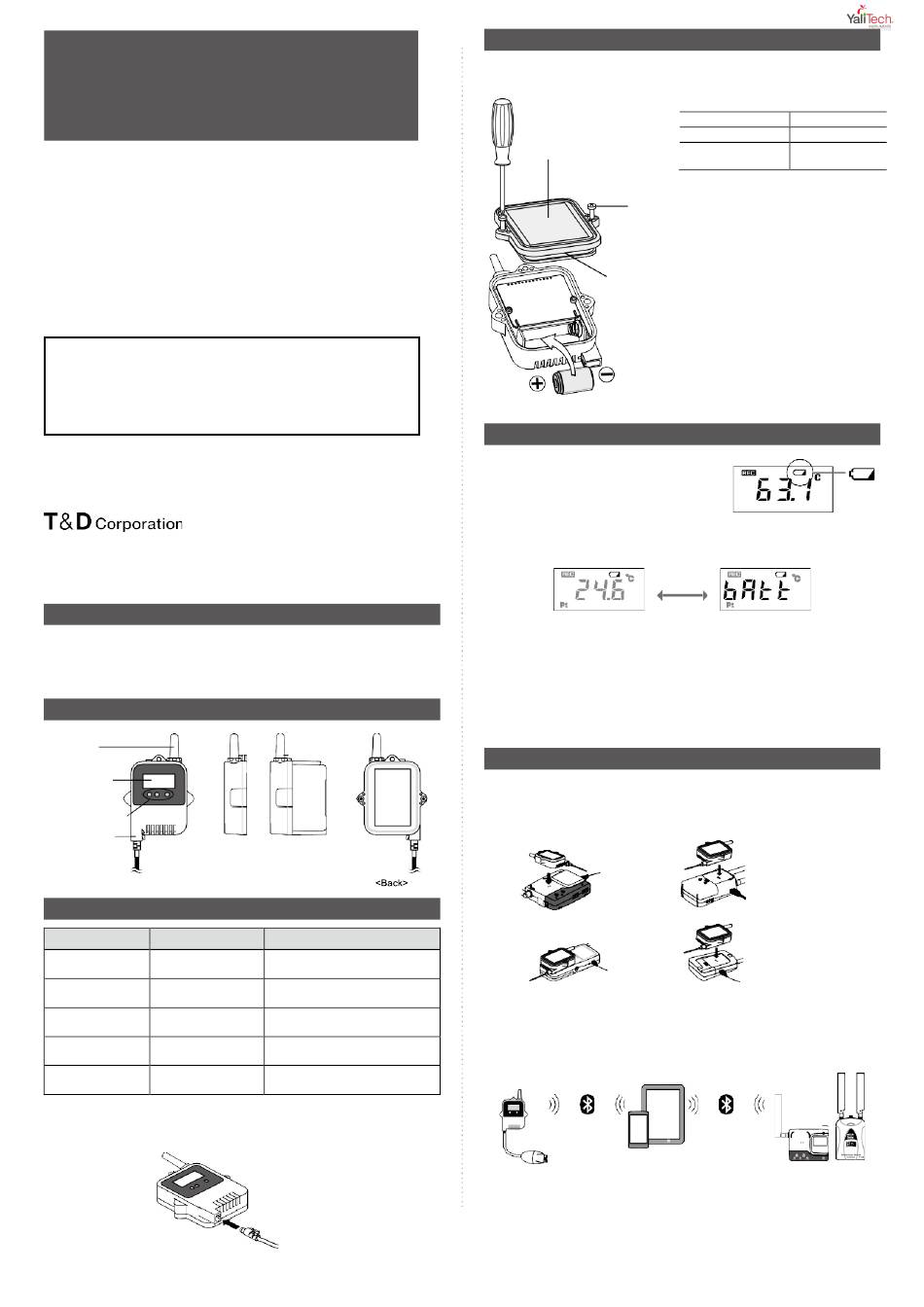

RTR505B User's Manual
Thank you for purchasing our product.
To ensure safe and proper operation, please read this guide thor-
oughly before use.
Overview
RTR505B is a data logger designed to measure and record
different items depending on the input module to be con-
nected: temperature (Thermocouple, Pt), analog signal
(4-20mA, DC voltage), and pulse.
Recorded data is then automatically collected by the Base Unit via
wireless communication and downloaded for archive and analysis.
RTR505B requires a Base Unit to carry out wireless communication.
(Compatible Base Units: RTR500BC, RTR500BW, RTR500BM, RTR-
500MBS-A, RTR-500DC, RTR-500, RTR-500NW/AW)
For the operation and configuration of the Base Unit, refer to
the instruction manual attached to the Base Unit or the RTR500B
Series Help available on T&D Website.
Wireless Data Recorder RTR505B is referred to as the "(data) logger" or
"device" in this manual.
tandd.com
© Copyright T&D Corporation. All rights reserved.
2021.11 16508210006 (2nd Edition) Printed on recycled paper.
Package Contents
• RTR505B or RTR505BL (Large Battery Type)
• Lithium Battery LS14250 (or Large Capacity Battery Kit RTR-500B1 for L type model)
• Strap (Not included with L type model)
• Manual Set (Warranty Included)
Part Names
Antenna
LCD Display
O p tic al
Co m m unication
Area
Module Jack
<Front>

Input Modules (Sold Separately)

Measurement Item Input Module
Temperature Thermocouple Module
(Type K, J, T, S) (TCM-3010)
Temperature PT Module
(Pt100, Pt1000) (PTM-3010)
Voltage Module
Voltage
(VIM-3010)
4-20mA Module
4-20mA
(AIM-3010)
Pulse Input Cable
Pulse
(PIC-3150)
• Before using the pulse input cable, it is necessary to set the measurement item to "pulse
type" in the Remote Unit Settings of the application.
• In order to change the measurement item, initialize the Remote Unit without connect-
ing the input module and then redo the Remote Unit registration and settings.
< S i d e >
<Side> ( L t y p e )
LCD Displayed Items
Measurement, Unit of Measurement,
Sensor Type, Operational Status
Measurement, Unit of Measurement,
Sensor Type, Operational Status
Measurement, Unit of Measurement,
Operational Status
Measurement, Unit of Measurement,
Operational Status
Measurement, Unit of Measurement,
Operational Status
Make sure that the module is completely
inserted until you hear a "click" sound.

Battery Installation

Recording starts automatically by inserting the battery with the default
or previous settings.
Battery
Cover
Screw
Rubber
Packing
Lithium Battery

Battery Replacement

When it is time for the battery to be
replaced, a battery warning mark will ap-
pear. Please change the battery as soon
as possible if this mark appears.
If you continue to use the logger without changing the battery, the
current temperature and [bAtt] will be displayed alternately and wireless
communication will stop. (Recording will continue.)
Alternating
Display
• If the battery is further left unchanged, the display will automatically shut
off and all previously recorded data will be lost.
• Although the logger continues to work for a period after the battery has
been removed, leaving the device without a battery until the LCD display
goes blank will cause all recorded data to be lost.
• After the battery installation, the battery warning mark may not disappear
from the logger's LCD for 10 to 60 minutes. This is due to the characteristic
of the lithium battery and is not a malfunction of the logger or the battery.

Remote Unit Registration and Settings

Via Software and Optical Communication
Connect the Base Unit to a PC with a USB cable, and place the data log-
ger face down to align the communication areas as shown below.
RTR500BW,
RTR-500NW/AW
RTR-500DC
Via Mobile App and Bluetooth
When the Base Unit is a RTR500BW or RTR500BM, it is possible to make
Base Unit and Remote Unit settings from nearby mobile devices using
Bluetooth.
Default Settings
Recording Mode Endless
Recording Interval 10 minutes
Recording Start
Immediate Start
Method
• Make sure to use the proper type and
size screwdriver. (Phillips head #1
screwdriver is recommended.)
• Insert the supplied battery with the
tube attached. When using a CR2 lithi-
um battery, the tube is not necessary.
• Before closing the cover, check the rub-
ber packing for dust or scratches, as
they can reduce the water resistance of
the rubber.
• Be sure to completely close the cover.
Make sure not to over tighten the
screws.
• Appropriate Tightening Torque:
20N·cm to 30N·cm (2Kgf·cm to 3Kgf·cm)
RTR500BM,
RTR-500MBS-A
RTR500BC,
RTR-500
® Communication
