Suraielec Smart Wi-Fi Box Timer Switch
SKU: T40W
Safety Section
Risk of Fire or Electrical Shock
• This smart box should be installed by a licensed electrician. Turn power off at main panel before servicing this switch or the equipment it controls.
• Disconnect power at the circuit breaker(s) or disconnect switch(es) before installing or servicing.
• Installation and/or wiring must be in accordance with national and local electrical code requirements.
• This enclosure does not provide grounding between conduit connections. When metallic conduit is used, you must also install grounding type bushings
and jumper wire.
• Use #14- #8 AWG wires, rated at least 75°C (167°F)-COPPER conductors ONLY.
• Make sure there is no wire insulation under the terminal plate on the timer switch connector. Firmly tighten terminal screws.
• Do not remove the insulator that is covering terminals.
• KEEP THE DOOR CLOSED AT ALL TIMES when not servicing.
• Installation, Operating and Safety Instructions - Instructions for installation and use of this product are provided by the manufacturer. "Make sure to
use this product together with 40A circuit breaker in the upstream" stated in the manual
Specifications
Input
120- 240/277VAC, 60Hz Detects voltage automatically (NO DIP SWITCH SETTING REQUIRED)
Contact Ratings
- 40A Resistive 120 to 277 VAC;
- 30A General Purpose 120 to 277 VAC;
- 20A Resistive, 30VDC;
- 1HP, 120 VAC;
- 2HP, 240VAC;
- 20A Ballasted load 120 to 277 VAC;
- 15A Tungsten, 120 VAC;
- 5A Tungsten, 250VAC;
- 800VA, Pilot Duty, 120VAC;
- 720VA, Pilot Duty, 240 VAC;
- TV-5, 120VAC

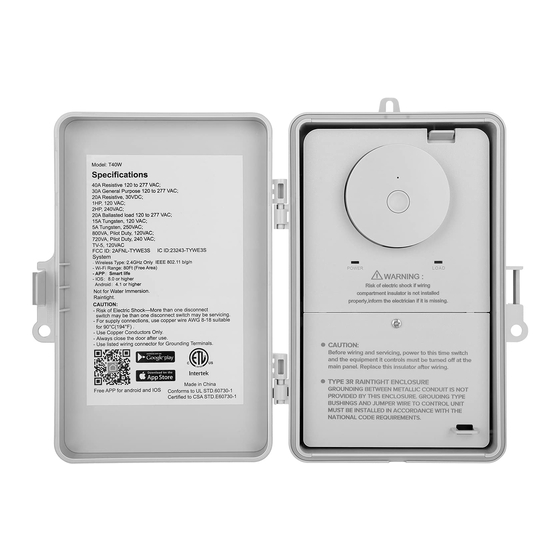

Product Illustration
Grounded Terminal
Open the plastic insulator
Wi-Fi LED Indicator
Clip
Power Button &
Program Button
Load Indicator
Power Indicator
Plastic Insulator
Knockouts
FIG.1 Product IIlustration
WARNING
System
- Wireless Type: 2.4GHz Only IEEE 802.11 b/g/n
- Wi-Fi Range: 80Ft (Free Area)
- APP：Smart life
- IOS：8.0 or higher
Android：4.1 or higher
Terminal range
- #14-#8 AWG
Operating temperature:
- -40°F to 149°F
Light Chart
Name
Power Indicator
Load Indicator
Wi-Fi LED Indicator
1
Status
Status
Color
Solid
Input normal
Red
No Light
Input abnormal
Solid
Power is on
Blue
No Light
Power is off
Resetting/Enter into
Blinks rapidly
network configuration
Blue
Blinks slowly
Configuration is
success
until off
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Suraielec T40W

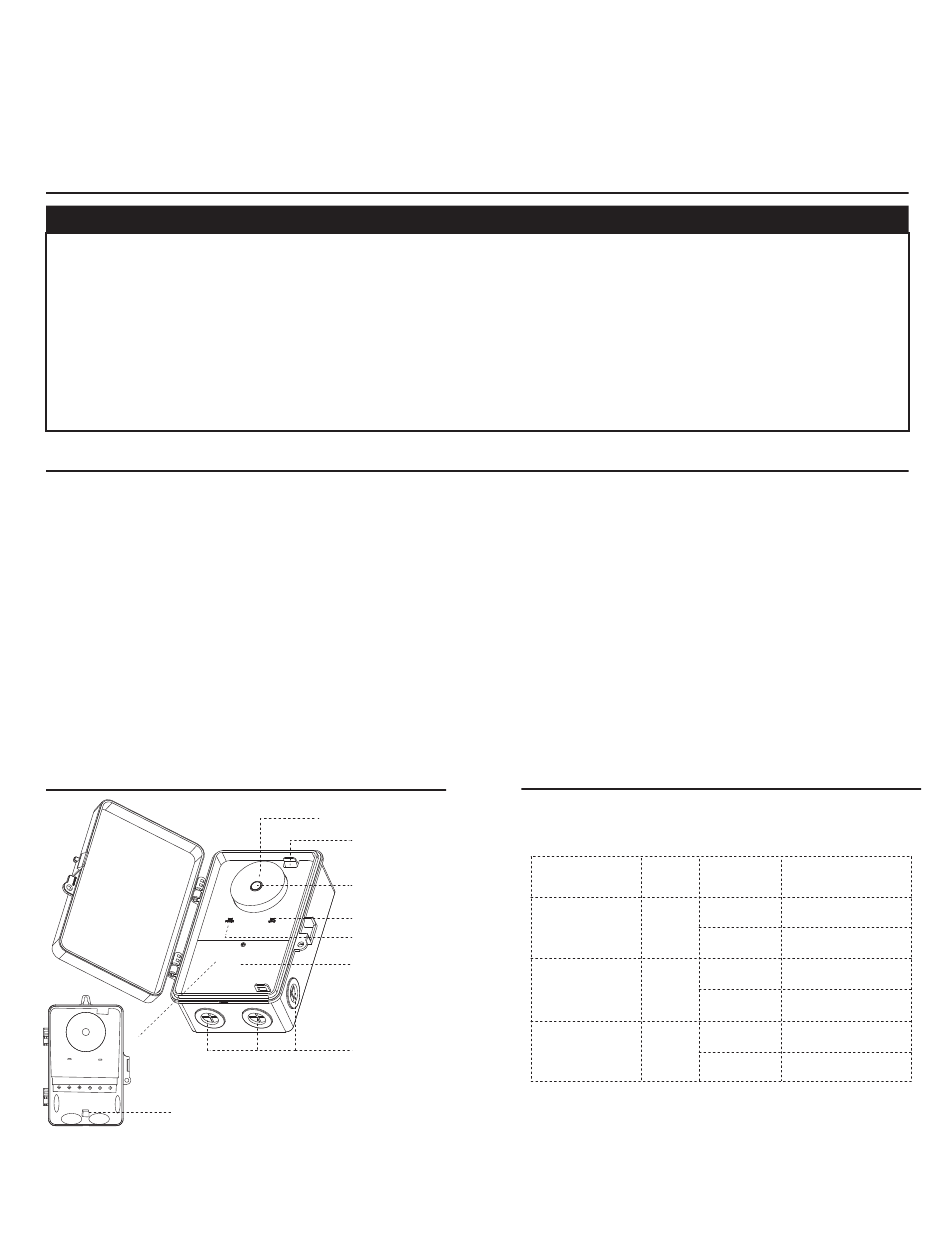

- Page 1 Suraielec Smart Wi-Fi Box Timer Switch SKU: T40W Safety Section WARNING Risk of Fire or Electrical Shock • This smart box should be installed by a licensed electrician. Turn power off at main panel before servicing this switch or the equipment it controls.
- Page 2 Installation Mounting the Smart Box Timer 1. Choose the knockouts (five 1/2’’ to 3/4’’ combination knockouts available) For 1/2’’ Knockouts: Carefully cut off the inner ring of the rubber plug with a knife (FIG.2). For 3/4’’ Knockouts: Please remove the entire rubber plug (FIG.3). 3/4"...

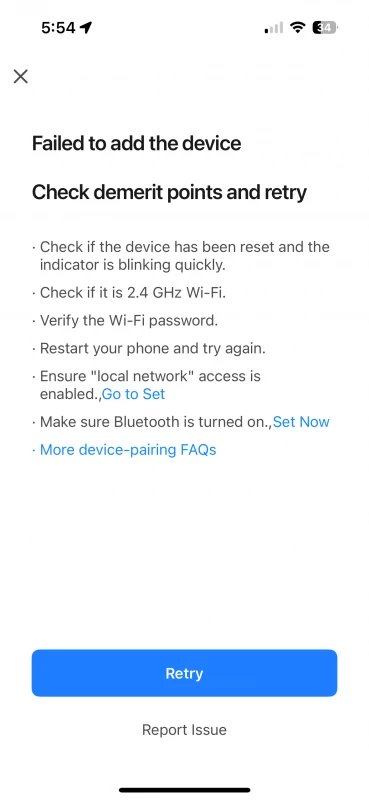

- Page 3 120VAC SMART BOX HOT WATER TANK 120VAC SMART BOX Circuit Breaker Box COM2 COM1 COM1 COM2 (J2) (J1) 120VAC LOAD (J1) 240VAC 120VAC LOAD (Dualphase) 120VAC 120VAC 277VAC FIG9. 277VAC Application- Controlling Two 277VAC Loads FIG10. HOT WATER HEATER TYPICAL WIRING DIAGRAM Smart Life APP Setup NOTE Due to continuous updates and improvements, the “Smart Life”...
- Page 4 ON/OFF Button Countdown Random Repeat Program Program Countdown Random Repeat FIG.17 FIG.18 Timer Function Turning Devices On/Off To turn the smart box ON/OFF, 2 methods: A. Press the power button on the smart box B. Tap ON/OFF in the Smart Life APP. Timer Function Enter the Smart Box control interface, select the“Program”, ”Countdown”, ”Random”, or "Repeat"...
- Page 5 Work with Alexa Link Smart Life account to Alexa 1. Open your Alexa app, tap "Skills" in the menu, and then search "Smart Life" Select "Smart Life" and tap "Enable" to enable the Smart Life skills. 2. You will be directed to the account link page. Type in your "Smart Life" account and password, don't forget to select your country/ region where your account belongs to and then tap "Link Now"...
