4.4 CU. FT. HEAT PUMP DRYER

LD2444

Table of Contents

Need help?

Do you have a question about the Summit LD2444 and is the answer not in the manual?

Questions and answers

Summary of Contents for Felix Storch Summit LD2444

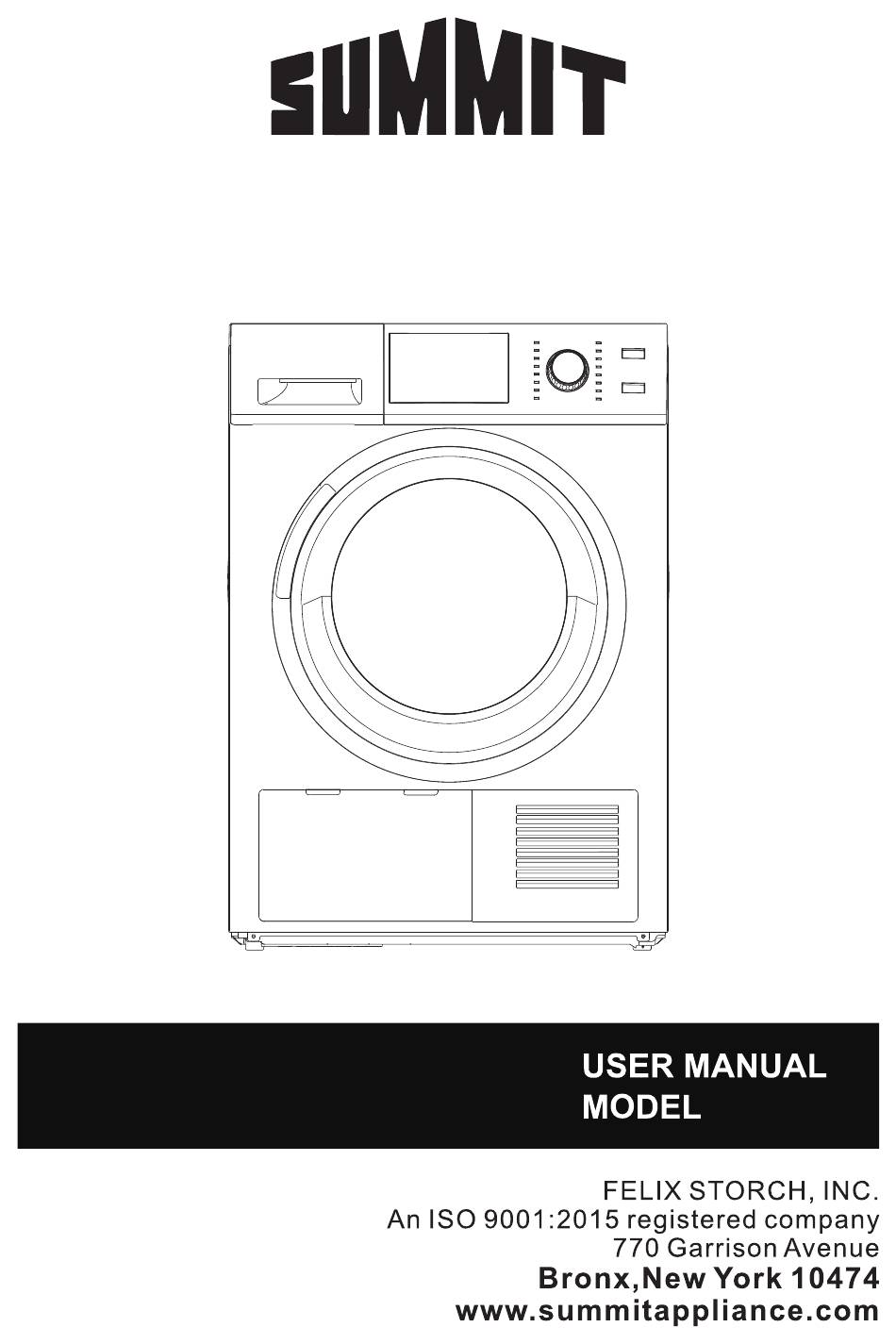

Page 1 4.4 CU. FT. HEAT PUMP DRYER LD2444...
Page 2: Table Of Contents
CONTENTS SAFETY AND PRECAUTIONS ..............2 WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS........2 IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS..........2 IMPORTANT SAFETY INSTRUCTIONS..............2 INSTALLATION REQUIREMENTS ............6 IMPORTANT TO INSTALLER................6 BASIC REQUIREMENTS..................6 LOCATION REQUIREMENTS................6 STACK KIT INSTALLATION INSTRUCTION............10 DRAIN SYSTEM....................12 ELECTRIC REQUIREMENTS................12 GROUNDING....................14 REPLACEMENT PARTS AND ACCESSORIES............14 INSTALLATION INSTRUCTION ............14...
Page 3: Safety And Precautions
SAFETY AND PRECAUTIONS Introduction Congratulations on the purchase of your new Insignia dryer. Insignia dryers feature the latest in design and capabilities and will provide reliable and trouble-free performance. SAFETY AND PRECAUTIONS WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS This manual contains important information on the installation, use, and care of your appliance.
Page 4 SAFETY AND PRECAUTIONS 4. ALWAYS follow the fabric care instructions supplied by the garment manufacturer. 5. Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances as they give off vapors that could ignite or explode.
Page 5 SAFETY AND PRECAUTIONS 21.Keep the area around the exhaust opening and surrounding areas free from lint, dust, and dirt. 22.The interior of the dryer and exhaust duct should be cleaned periodically by qualified service personnel. 23.Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
Page 6 SAFETY AND PRECAUTIONS CAUTION 1. Do not sit on top of the dryer. 2. Because of continuing product improvements, we reserves the right of change specifications without notice. For complete details, see the Installation Instructions packed with your product before selecting cabinetry, making cutouts, or beginning installation.
Page 7: Installation Requirements
INSTALLATION REQUIREMENTS INSTALLATION REQUIREMENTS IMPORTANT TO INSTALLER Please read the following instructions carefully before installing the dryer. These instructions should be kept for future reference. The dryer is not suitable for installation in a mobile home. Remove the door from all discarded appliances to avoid the danger of a CAUTION child being trapped and suffocating, after unplugging cut off Power Cord.
Page 8 INSTALLATION REQUIREMENTS Alcove or closet or wall insert/recessed installations No other fuel-burning appliance should be installed in the same closet as the dryer. WARNING Minimum clearances between the dryer and adjacent walls or other surfaces : Sides 1 in. (25.4mm) Rear 2 in.(50.8mm) 2 in.
Page 9 INSTALLATION REQUIREMENTS Undercounter installation 23.4 in. (595mm) 42.2in.(1072mm) ≥35.5in.( ≥901mm) 33.5in.(850mm) 1 in. (25mm) 1 in. (25mm)
Page 10 INSTALLATION REQUIREMENTS Installation with stacked washing machine and dryer 3in.(76mm) 2in.(50.8mm) 3in.(76mm) 25.7 in.(653mm) 48in.² (3100mm²) 24in.²(1550mm²) 1in.(25.4mm) 2 in.(50.8mm) 3in.(76mm) 23.4 in. (595mm) NOTE The front of the closet must have two unobstructed air openings for a combined minimum total area of 72 sq.in. (465 sq.cm) with a minimum clearance of 3 in. (76mm) at the top and bottom.
Page 11: Stack Kit Installation Instruction
INSTALLATION REQUIREMENTS Stack Kit Installation Instruction 1.The stacking kit includes the following parts: Rubber pad x1 Rubber sheet x2 Rubber pad x1 Support piece x4 Screw x10 Connecting bracket L x1 Connecting bracket R x1 2.Rubber pad attaching position Attach the rubber pad to the top cover of the front loader, as shown in the figure below:...
Page 12 INSTALLATION REQUIREMENTS 3.Support piece installation Install the support at the bottom of the dryer, as shown in the figure below: Screw the two feet on the front of the dryer to the minimum distance (clockwise rotation) 4.Method for stacking clothes dryer and washing machine Lift the dryer to the top of the washing machine.
Page 13: Drain System
INSTALLATION REQUIREMENTS DRAIN SYSTEM The following parts are optional for specific models. If your dryer has following parts, please wear gloves and install them as per the instruction below. Condensing drain hose onnector Installation 1. Take the hose out of the holder. 2.Disconnect the hose from the water container inflow.(To assure water tightness, there is tension between the hose and the inflow and therefore an increased force is required for disassembly.)
Page 14 INSTALLATION REQUIREMENTS Electrical connections An individual branch (or separate) circuit serving only your dryer is recommended. DO NOT USE AN EXTENSION CORD. Electric models - U.S. only The dryers require a 120/240 volt, 60Hz AC approved electrical service. The electric service requirements can be found on the data label located on the back. A 30-amperefuse or circuit breaker on both sides of the line is required.
Page 15: Grounding
INSTALLATION INSTRUCTION Install the clothes dry according to manufacture’s instructions and local codes. GROUNDING - For products sold in the U.S., your dryer has an optional cord with an equipment- grounding conductor and a grounding plug, which is sold separately. For products sold in Canada, your dryer is equipped with a cord having an equipment-grounding conductor and a grounding plug.
Page 16: Removing From The Package
INSTALLATION INSTRUCTION INSTALLATION INSTRUCTION REMOVING FROM THE PACKAGE 1. Unpack your dryer and inspect it for shipping damage. Make sure you have received all the items shown below. 2. To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the unit.
Page 17: Tools Needed In Installation
INSTALLATION INSTRUCTION TOOLS NEEDED IN INSTALLATION Tools needed: Phillips screwdriver Flat screwdriver Level Pliers Cutting knife Adjustable wrench Tape measure that opens to 1" (25 mm) INSTALLATION STEPS For the proper installation, we recommend that you hire a qualified installer. STEP 1 Choose the proper location 1.
Page 18 INSTALLATION INSTRUCTION 3-Wire system connections 1. Connect the grounding wire of the power cord to the external ground conductor screw. If there is no grounding wire of the power cord , please remove the Neutral grounding wire from center terminal block screw of the dryer, then connect it to the external ground conductor screw and connect the neutral wire to the center terminal block screw.
Page 19 INSTALLATION INSTRUCTION Tighten the strain relief screws. Insert the tab of the terminal block cover into your dryer’s rear panel slot. Secure the cover with a screw. 4-Wire system instructions: IMPORTANT: Ring-type terminals are recommended. If using strap terminals, make sure they are tightened. Center terminal block screw External ground connector Green or bare copper wire of the...
Page 20 INSTALLATION INSTRUCTION level loosen lock Adjustable legs STEP 4 Power on Make sure all electrical connections are complete. Plug in your dryer. STEP 5 Final check - Make sure the dryer is plugged into an electrical outlet and is properly grounded. - The dryer is leveled and is sitting firmly on the floor.
Page 21: Operating Instruction
OPERATING INSTRUCTION OPERATING INSTRUCTION CONTROL PANEL To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating the appliance. WARNING Power 1-Power button Press to turn your dryer on or into stand-by situation. If your dryer is on for more than 10 minutes without any buttons being pressed, it automatically turns into stand-by situation.
Page 22 OPERATING INSTRUCTION 5-Delay This function is used for delaying clothes drying time within 24 hours. The delay time means the programme will start after x hours. When the delay programme starts, the time starts to countdown on the display and the delay icon blinks. 6-Time Adjust These buttons are effective only for Manual cycles.
Page 23: Drying A Load Of Laundry
OPERATING INSTRUCTION DRYING A LOAD OF LAUNDRY STEP 1: Power on your dryer - Press this Power button to power your dryer on. STEP 2: Load your dryer - Place only one wash load in your dryer at a time. - Mixed loads of heavy and light weight fabrics will dry differently,which may result in lightweight fabrics being dry while heavy fabrics remain damp at the end of a drying cycle.
Page 24 OPERATING INSTRUCTION Time Maxim-um Dryness Damp Wrinke Cycle Delay Adjust Amount Level Alert Prevent Damp Less Normal Normal More Damp Less Jeans Normal More Damp Perm Less Press Normal More Damp Quick Less Normal More Wool Air Fluff Time Dry Refresh More Sanitize...
Page 25 OPERATING INSTRUCTION For best results, follow the wet load size recommendations noted for each cycle. For the best performance, the load for each cycle should be recommended as follows: Cycle Items Weight Recommend load Cotton Normal Jeans Jeans Chemical fiber(easy care) Perm Press 7.5b Quick Dry...
Page 26: Filter Clean
OPERATING INSTRUCTION Control Lock This function is useful to prevent children from playing with the unit. - Press and hold the “ ”and “Damp Alert” buttons simultaneously for 3 seconds to activate this function. The blue “Control Lock” light will turn ON. - Press and hold the “...
Page 27 OPERATING INSTRUCTION Clean the base filter 1. Open the cover. 2. Unlock three locking levers and grasp the filter handle. 3. Remove the base filter and clean it. If there is too much lint on the filter, clean it in water.
Page 28: Special Laundry Tips
OPERATING INSTRUCTION SPECIAL LAUNDRY TIPS Drying guide Items - Follow the care label instructions or dry in Bulky cycle. Bedspreads & - Make sure the item is thoroughly dry before using or storing. Comforters - May require repositioning to ensure even drying. - Use the Normal cycle and dry only one blanket at a time for best tumbling action.
Page 29: Maintenance
MAINTENANCE Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service Personnel – Do not contact the following parts while the appliance WARNING is energized: Main Motor , Cooling Fan. CARE AND MAINTENANCE Control panel - Clean with a soft, damp cloth.
Page 30: Troubleshooting Instructions
TROUBLESHOOTING INSTRUCTIONS CHECK THESE SOLUTIONS IF YOUR DRYER If your dryer has any problems as followings, you can check as the solutions listed below before making a service call. This will help you save time and money. Solution Problem - Make sure the door is latched shut. - Be sure the power cord is plugged into a live electrical outlet.
Page 31 TROUBLESHOOTING INSTRUCTIONS Solution Problem - Seams, pockets, and other similarly heavy areas may not be completely dry when the rest of the load has reached the selected dryness level. This is normal. Select the Time Dry Clothes are unevenly setting if desired. dried - If one heavy item is dried with a lightweight load, such as one towel with sheets, it is possible that the heavy item will...
Page 32: Error Codes
TROUBLESHOOTING INSTRUCTIONS Solution Problem Clean lint filter. - Empty container. - Check drain hose. Degree of dryness was - Dryer installation place is too restricted. not reached or drying - Clean the moisture sensors. time too long - Keep the Air inlet clean. - Use higher drying intensity level programme or time programme.
Page 33: Appendix
TROUBLESHOOTING INSTRUCTIONS APPENDIX Fabric Care Chart The following symbols provide garment care direction. The Clothing care labels include symbols for washing, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items.
