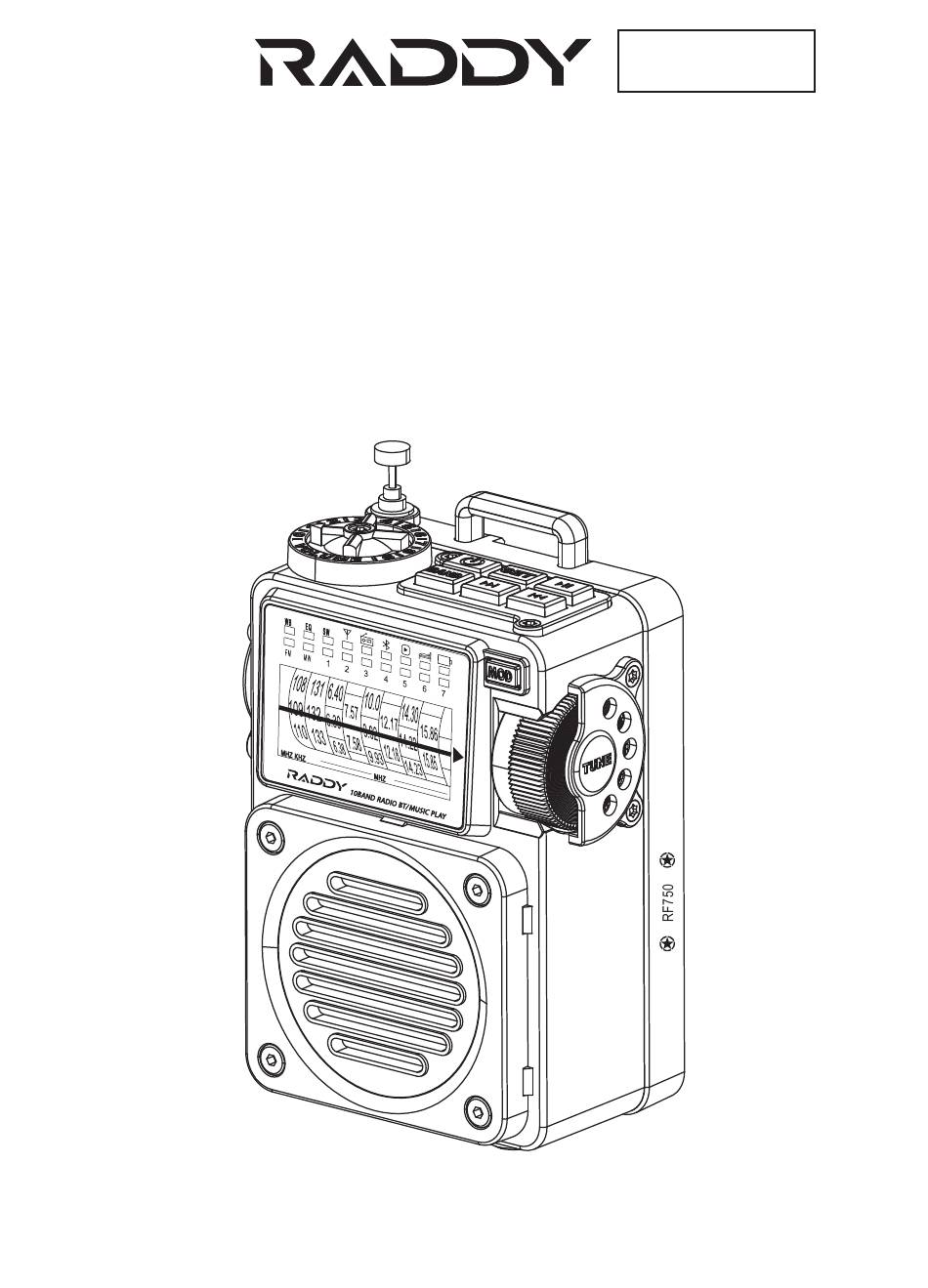

- Page 1 RF750 Portable Multimedia Music Player Full-band Broadcast Reception Bluetooth TF card play Operational Guideline Thank you for your purchase. Please read this operation guide carefully and keep it properly before use.
-
Page 2: Table Of Contents
RF750 Portable Multimedia Music Player Contents RF750 Overview of Portable Multimedia Music Player Package Internals Appearance Button Function Schematic Diagram Product Indicator Light Schematic Diagram Product Function Introduction USB Socket/ Charging Indicator Light Start Music Spectrum Lamp The Use of Antenna... -
Page 3: Rf750 Overview Of Portable Multimedia Music Player
RF750 Portable Multimedia Music Player RF750 Overview of Portable Multimedia Music Player This is a multimedia music player made by our company with high fidelity, hoping to bring more fun to friends who love music！ Give radio lovers a different experience. -
Page 4: Package Internals
RF750 Portable Multimedia Music Player In radio mode, this product can be set to enable backlight display and turn off backlight. This product can remember 110 radio stations in radio mode. (FM / MW: 20 radio stations are stored respectively, 7meter waves are stored in short wave, and 10 can be stored in each meter wave) This product uses the type-C charging jack. -
Page 5: Product Indicator Light Schematic Diagram
RF750 Portable Multimedia Music Player : Power On / Off Key SET: Set sleep time / Select meter wave / Select EQ sound effect : Music Playing Mode：Play/Pause; Radio Mode：Enter the fully automatic search and storage station; Channel Selection Mode/WB; Long press to enter a mode;... -
Page 6: Product Function Introduction
RF750 Portable Multimedia Music Player Flashing: waiting for Bluetooth connection Always on: connected Bluetooth / Bluetooth playing status Flashing: waiting to insert TF Card. Always on: TF Card Play / TF Card Pause Play Flashing: enter the setting up of sleep state. - Page 7 RF750 Portable Multimedia Music Player Volume operation: (volume adjustable level: level 0-9) In the state of power on or power off, rotate the volume coding opening, and the sound is turned off when the arrow is aligned to "0". When the arrow is aligned to "9", the sound has been turned to the maximum volume.
- Page 8 RF750 Portable Multimedia Music Player quantity: 20; Seven meter waves in short wave, and each meter wave can store 10 (total: 110). 5.2.2 Introduction to manual platform searching method of coded pulley switch： In the radio working mode, slide the coding pulley switch on the right side of the machine to find the radio station with signal, tuning, indicator light on.
- Page 9 RF750 Portable Multimedia Music Player point, and the digital light indicates the corresponding received frequency point： 1: 162.400MHZ; 2: 162.425MHZ; 3: 162.450MHZ; 4: 162.475MHZ; 5: 162.500MHZ; 6: 162.525MHZ; 7: 162.550MHZ Long press“ ‖”button for two seconds to enter automatic early warning “ALERT”, in automatic early warning “ALERT”...
- Page 10 Bluetooth "indicator light is flashing, turn on the mobile phone Bluetooth, search for Bluetooth devices, click the Bluetooth connection generation name" RF750 "in the" available devices ", and hear the English prompt tone: THE BLUETOOTH HERE SUCCESSFULLY (meaning: the Bluetooth connection is successfully broadcast here) after successful pairing.
-
Page 11: Usb Socket/ Charging Indicator Light
RF750 Portable Multimedia Music Player The instruction of putting TF Card correctly： The correct way of taking out TF card, press lightly the TF card, and it will rebound out（Please don't pull out). Cancel sleep shutdown function: In Bluetooth playing/TF card playback mode, short press “SET” button to choose sound quality EQ mode. -
Page 12: Start Music Spectrum Lamp
RF750 Portable Multimedia Music Player equipment with output voltage of DC5V / 1a-dc3a to charge, so as to avoid damage to lithium battery or equipment. When the lithium battery is not used for a long time, be sure to take it out and store it separately, and ensure that it is charged once a month. -
Page 13: Main Technical Parameters
RF750 Portable Multimedia Music Player Main Technical Parameters MW： 522-1620KHZ (Medium Wave Step Value 9KHZ) 520-1710KHZ (Medium Wave Step Value 10KHZ) Receiving Range FM: 87-108MHZ SW:5.70-17.90MHZ WB:162.400-162.550MHZ FM: ≤8dB Receiving Sensitivity MW: ≤86dB SW: ≤32dB Quiescent Current ≤60uA Maximum Current ≤650MA... -
Page 14: Matters Needing Attention
RF750 Portable Multimedia Music Player Matters Needing Attention Before use, you should ensure to follow the following basic safety tips to ensure the safe and reliable use of the product： Read and understand all safety guidelines and use information. When the battery symbol space is used or the outer frame of the battery symbol flashes, it indicates that the battery is low. -
Page 15: Appendix
RF750 Portable Multimedia Music Player Appendix Elektro- und Elektronikgeräte Informationen für private Haushalte Das Elektro- und Elektronikgerätegesetz (ElektroG) enthält eine Vielzahl von Anforderungen an den Umgang mit Elektro- und Elektronikgeräten. Die wichtigsten sind hier zusammengestellt. 1. Getrennte Erfassung von Altgeräten Elektro- und Elektronikgeräte, die zu Abfall geworden sind, werden als Altgeräte... - Page 16 RF750 Portable Multimedia Music Player Versandflächen für Elektro- und Elektronikgeräte mindestens 400 m² betragen oder die gesamten Lager- und Versandflächen mindestens 800 m² betragen. Vertreiber haben die Rücknahme grundsätzlich durch geeignete Rückgabemöglichkeiten in zumutbarer Entfernung zum jeweiligen Endnutzer zu gewährleisten.
- Page 17 support@iraddy.com www.iraddy.com Made in China...
