Transfer Motor
over head lift accessories
Service Manual
Prod. No
Transfer Motor Likorall™ 240/242 overhead lift accessorie (discontinued 2013)
3126043
3126044
Transfer Motor Likorall™ ES overhead lift accessorie
3126046
Transfer Motor Traverse
Transfer Motor Likorall 240/242
Transfer Motor Likorall ES
3EN620401 Rev. 7
ENGLISH
Transfer Motor Traverse
Advertisement
Summary of Contents for Liko 3126043

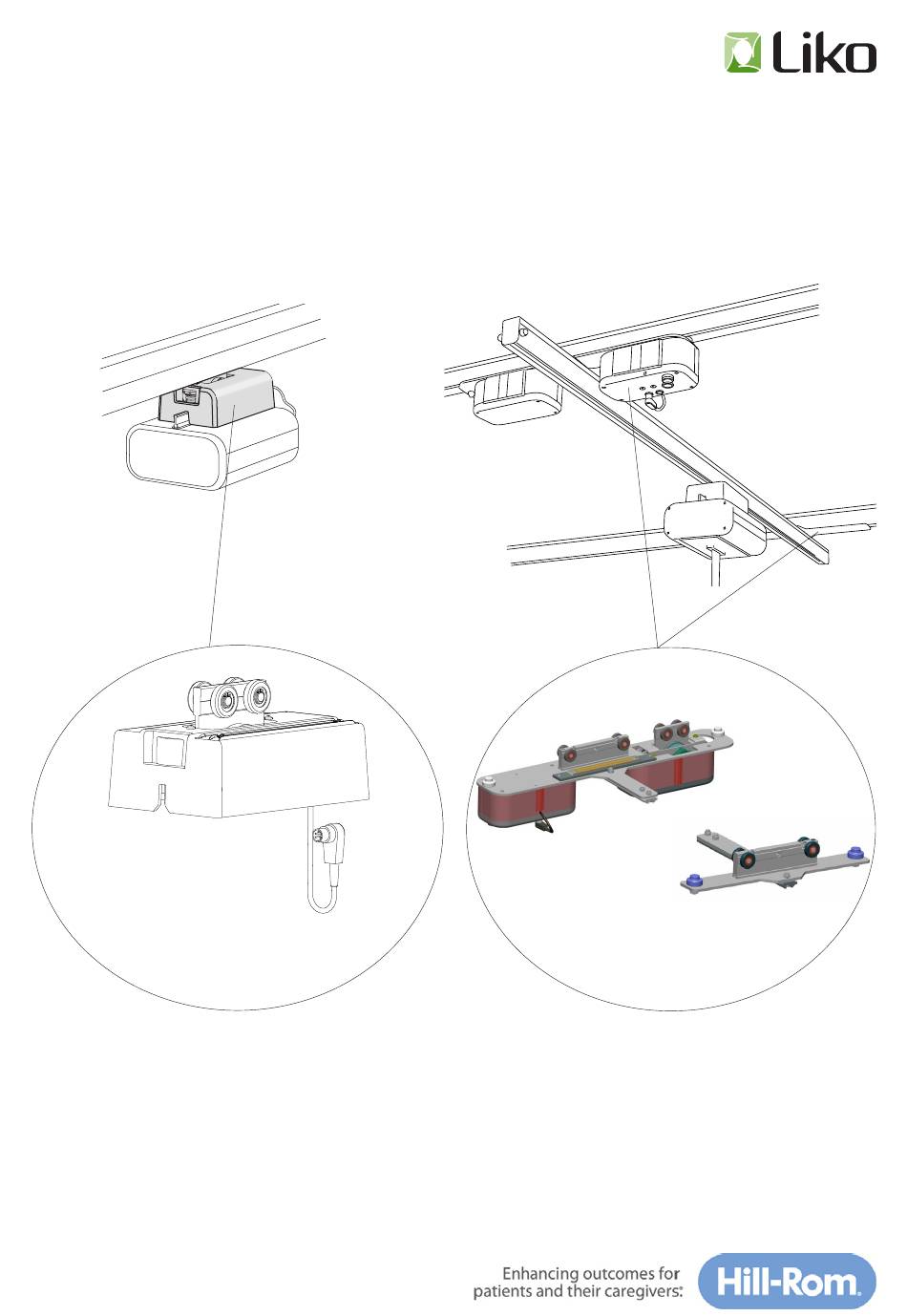

- Page 1 Transfer Motor over head lift accessories Service Manual Prod. No Transfer Motor Likorall™ 240/242 overhead lift accessorie (discontinued 2013) 3126043 3126044 Transfer Motor Likorall™ ES overhead lift accessorie 3126046 Transfer Motor Traverse Transfer Motor Likorall 240/242 Transfer Motor Traverse Transfer Motor Likorall ES 3EN620401 Rev.
- Page 2 If instructions are not followed there is a risk of serious injury to patient or caregiver. Spare part statement Liko AB will as manufacturer of stationary & mobile lifts keep spare parts available for 10 years after the last manufacturing date of the product.
-
Page 3: Table Of Contents
Table of Contents Transfer Motor Page 1.0 Technical Data 1.1 Transfer Motor Likorall™ 240/242 overhead lift accessorie ..4 1.2 Transfer Motor Likorall™ ES overhead lift accessorie ....5 1.3 Transfer Motor Traverse ...............6 2.0 Spare Parts List 2.1 Transfer Motor Likorall™ overhead lift accessorie .......7 2.2 Transfer Motor Traverse ...............8 3.0 P eriodic Inspection Information .................9 4.0 Preventive Maintenance ..................10 5.0 Product Changes 5.1 Transfer Motor Likorall™ ES overhead lift accessorie ....11 5.2 Transfer Motor Traverse ..............12... - Page 4 The hand control for the Likorall control (please see explanation at left). The hand control Likorall with Transfer Motor 3126043 and 3126044 comply with the requirements of directives with transfer motor has four or six buttons. The travel...
-
Page 5: Technical Data
1.2 Technical Data Transfer Motor Likorall™ ES overhead lift Transfer Motor Likorall ES in combination with Liko lift motors Likorall complies with the requirements in EN ISO Definitions 10535:2006, IEC 60601-1, EN 60601-1-2, ANSI/AAMI ES60601-1 and CAN/CSA C22.2 No. 60601-1. -
Page 6: Transfer Motor Traverse
1.3 Technical Data Transfer Motor Traverse Technical Data Prod. No. 3126046 Transfer Motor Traverse together with Liko Likorall lift units complies with the requirements of EN ISO 10535, IEC 60601-1, EN 60601-1-2, UL 60601-1 and CAN/CSA C22.2 No. 601.1. Maximum load:... -
Page 7: Spare Parts List
Liko™ Spare Parts 2.1 Spare Parts List Transfer Motor LR Spare Parts Positions PROD. NO. PRODUCT 3126044 Transfer Motor LR 242 ES Transfer Motor LR 242 ES PROD. NO. POS. NO. NAME UNIT ASSEMBLY INSTR. 31290060 Plastic Wheel with Bearing... -
Page 8: Transfer Motor Traverse
Liko™ Spare Parts 2.2 Spare Parts List Transfer Motor Traverse Spare Parts Positions PROD. NO. PRODUCT 3126046 Transfer motor Traverse Transfer motor Traverse PROD. NO. POS. NO. NAME UNIT ASSEMBLY INSTR. 31290007 Battery 2,4 Ah/12 V pair 3SE630239 31290060 Plastic Wheel with Bearing... - Page 9 Post Code Liko™ accessories must be thoroughly inspected at least once per year. Inspection and service must be carried out by Hill-Rom authorized personnel. If the accessory is installed in a corrosive environment such as indoor pool or bathroom, see inspection point 6 before starting inspection.
-
Page 10: Preventive Maintenance
4.0 Preventive Maintenance, Transfer Motor Expected Life Time The expected life time of Liko™ Transfer Motors are 10 years of normal use, provided that required Periodic Inspection and Preventive Maintenance is performed by personnel authorized by Hill-Rom and using original Liko™ spare parts. -
Page 11: Product Changes
Transfer motor Likorall ES is approved according to 3rd edition of EN60601-1. New version of Dampers. 6002230 1778 2010 Changes Project Discontinued product; Transfer Motor Likorall 240/242 (Prod No 3126043) 1392 2006 Changes From S/N: Project New version of Dampers. - Page 12 5.2 Product Changes, Transfer Motor Traverse Prod. No. 3126046 2008 Changes Project New version of guide wheel. 6030073 2007 Changes From S/N Project New version of electronic card (Rev. B). 6030053 Service Manual Transfer Motor • 3EN620401 Rev. 7 www.liko.com www.hill-rom.com...
