envivo ENV-1674 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

DAB System
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENV-1674 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for envivo ENV-1674

  • Page 1 DAB System  User Manual ...

  • Page 2: Read Carefully Before Use

    EnVivo. We want you to be completely satisfied with your purchase so this EnVivo product is backed by a comprehensive manufacturer’s 3-year warranty and an outstanding after sales service through our dedicated Helpline.

  • Page 3: General Information And Safety Instructions

    GENERAL INFORMATION AND SAFETY INSTRUCTIONS  In order to avoid damages to your device, we advise you to read all the safety information and operating instructions before using this DAB radio. 1. Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint, or insert foreign objects into this device.
  • Page 4 In the box  DAB Radio Remote Power Adapter Manual Warranty card...

  • Page 6: Product Overview

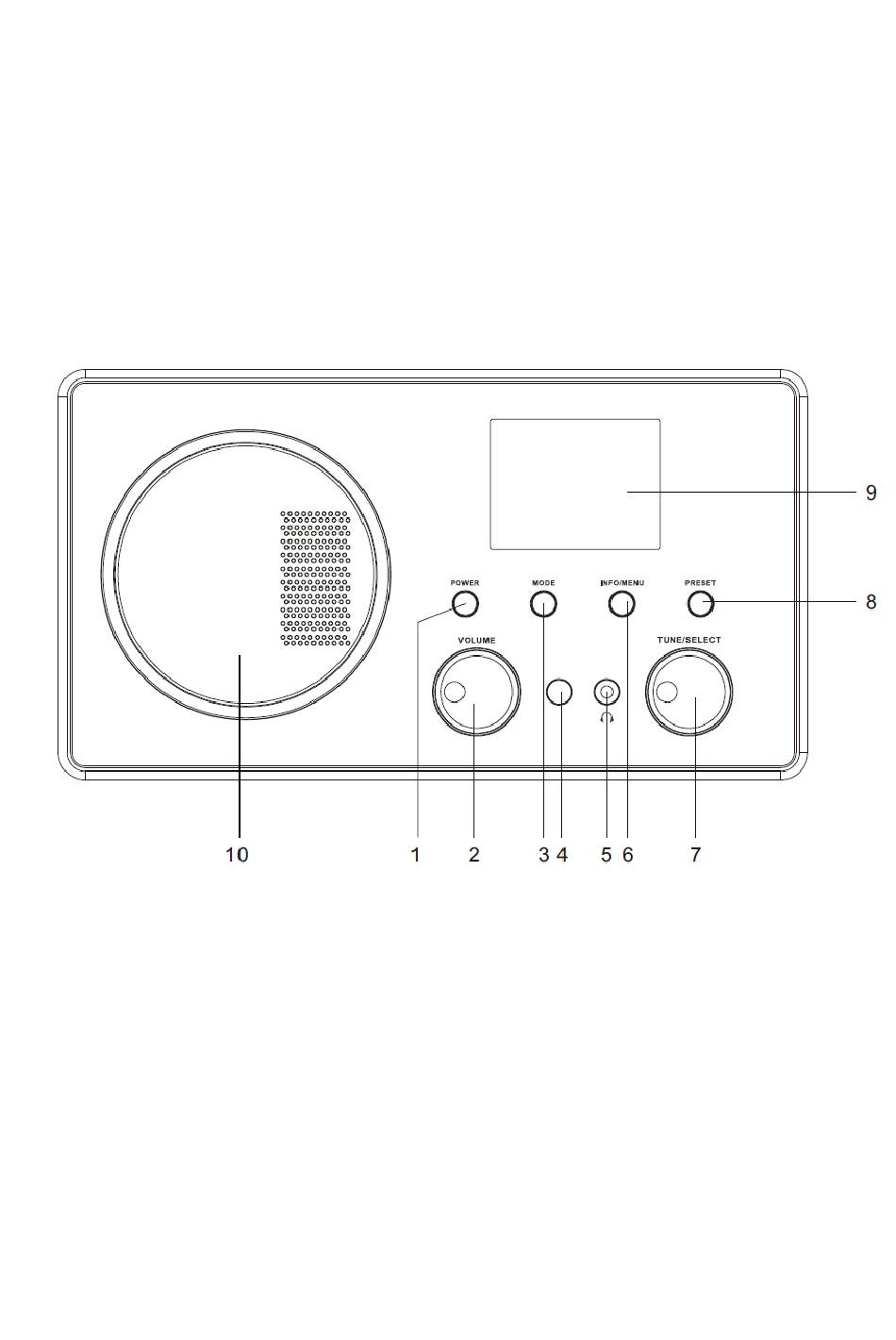

     Product overview  DAB System 1. Power 2. Volume 3. Mode 4. Remote Sensor 5. Earphone Jack 6. Info / Menu 7. Tune / Select 8. Preset 9. 2.4’’ Display 10. Speaker 11. DC power connector 12. USB Port 13. AUX in port REMOTE CONTROL 1.

  • Page 7: Getting Started

      Getting started  Unboxing  Open the box and remove the packaging from the product and accessories. Inspect the radio and cables for damage. If any damage found contact the after-sale number or email include in this manual. Power  Plug the power cable to the back of the DAB radio and the power adapter to AC outlet. Extend the antenna for optimal reception.
  • Page 8 Remote Control  Requires 2 AAA batteries (not included) A) Remove the battery compartment cover B) Insert 2 AAA batteries according to the markings inside the compartment. C) Close the compartment. Warning: Keep batteries out of reach of toddlers and small children because of the risk of ingestion, which may result in potentially fatal internal damage, or choking.
  • Page 9 from the product. Do not short-circuit, disassemble, charge, and keep the batteries away from open flames. Do not charge none-rechargeable batteries.
  • Page 10 Overview  Powering ON/OFF the system: Press the POWER button on the DAB radio or on the remote. Select mode: Press the MODE button on the DAB radio or on the remote. Selected mode will be showed on the display. Available modes to select from: DAB/FM/Bluetooth/USB/AUX Adjust volume: Turn the VOLUME knob on the DAB radio or press the VOL+/VOL- buttons on the remote, to increase/decrease sound volume.

  • Page 11: Dab Mode

    DAB Mode  Press MODE button on the DAB system or on the remote until display screen shows “DAB” For optimal DAB reception, extend the antenna on the backside, and position it for optimal signal reception. The DAB mode includes 30 preset slots where you can save your favorite DAB stations to for quick access. Note: First time you start the radio in DAB mode it will automatically search for DAB stations.
  • Page 12 1. Long press the Info/Menu button to enter menu. For remote press the Menu button. 2. Use the Tune/Select knob to scroll between options. For the remote use the Tune-/Tune+ buttons. 3. Press Tune/Select knob to confirm selected option. For remote press the Select button. Note: Press INFO/MENU button again to exit DAB menu.
  • Page 13 3. Press the Tune/Select knob to save station. For remote press Select button. Display info Press the Info/Menu button to toggle between different information to be showed on the display screen. For the remote press the Info button. You can toggle between the following info to be displayed: 1.
  • Page 14 “Pairing”. 2. Turn on Bluetooth on you Bluetooth device. 3. Find “ENV-1674” under available Bluetooth connection on your Bluetooth device and select it. 4. You Bluetooth connection should now say “Connected” on your Bluetooth device and the display will show the text “Connected”.
  • Page 15 USB  Instructions: 1. Press the Mode button on the DAB radio or on the remote until display screen shows “USB” 2. Insert USB flash drive with music files. 3. Music files from the flash drive will automatically start to play. Note: The DAB radio supports only MP3 sound files.
  • Page 16 AUX  Aux instructions 1. Press the Mode button on the DAB radio or on the remote until “Aux” is showed on the display screen. 2. Connect a 3.5mm cable (not included) to the AUX IN port on the back of the DAB radio and to a phone/tablet/other sound playing device.

  • Page 17: System Settings

    System settings  System settings can be entered in any mode on the DAB radio. Enter System settings: 1. Long press the Info/Menu button to enter menu. For remote press the Menu button. 2. Use the Tune/Select knob to scroll between options. For the remote use the Tune-/Tune+ buttons. 3.

  • Page 18: Cleaning And Maintenance

    Clean the product with a damp cloth. Make sure to let all parts dry before using product. Storage  Keep product out of direct sunlight and in a dry area. Specifications  Model number: ENV-1674 Input Voltage: 7.5V 1.2A Bluetooth V5.0 range up to 10 meters Bluetooth frequency: 2402MHz-2480MHz EIRP POWER (MAX.): 4DbM...
  • Page 19 FAQ  No DAB reception. Please perform factory reset (see System section) and extend the antenna. Move your DAB radio closer to the window. Radio reception is poor Check that the antenna is extended for optimal reception. Check that you do not have other electronical equipment too close to your radio, causing interference.
