INSTALLING THE CONTROLLER

The Ice Qube TMS controller is shipped complete with mounting hardware and electrical cables for easy installation. Cables
include a power cable for connecting to VDC power supply, VDC power and controller function cables for connecting the
controller to the thermoelectric thermal management system.
NOTE: Installation should be done by a qualified technician. All electrical connections should be made with
circuits de-energized. Check local codes or with authority having jurisdiction.
QD-ENG-68 Rev0 7/12/16
Controller for Thermoelectric Thermal Management

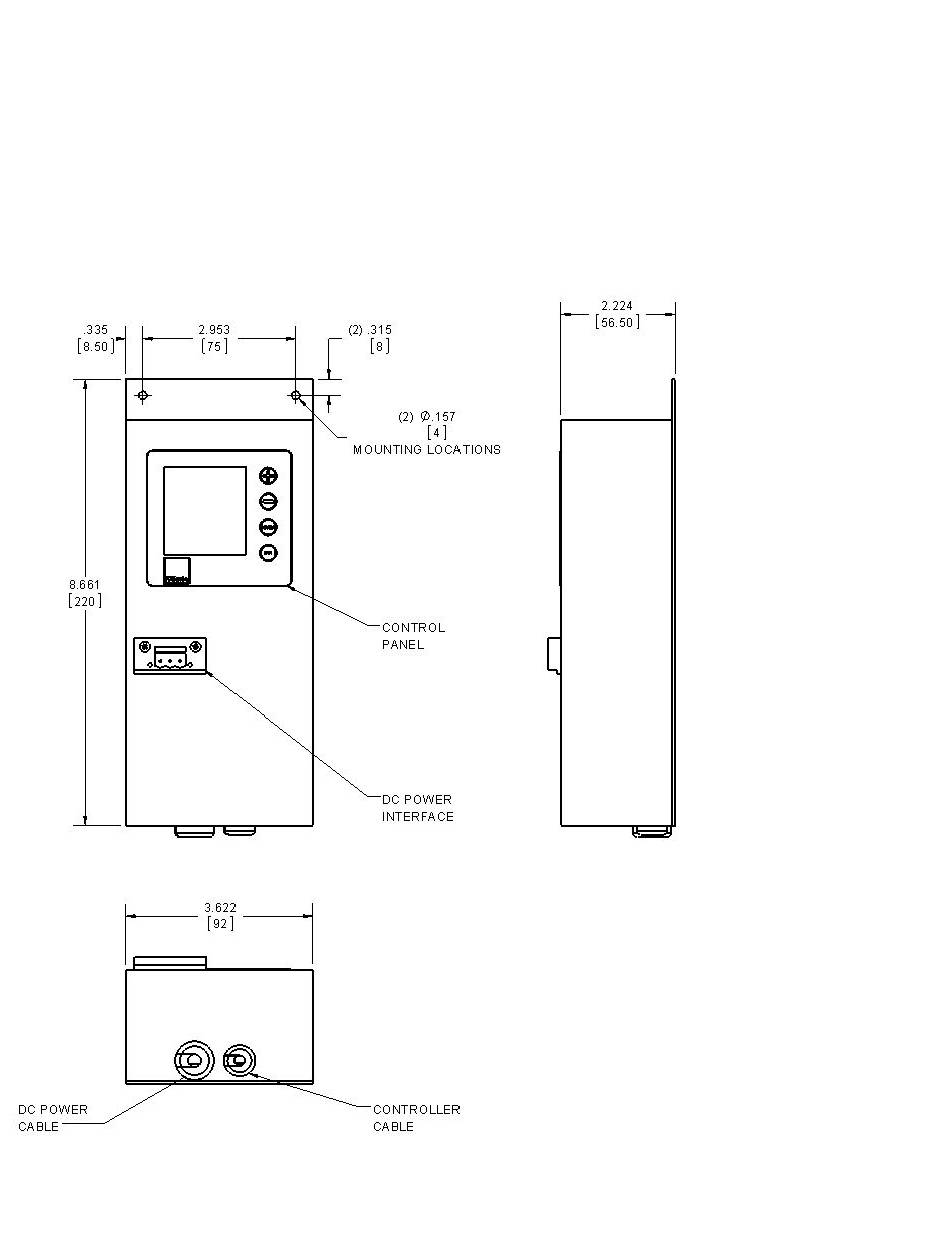

Figure 1. Controller Mounting (not to scale)
QD-ENG-68
- 1 -
1.
Determine a location for
the controller. See drawing for
mounting hole dimensions and
requirements. Check that cable
length is sufficient to interface
with
power
supply
thermoelectric unit.
2.
Route the DC power
cable
and
controller
exiting from the bottom of the
controller to the thermoelectric
unit. Insert the cable connectors
into the mating connector on the
thermoelectric unit. Check the
connectors are secure.
3.
Insert the power cable
connector (shipped loose) into
the DC power interface on the
front of the controller. Route the
power cable to Class 2 DC
power supply. Check that the
power
supply
is
grounded
and
of
sufficient
capacity to meet the power
requirements
of
thermoelectric unit. See model
specifications
or
label
electrical power requirements.
Connect
the
wires
positive, negative and ground
(PE)
to
the
corresponding
terminals on the power supply.
Check that all connections are
proper and secure.
and
cable
properly
the
for
labeled
