  • Page 1 SMART TRACKER USER MANUAL...
  • Page 3 GSM GPS tracker User manual instruction...

  • Page 4: Table Of Contents

    Operation modes ..........14 Normal mode ..............14 Anti-hijack mode ............15 Service (Valet) mode .............16 Devices registration mode ........17 Satellites tracking ..........21 GSM control commands ........21 Tracker installation and connection ....29 Configuration ............. 34 Using M66 tracker with StarLine E9 alarm systems......34...
  • Page 5 Attention! Prior to use security system carefully read this manual paying special attention to the sections marked and check whether this security system is suitable for your car, considering car manufacturer’s requirements and car operation manual. The security system is a complicated technical device implying connection to the car circuits related to engine operation.
  • Page 6 The manufacturer shall not be responsible for losses and injuries caused by failure to observe the safety rules and requirements outlined in this manual. To avoid possible misunderstandings, keep the documents enclosed to the security system at sale. If there is no sale (purchase) date specified, the warranty period is counted from the date of security system manufacture.
  • Page 7 Safety precautions during charging of your car’s storage battery Remember that any battery charging process implies supply of voltage exceeding the rated 12 V to the storage battery and accordingly to the car circuit, which may damage car electronic equipment and additional installed equipment in your car.
  • Page 8 All the aforesaid devices and modes may cause uncontrolled supply of increased voltage over 25 V and up to 60 V to the car circuit and cause car electronics and security system components failure. The light-up method should not be used for storage battery charging.

  • Page 9: General Description

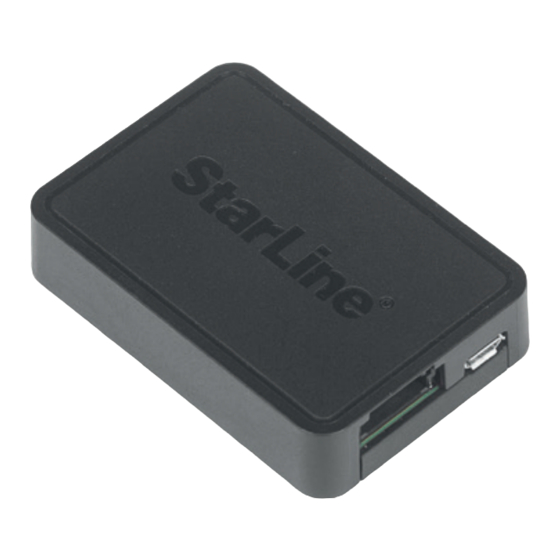

    General description StarLine M66 GSM GPS smart tracking device (hereinafter referred to as the tracker) is designed to monitor location and routes of vehicles with 12/24V on board voltage. Also it can immobilize vehicle remotely with owner command via text message or mobile App (Anti-hijack option).

  • Page 10: Owner Id Card

    • Emergency disarm code — to override security mode and unlock engine start if enabled. • Service code — to enter and program the main unit settings in StarLine Master software. ATTENTION! Do not share an emergency override code with anyone.

  • Page 11: Wireless Tag

    The wireless tag ATTENTION! The tags in factory package are in transport power saving mode, i.e. off. This mode is indicated with yellow and red LED flaching on a tag button push. Before use push the button several times until LED turns to green flash on every push.
  • Page 12 GLONASS coordinates are obtained Tracker is connected to computer with violet StarLine Master started Tag battery replacement To replace a tag battery open the housing neatly with a thin flat item. Put a new CR2032 type battery inside, observing the right polarity (negative down and positive up).

  • Page 13: Technical Specification

    Technical specification Parameter Value 2G Quad band GSM GPRS GSM standard 850/900/1800/1900 MHz SIM cards quantity 1 nano SIM card GSM antenna design integrated Radio short-range channel Bluetooth Smart • CAN • 1 USB External interfaces • 1 universal input •...

  • Page 14: Operation Modes

    Operation modes The tracker is controlled with SMS text messages, wireless tag, personal account at starline.online StarLine mobile App. Normal Mode In normal mode tracker allows to drive when registered owner ID tag is detected in operation range. If tag is not in range then engine shall be blocked and SMS alert sent to owner phone number.

  • Page 15: Anti-Hijack Mode

    SMS message 31 YYYY (where YYYY is the confirmation 31 YYYY code) to the system number within 10 minutes. 2) command from the mobile application StarLine.

  • Page 16: Service (Valet) Mode

    SMS command 30 XXXX 30 XXXX (where xxxx is emergency disarm code) or a command from the StarLine mobile application (you also need to enter emergency disarm code). If a wrong emergency disarm code is entered 3...

  • Page 17: Devices Registration Mode

    3) command from StarLine App 4) command from starline.online account Switching to service mode will be indicated with yellow LED light. Service mode is disabled with one of the following methods: 1) push and hold a tag button withing 3 sec...
  • Page 18 Login Emergency disarm code Password Service (Valet) code Login and password for access to starline.online private account If a wrong emergency disarm code is entered 3 times, then code entry shall be suspended for 15 min with corresponding SMS alert submitted to an owner phone.
  • Page 19 LED flash and SMS message. If tag pairing failed then LED lights up red. 5) Repeat steps 1 to 3 for the remaining tags. 6) Pair a smartphone with use of StarLine mobile App. Paring code is 000000. Successful paring shall be confirmed with SMS message.
  • Page 20 8) Exit from the device registration mode will be confirmed by SMS message with the number of registered devices. Registration of StarLine R6 wireless relay unit: 1. Switch ignition Off. 2. Disconnect BAT, OUTPUT and INPUT R6 wires from vehicle circuits.

  • Page 21: Satellites Tracking

    After exit from Registration mode M66 switches to Disarmed mode and remains in it until tag is detected and then lost in operating range. Satellites tracking Tracking is carried out in GPS and GLONASS navigation systems. Vehicle position and routes are monitored at starline.online account or mobile App.
  • Page 22 1234 40, where: 1234 - is a sample (default) GSM password, 40 - command code. The alerts and permissions rules for M2-M4 phones are managed in starline.online personal account. The list of SMS commands is given in the table. SMS command...
  • Page 23 SMS command Command meaning text Device registration mode enter, where REG ХХХХ REG ХХХХ ХХХХ— emergency disarm password Registered devices list request REG? REG? 45 45 SIM-card balance and GSM+GPRS BALANCE BALANCE connection level request MONEY MONEY Flexible logics program enable, where N –...
  • Page 24 SMS command Command meaning text Request on GSM connection level, battery voltage, system software INFO INFO version 0000ХХХХ 0000ХХХХ 0000 ХХХХ 0000 ХХХХ Record new guest GSM - password, where ХХХХ - new password GSMPSWХХХХ GSMPSWХХХХ GSMPSW ХХХХ GSMPSW ХХХХ 0050XXXXYYYY 0050XXXXYYYY Record new emergency disarm...
  • Page 25 SMS command Command meaning text Record new М2 tel. number, where 0002XYXXX 0002XYXXX X – alarm call alert setup (1 – enable 0002 XY XXX 0002 XY XXX alert, 0 – disable alert), M2XYXXX M2XYXXX Y – alarm SMS alert setup (1 – enable alert, 0 –...
  • Page 26 SMS command Command meaning text Emergency M1 number change, where: ZZZ9900PINXYXXX ZZZ9900PINXYXXX ZZZZ - GSM password; ZZZ 9900 PIN ZZZ 9900 PIN PIN – emergency disarm password, XY XXX XY XXX X – alarm call alert setup (1 – enable alert, 0 –...
  • Page 27 SMS command Command meaning text Enable turning to roaming SMS – alert 00522 00522 with automatic GPRS disable 00523 00523 Enable GPRS in roaming 00524 00524 Disable GPRS in roaming 009401 009401 Enable all commands for M2 tel. number, allowed for M1 М2+ М2+ 009400...
  • Page 28 SMS command Command meaning text Record internet access APN for the active SIM card, where: NAME – APN address, mandatory parameter (for example, APN NAME APN NAME internet.mts.ru) LOGIN PSW – login and password for LOGIN PSW LOGIN PSW access, not mandatory parameters (for example, mts mts) If no any parameter is specified, so APN settings will be erased.

  • Page 29: Tracker Installation And Connection

    Tracker placement recommendations The tracker must be placed so that its cover (side with the StarLine logo) is pointing towards the sky. When installing the body of the tracker must not be obscured by metal objects and coatings. The...
  • Page 30 Connection diagram...
  • Page 31 Cut one of the factory engine control circuits and connect an additional blocking relay. The blocking type – normally open (NO) or normally closed (NC) can be configured in the StarLine Master application. Normally closed blocking type is set by default.
  • Page 32 Example of normally open blocking connection...
  • Page 33 Example of normally closed blocking connection Green wire – connection to vehicle ignition circuit. Brown wire and brown-white wire – connection to vehicle CAN bus interface wires.

  • Page 34: Configuration

    Program is available for download at help.starline.ru Using M66 tracker with StarLine E9 alarm systems M66 tracker can be used as external GSM GPS extension module for StarLine E9 alarm systems. It’s paired via Bluetooth Smart bringing the following features: •...
  • Page 35 Software setup and upgrading The software setup and upgrading for each device is performed separately. To program and upgrade M66 tracker use a service code from M66 personal ID card. To program and upgrade E9 alarm system use a service code from E9 personal ID card.
  • Page 36 2) Switch M66 tracker into registration mode. Send SMS command REG XXXX XXXX, where XXXX - emergency disarm code from M66 personal ID card. Wait for the confirmation SMS text message: «Device successfully registered: external control unit». 3) Registration finish shall be confirmed with 2 flashes...
  • Page 37 2. Load StarLine Master software. 3. Enter to device settings. 4. Find «General operation modes» section in «General settings» tab and select the «Smart tracker» mode. 5. Register all the previously registered to StarLine M66 devices (tags, smartphones, relay module R6).
  • Page 38 The manufacturer reserves the right to modify and improve the product design and technical features without prior notice.
