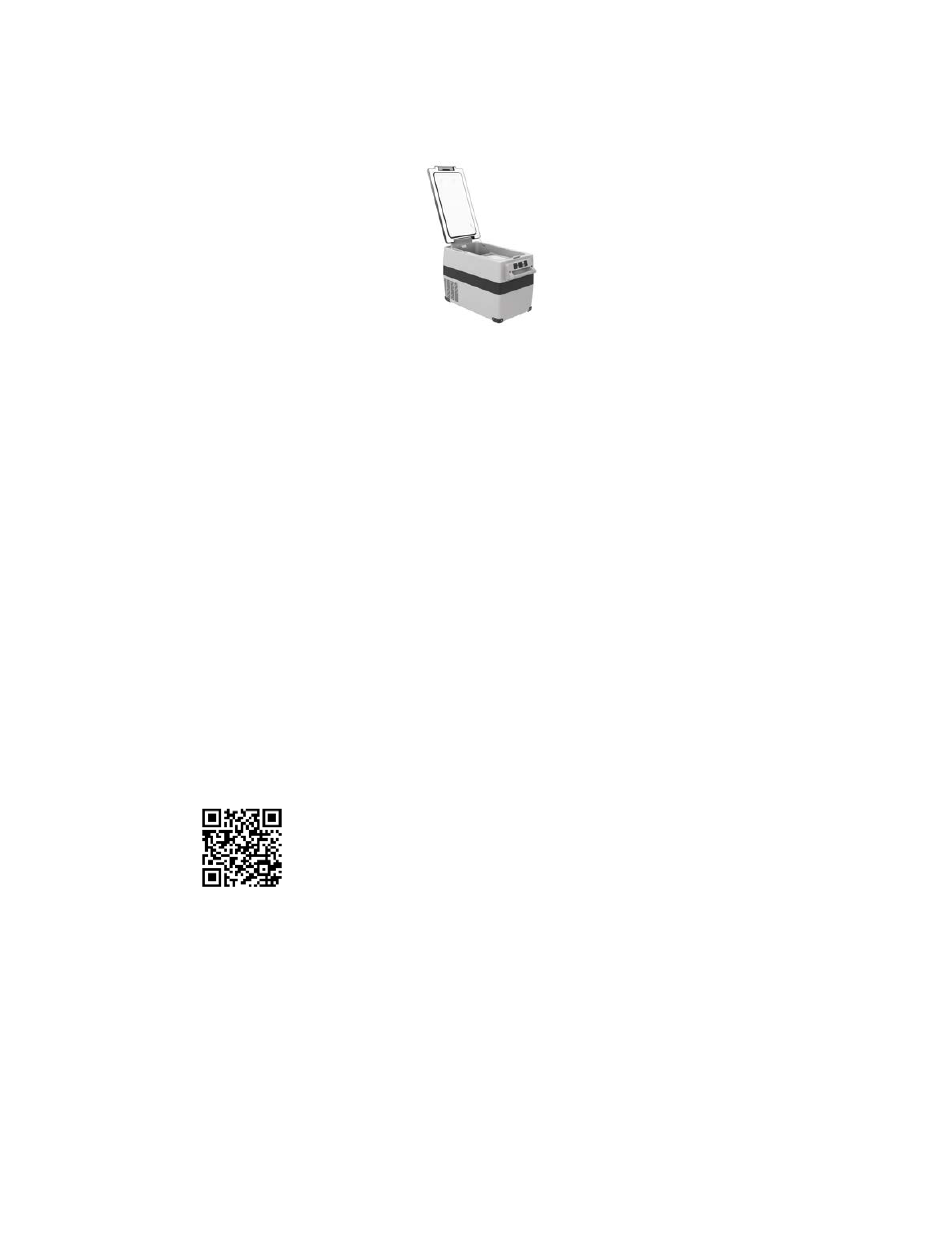

ITEM # EC47Q 47 QUART ELECTRIC COOLER/FREEZER INSTRUCTION MANUAL READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT. This manual provides important information on proper operation & maintenance. Every effort has been made to ensure the accuracy of this manual. These instructions are not meant to cover every possible condition and situation that may occur.
PRODUCT FEATURES • High-efficiency DC compressor and conversion module • CFC free • Great heat insulation • Cooling Temperature Range: minus 4°F ( minus 20°C) to 68°F (20°C) (when based on 77°F / 25°C room temperature environment) • Intelligent battery protection system helps prevent draining your battery •...
Page 3
Failure to obey these warnings could result in malfunction of your device and possible injury for yourself and other users. • Do not operate the device if it is visibly damaged. • Do not block the gaps of the device with things like pin, wire, etc.
SPECIFICATIONS Rated Voltage DC 12V / 24V Rated Power Input 60 Watt Capacity 47 Quart / 1.5 Cu. Ft Sound Noise Level 45 dB Climate Class T / ST / N / SN -4°F / -20°C 77°F (25°C) Temperature Range PRODUCT FEATURES •...
FUNCTION AND OPERATION • Power Supply: connect to e i t h e r DC 12V 24V or AC 100~240V power supply. • Display Screen Initialization: the screen will be on for 2 seconds after connecting to the power supply. •...
Page 6
Recommended Temperature For Common Foods Drinks Vegetable Meat Fruits Delicatessen Wine Ice cream 5° ( 41° 5~8° ~ 46°F) 3~10°C 37~50°F 4°C / 39°F 0°C / 50 °F 0°C / 4°F 8°C / 0°F Cleaning: • Unplug the device first to avoid electric shock. •...
TROUBLESHOOTING Issues Suggestions Check if the switch is Check if the plug and socket are connected well. Refrigerator does not work Check if the fuse has been burnt. Check if the power supply is malfunctioned. Switching on/off the fridge frequently may cause start delay of the compressor.
