Listen Technologies LCS-122-01 Quick Start Manual

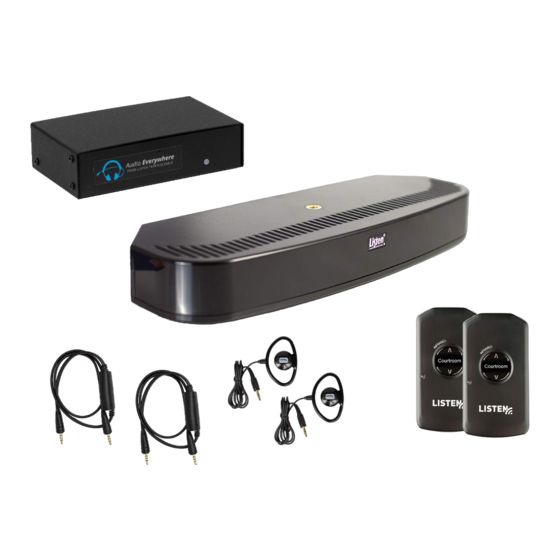

Wi-Fi/IR COMBO COMPLIANCE SYSTEMS
LCS-122-01 and LCS-122-01-D
LISTEN EVERYWHERE SETUP
Audio Source
Power Input
Line Level Audio
Smartphone
TROUBLESHOOTING TIP
Experiencing a lack of signal? Check IP addresses on the Venue Server
and smartphones to ensure they are on the same network.
CLOUD SERVER SETUP (optional)
Cloud Services offers in-app marketing features including banner ads
& promotional videos, web-based remote setup & maintenance, and
advanced customization. Create an account with Cloud Services by
visiting the Listen Everywhere registration page:
tech.com/listen-everywhere/registration
You will receive an email with login credentials to
erywhere.com once attended to by a technical services specialist
during operating hours.
*Serial number looks like: LEL6-2345-43RF-TEW9
Let's get this audio started!
Cloud Services
100P LE Server
Router
Ethernet Switch
WAP
(Wireless Access Point)
Wireless
router combines
many features
www.listen-
services.listenev-
1. Connect Audio
Connect the audio source(s) to the
LE server via the terminal block
connectors on the rear panel.
LW-100P units may use the
enclosed RCA connection cable
provided.
Internet
Note: The input connectors accept
line-level audio inputs. The RCA connec-
tors on the LW-100P units are unbalanced
sum-to-mono inputs. If stereo is required,
connect the audio source(s) to the (1)L
and (2)R connectors and then select,
"stereo", in the Cloud Service (see Cloud
Service Setup).
2. Network Connection & Power
Connect the LE server to your local
area network (LAN) via the Ether-
net port on the server rear panel,
then plug in the power cable. A
flashing blue power LED indicates
the server is booting up. Once a
network connection has been
established, the blue power LED
will turn solid. The enclosed Cat 6
cable may be used to connect the
LE server to the network router or
switch. The LE server and smart-
phones must be on the same
network.
Quick Tip: 2.4 GHz bands tend to have
higher traffic; 5 GHz or dual-band access
points are recommended in high-traffic
areas
3. Download App
Download the Listen EVERYWHERE
app. Join the Wi-Fi network associ-
ated with the Venue Server (i.e., on
the same LAN). Launch the app,
select channel to stream, enjoy!
Available on Google Play & the
Apple App Stores.
QUICK START GUIDE
