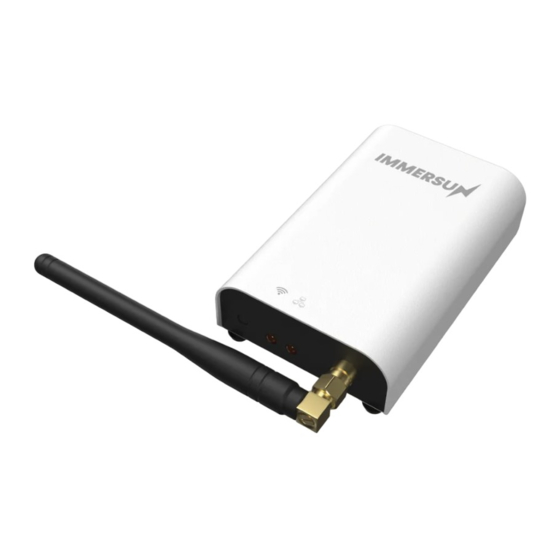

immerSUN iLink Installation & User Manual

This is a guide to the installation and setup of the
enable remote data monitoring and control of
the MYIMMERSUN app and website.
Installing the CT clamp
This part of the installation concerns the IMMERSUN unit only
To get the full functionality of the
app, it is necessary for the
the power from the inverter. This is done by
installing an additional CT clamp around the
inverted AC Live cable.
CT clamp wired to CT2 in
IMMERSUN or Wireless Sensor
Often the easiest place to install the additional CT is
in the consumer unit that houses the MCB for the
inverter. Alternative the CT can be installed inside
the AC isolator or the inverter.
Isolate the MAIN SWITCH in the consumer unit and
clip the CT clamp around the LIVE cable to the
microgeneration inverter.
Wireless Sensor
If your
MUST connect the additionl CT clamp to the CT
CT Clamp around the PV LIVE cable in
plugin the Wireless Sensor unit.
consumer unit
iLINK
IMMERSUN
MYIMMERSUN
IMMERSUN
WARNING LIVE CABLES!
IMMERSUN is using a Wireless Sensor, you
Installation & User Guide
Connecting the iLINK
1. Screw the supplied antenna to the antenna connector on the
to
2. Fit the corrent plug type to the mains adapter for your country
via
3. Pluf the mains adapter cable into the bridge and into the socket nearby your router
4. Connect the bridge to a spare LAN port on your internet router using the supplied
Ethernet lead
Pairing the iLINK
Pairing with your
Make sure the Bridge is in pairing mode (the
status LED should be flashing RED).
On the IMMERSUN
button and scroll down the Advanced Settings, press
✔ again to enter the Advanced Settings.
You will be asked for a passcode, the default passcode is 0000.
Once in the advanced settings menu, scroll down to the
Now scroll down to Cloud IP and press the ✔. Set this 51.52.112.77 if not already.
Press X and then scroll down to
button. After a few minutes the
Updating the IMMERSUN firmware
To support all functions of the
likely that you will need to update the firmware in the
IMMERSUN.
On the IMMERSUN unit bring the menu with the ✔ button
again and enter Advanced Settings.
You will be asked for your Passcode, the default
passcode is 0000. Once here troll down to
and press ✔.
to measure
In this menu, you will see Update Firmware, highlight and press this option with ✔.
The current firmware and latest versions will be shown. Wait a few seconds for this to
update. Pick the latest upto date firmware and and press ✔ to update your firmware. NOTE:
This can take a long time (about an hour)
Remote control options
The remote control options of the
can be enabled or dissbaled via the
menu within Advanced Settings under Remote
Control, press ✔ to activate.
Updating iLINK firmware
If there is a problem with the
iLINK may need to be updated. If required the process is as follows:
1. Unplug the mains adapter lead from the back of the iLINK
2. Press and hold the Pair button, with the button still held, plug the mains
adapter back in.
3. Keep the Pair button held for 10 seconds, then release the button. the
immerLINK LED should flash RED and GREEN very rapidly
4. When the LED has stopped flashing the update is completed
iLINK
Pairing mode
The iLINK LED will flash red when the Bridge is in paring
mode. The Bridge should automatically enter pairing mode
when first plugged in.
Press and hold the pairing button for about 5 seconds to put the
bridge in pairing mode, if required.
IMMERSUN
iLINK
unit bring up the menu with the ✔
iLINK
iLINK Search, highlight this option and press the tick
IMMERSUN should find the iLINK.
Paired and linked to Gateway
When both LEDs are green the bridge is working as it should.
It is normal to see the iLINK LED occasionally light-up
orange, this signifies that data was missed for that instant.
Note: The range of the wireless communication is usually
around 30m indoors and 200m outdoors.
Paired the IMMERSUN but not linked to Gateway
If you see the LEDs lit-up like this, the
to the Gateway.
If you are sure everything is connected and your internet is
working, try updaring the IMMERSUN
below.
MYIMMERSUN app, it is
immerLINK
MYIMMERSUN app
IMMERSUN
iLINK or new features added, the firmware in the
iLINK
as and press the ✔.
iLINK is not connected
firmware as detailed
