- Page 1 Q-U720AC 6.75’’ Capacitive Touch Screen with Apple CarPlay and Android Auto, Compatible with Wireless Connection. USB Music / Video Playback with Built-in Bluetooth and AM/FM Radio. USER’S MANUAL...
-
Page 2: Table Of Contents
Contents FCC Compliance Statement ......1 Apple CarPlay ..........16 Safety Information ........... 2 Connecting to USB Port ......16 Safety Tips ..........2 Wireless Connection ....... 16 Safety Statement ........2 Call Out / Receive Call ......17 Warning ........... 2 Play Music .......... -
Page 3: Fcc Compliance Statement
FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. -
Page 4: Safety Information
Safety Information Safety Tips Please drive according to driving regulations and obey traffic laws; Please pay attention to the warning in the manual and avoid the operations that mentioned during the installation and use. The ignoring of any warning would lead to danger; ... -
Page 5: Installation Instructions
Please do not arbitrarily change the emission frequency, increase the transmission power (including add RF power amplifier), add external antenna or use other transmit antennas; Please do not make interference to legitimate radio communication services during the using of product. Once the interference occurs, user should immediately stop using the product and the product should not be used unless the interference is disappeared;... -
Page 6: Usage Notes
Usage Notes Please use this product in 9~16V DC voltage range. Mismatched voltage(too high or too low) will cause damage to the product and the battery of the vehicle; Please use the 15A fuse; Please operate the product at the temperature of -20°C to +70 °C; ... -
Page 7: Front Panel

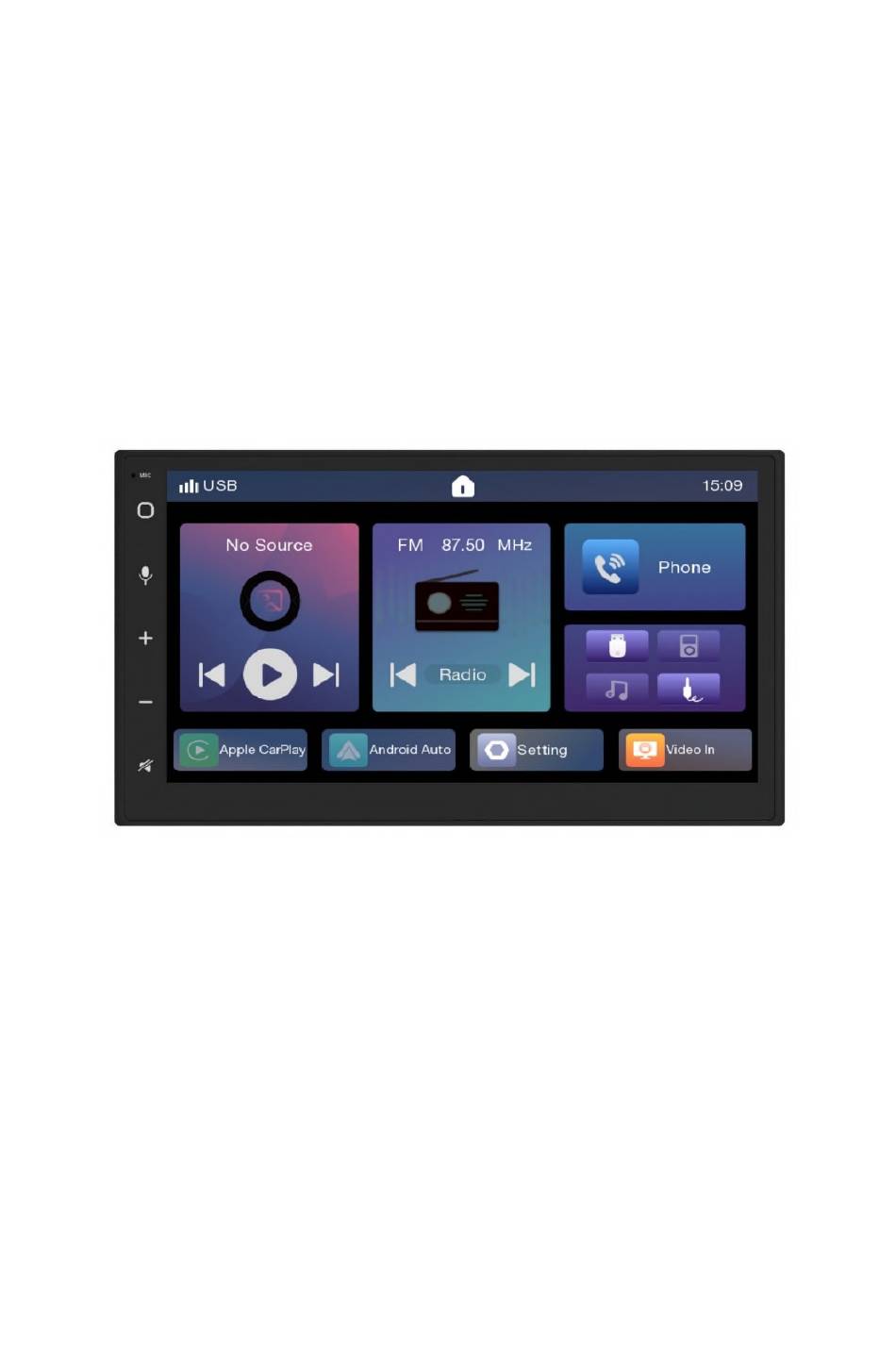

Front Panel ① ② ③ ④ ⑤ ⑥ ① Microphone ② Return to home screen ③ Enter voice page ④ Increase volume ⑤ Decrease volume ⑥ MUTE off/on... -
Page 8: Home Menu
Home Menu Touch to idle screen FM/AM Listen to FM / AM radio broadcasting; Phone Hands-free phoning; Bluetooth Play Bluetooth audio music; Android Auto Connect to Android phone; Play music/video in USB stick drive; Apple CarPlay Connect to iPhone; iPod Connect to iPhone/iPod;... -
Page 9: Radio
Radio FM/AM Switching 】to alternate switch between FM and AM ; Or touch【 】and then Touch【 】【 】to switch; choose【 Automatic Search and Storage Station 】to automatic search and save station; When search is completed, the first radio station is 1. -
Page 10: Collect Station
Collect Station The area below the currently playing radio station is the radio station collection area; Touch【 】to collect current station, touch【 】to play the station; 】to replace with current station; 2.Touch and hold【 Media Player Insert USB Flash Drive with media files. Supporting Format 1. -
Page 11: Play Video
Touch 【 】, select【 】to show the All Music Tracks list , select【 】to 】to show the Albums list , select【 】to show show the Artists list , select【 】to show the Playlists list. Drag up and down the list, touch the the Genres list or select【... -
Page 12: View Picture
View Picture 】, then touch【 】to show the list of picture. Drag When playing music or video, touch【 】or【 】to view previous or up and down the list, touch the selected picture to view; Touch【 】to preview all pictures; Touch【 】to return to the list. -
Page 13: Content Search
Content Search 】and enter characters to find what you want; 1. Touch【 】to fast search the file by the first letter; 2. Touch【 Switch Tracks 】or【 】, switch to previous or next music； Touch【 Play/Pause 】to play, touch【 】to pause; Touch【... - Page 14 【 】Order mode; (Play the songs in the list in order) 【 】Shuffle mode; (Shuffle songs in the playlist) 【 】Non-repeat mode; (If the current is in “Order mode”, it will stop playing until the last song is played) 【 】All repeat;...
-
Page 15: Hands-Free
Hands-free The Bluetooth connection is not available when Apple CarPlay is on. Search Bluetooth Device Please make sure that the device you desire to connect has been turned on and allowed to be detected; Using a mobile device to search the product, the name Q-U720AC_XXXX will be displayed on your mobile device;... -
Page 16: Automatic Connection
pairing code and touch pair, at last wait for the connection. Automatic Connection If the connected device is out of the operating range, the Bluetooth connection will be disconnected automatically. If user does not close the Bluetooth function, the Bluetooth is automatically reconnected when the device returns to the operating range in few minutes. -
Page 17: Call Out / Receive Call
Call Out / Receive Call 1. Dial the phone number for calling; Select a name from the phone book to call; Choose a record in the call history for calling; When call is coming in, choose receiving or hanging up; Hands-free Mode and Private Mode 】to switch between Hands-free mode and private mode;... -
Page 18: Bluetooth Audio Music
Bluetooth Audio Music The product supports A2DP、AVRCP、PBAP and HFP protocol; Make sure Bluetooth device volume is turned to max. Switch Tracks 】or【 】to switch to previous or next music; 1. Touch【 Play/Pause 】to play, touch【 】to pause or operate on the connected device; Touch【... -
Page 19: Call Out / Receive Call
® Using Apple lightning cable or Bluetooth to connect iPhone with the product, and it will automatically show the Apple CarPlay interface; User could directly operate the common functions of iPhone on the product. Call Out / Receive Call 】in the main interface of Apple CarPlay mode for Calling; Touch【... -
Page 20: Android Auto
Bluetooth, they will be disconnected for the duration of Apple CarPlay use. Android Auto Connect Android phone by standard micro USB cable or Bluetooth, drivers can enjoy the music from their phone, show the way with Google map or other map App and make or receive a call. User need to enable Bluetooth on phones and the product at the same time. -
Page 21: Play Music
Play Music 】icon of Android Auto play music; Touch【 Exit Android Auto 】icon to return to native screen; Touch【 Google Assistant 】for using Google Assistant, such as issuing a call, playing music, opening the map and Touch【 other voice commands； Connect to enjoy external audio. -
Page 22: Settings
Settings General Settings 1. Touch to select the time zone in the region; Touch to set date, touch OK for setting done; Touch to set the time, touch OK for setting done; Open/Close 24H mode; Open/Close Auto Adjust mode ; Open/Close auto launch for Android Auto(Android Auto projection mode is active or not);... -
Page 23: Advance Settings
Advance Settings Enter password 0000 1. Steering wheel control; 2. Open / Close static reversing trajectory; 3. Open / Close the Screenshot mode; 4. Enter static reversing trajectory adjust setting; 5. Touch to choose left driving position or right driving position (for Apple CarPlay), reconnect to take effect;... -
Page 24: Steering Wheel Control Key
Steering Wheel Control Key 】 is rotating, Touch the wanted items to set. Pressing one steering wheel key when the When the【 screen pop a window with “Press the physical key on the steering wheel”, the key will keep the function of the item after touching 【Confirm】with the item displaying 【Activated】(repeat all wanted items before confirm). -
Page 25: Audio Settings
Audio Settings 1. Open / Close beep, one touch one beep; Open / Close loudness effect; Regulate subwoofer effect; Adjust the volume of each source; Select the sound effect, choose it directly; Move original point to adjust the speaker output balance;... -
Page 26: Display Settings
Display Settings 1. Adjust screen brightness (when vehicle light is on, adjust moon brightness); 2. Select LED key color; Adjust LED brightness (when vehicle light is on, adjust moon brightness); 3. Recover to default values; Device Settings Touch to enter Bluetooth Setting; Touch to view Bluetooth device list;... -
Page 27: Bluetooth Settings
Bluetooth Settings 1. Open / Close Bluetooth; Open / Close automatic connection; Open / Close automatic receiving; if open, the incoming call will be received automatically; 4.Open / Close automatic download PhoneBook; if open, the product will automatically download PhoneBook from mobile phone when Bluetooth connection is done(need permission of mobile phone ); 5.Touch to manual download PhoneBook;... - Page 28 Open / Close RDS function. when RDS is on, AF and TA can be selected ; Open / Close AF to re-tune to a different frequency providing the same station; Open / Close TA to receive the signal of an actual traffic announcement in progress; Open / Close Soft Mute to reduce the noise between signals;...
-
Page 29: Common Problems And Solutions
ommon Problems and Solutions When the machine malfunctions 1. Recovery to factory settings; 2. Try reigniting; 3. Please check the phenomena that are described in the table below and try to use the solutions; 4. Contact Service Center; Machine/function phenomena Solutions Check the connection, if it is broken, try to reconnect it;... -
Page 30: Interface Definition
Interface definition RADIO PARKING+SPEED VIDEO IN EXT MIC POWER+AUDIO LINE OUT+CAMERA IN+VIDEO USB(MEDIA/CP+AA) OUT+AUX IN Connector D DEFINITION LINE OUT FR LINE OUT FL VIDEO CVBS OUT LINE OUT RR LINE OUT RL LINE OUT SUB AUX R/IN AUX L/IN CAMERA CVBS IN... - Page 31 Connector E DEFINITION SPEED GROUND PARKING AMP_ACC Connector F DEFINITION GROUND GROUND EXT ACC/CAMERA POWER 12V VIDEO IN...
- Page 32 Connector G DEFINITION Rear R[-] Front L[+] Rear R[+] Front L[-] Rear L[+] Front R[+] Rear L[-] Front R[-] ANT.Power KEY A KEY B REVERSE BATTERY[+] GROUND...
-
Page 33: Wire Harness
Wire Harness...
