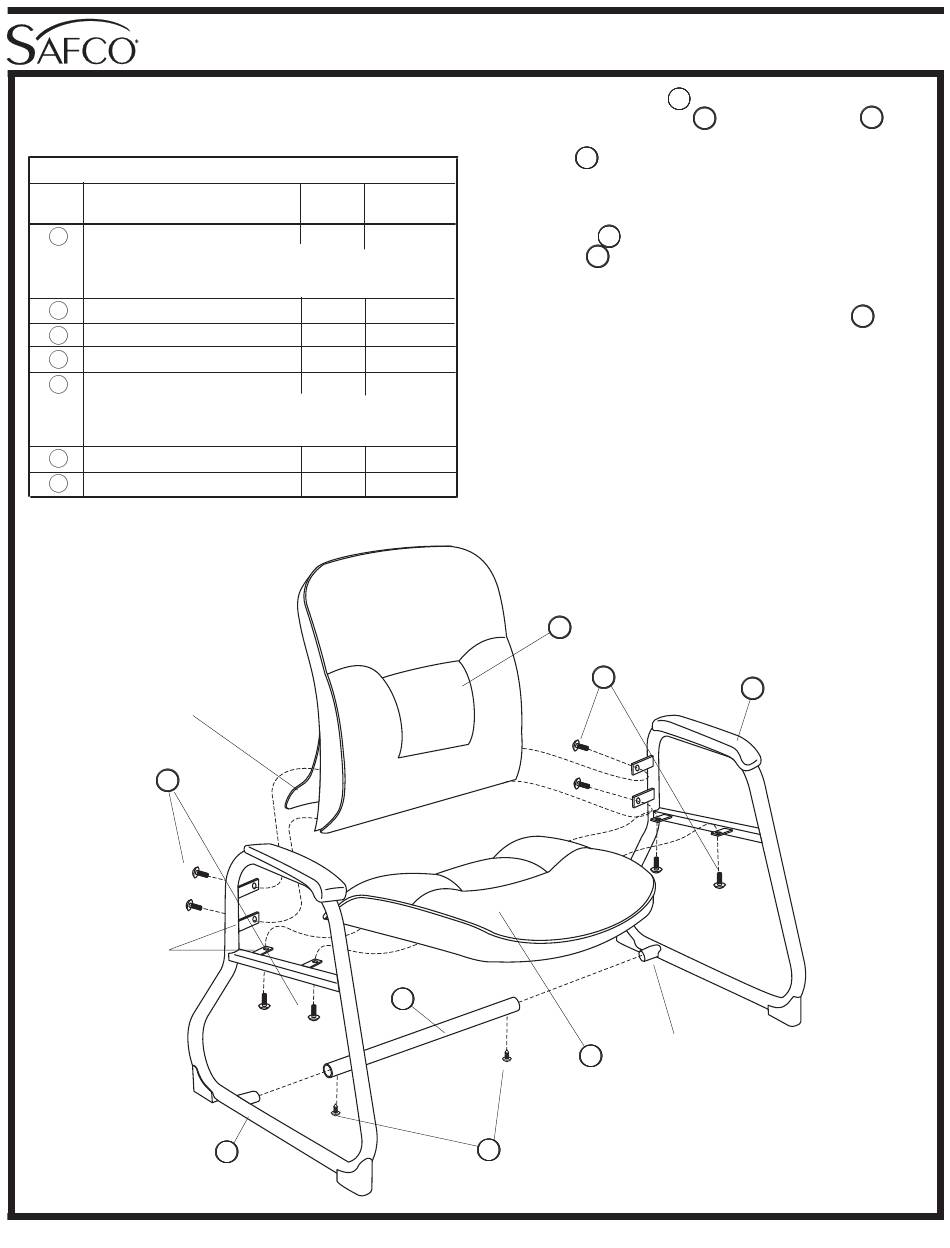

ASSEMBLY INSTRUCTIONS
READ THESE INSTRUCTIONS BEFORE STARTING
FOLLOW THE ASSEMBLY PROCEDURES CAREFULLY
PARTS LIST
LETTER
DESCRIPTION
CODE
Sheet Metal Screw
A
(temporarily installed on bottom
tube stubs of frames)
Left Frame
B
Right Frame
C
Cross Brace
D
Small Screw (Silver)
E
(temporarily installed on bottom of
seat cushion and inside back flap of back)
Seat
F
Back
G
TOOLS REQUIRED: Screwdriver
BACK FLAP
E
TABS
3473-37: 1 of 2; Rev. 1; 07/04

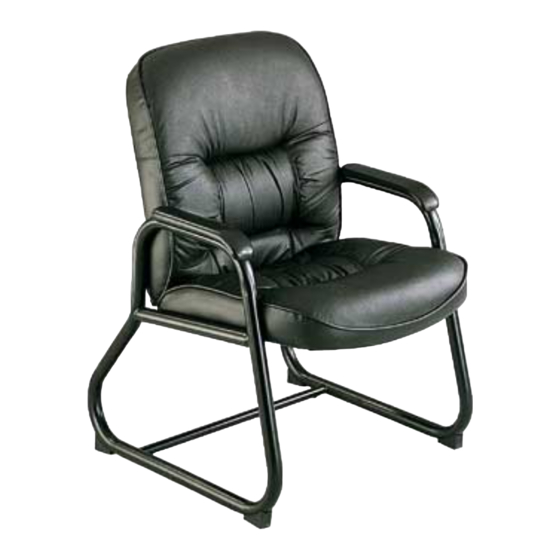

Serenity Leather Guest Chair
QTY.
PART NO.
2
3473-27
1
3473-08
1
3473-09
1
3473-07
8
3470-23
1
3473-01
1
3473-04
D
B
Safco Products Company, New Hope, MN 55428
1
Remove and save the A Sheet Metal Screws from the
bottom tube stubs of the B Left Frame and the C
Right Frame.
2
Slide the D Cross Brace onto the tube stub of the Left
Frame, carefully lining up the holes on the underside.
Secure with one of the Sheet Metal Screws. Now repeat
with the Right Frame.
3
Remove the E Small Screws (Silver) from the bottom
side of the F Seat. Place the Seat onto the tabs of the
Left and Right Frames, and fasten with the Small Screws
(Silver).
4
Carefully lift the flap on the bottom back of the G
Back, and remove the Small Screws. Place the Back
into position against the back tabs of the Frames, and
secure with the Small Screws. Straighten the flap, and
press firmly against the Back.
For questions or concerns, please call the
Safco Consumer Hot Line 1-800-664-0042
available Monday-Friday 8:00 AM to 4:30 PM (Central Time)
(English-speaking operators)
G
E
TUBE STUB
F
A
MODEL
3473
NUMBER
C
