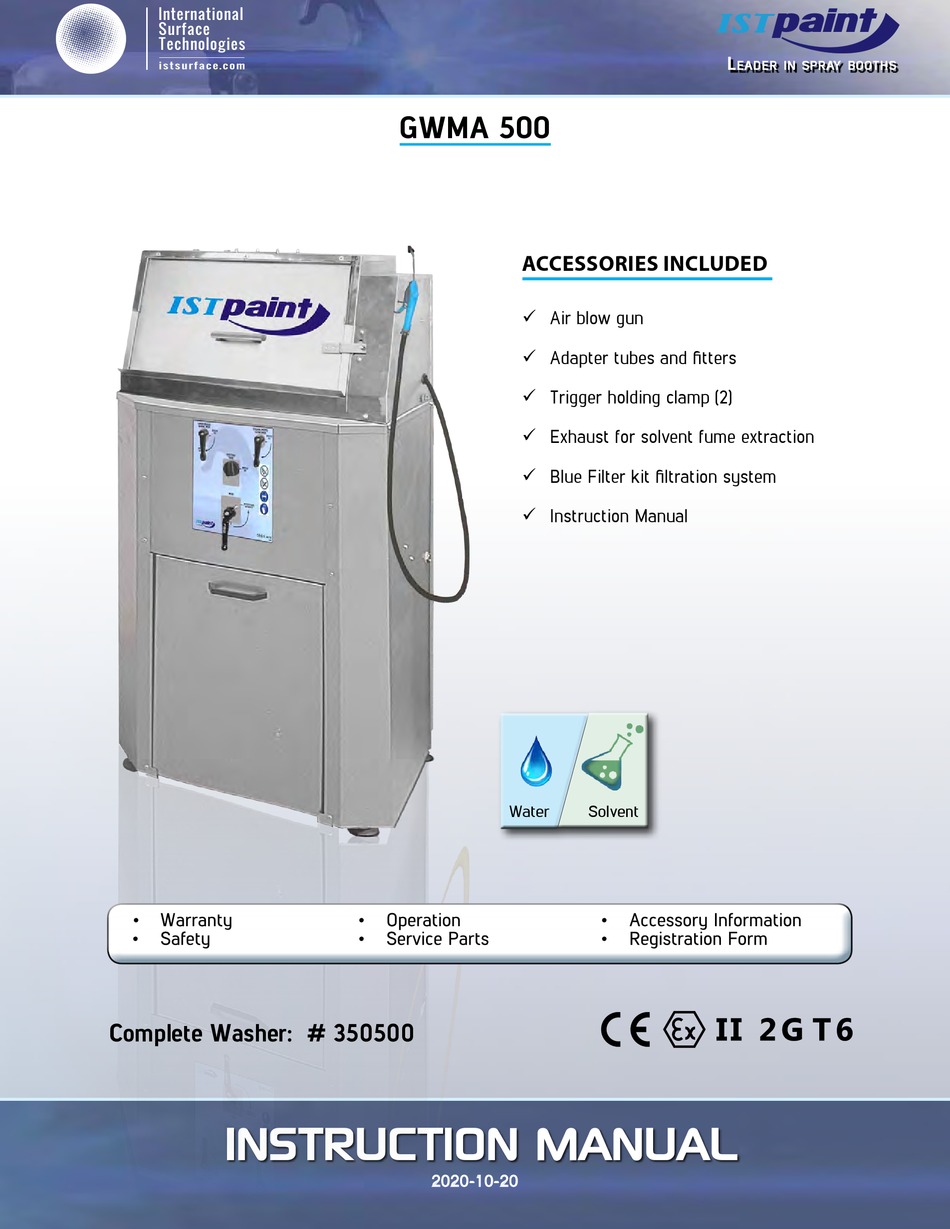

Complete Washer: # 350500
InstructIon manual
GWMA 500
Accessories included
9 Air blow gun
9 Adapter tubes and fitters
9 Trigger holding clamp (2)
9 Exhaust for solvent fume extraction
9 Blue Filter kit filtration system
9 Instruction Manual
Water
2020-10-20
L
eader in spray booths
Solvent
paint
Advertisement
Table of Contents
Summary of Contents for istpaint GWMA 500
- Page 1 International Surface Technologies eader in spray booths i s t s u r f a c e . c o m GWMA 500 Accessories included 9 Air blow gun 9 Adapter tubes and fitters 9 Trigger holding clamp (2) 9 Exhaust for solvent fume extraction...
-
Page 2: Table Of Contents
Blue filter ....................................11 health & SafetY data Sheet ............................12 air piping circuit ..................................13 technical SpecificationS ..............................13 eXploded VieW & partS liSt ............................. 14 limited WarrantY .................................. 15 WarrantY regiStration ..............................16 Spray gun cleaner Type GWMA 500... -
Page 3: Setting The Machine Up
Add two drops of air tool oil into the air side of the two pumps inside the machine. Frequence EVERY 6 MONTHS Change the blue filter cartridge and O-Ring gasket (inline filter) or sooner depending on Action contamination. Spray gun cleaner Type GWMA 500... -
Page 4: Installation Of Containers
[3]. WATER SOLVENT ground drain hose ¼’’nylon tube crocodile clamp Suction filter Spray gun cleaner Type GWMA 500... -
Page 5: Exhaust Installation
500. the pressure regulator and filter should be installed on the compressed air inlet of the cleaner as shown in the picture. the air pressure should be set between 76 and 100 psi. Spray gun cleaner Type GWMA 500... -
Page 6: Using The Machine : Operation
500 cleaner. We recommend to keep a waste paint drum beside the machine to reclaim waste paint. Clean Rinse... -
Page 7: Operating The Cleaner
Wash mode selection valve to manual Wash and turn the clean rinse valve to the horizontal position (d). for an efficient cleaning, ensure the spray gun is well positioned under the cleaning nozzle (e). Spray gun cleaner Type GWMA 500... -
Page 8: Auto Wash - Gravity Spray Gun
(g), and release the cradle to lock the spray gun in place (h). 6. Start auto WaSh (see page 7, image A) Spray gun cleaner Type GWMA 500... -
Page 9: Auto Wash - Suction Spray Gun
6. lock the trigger using the trigger clip (f). 7. mount the spray gun supply tube onto the tapered nozzle and the paint cup on the nozzle as indicated on the picture (g). 6. Start auto WaSh (see page 7, image A) Spray gun cleaner Type GWMA 500... -
Page 10: Manual Wash
4. Start clean rinSe (see page 7, image d) and position the spray gun under the higher tap for rinsing with clean water/solvent (e). Air bloW drY dry thoroughly the spray gun (A), the cup (b) and other disassembled parts (c) using the air blow gun. Spray gun cleaner Type GWMA 500... -
Page 11: Blue Filter
• ensure the o-ring seal (4) is properly in place and screw the blue cap on the thread and screw it firmly in place using the cartridge key. • the cartridge (3) must be in place as shown on the picture b. Spray gun cleaner Type GWMA 500... -
Page 12: Health & Safety Data Sheet
Accidental Ingestion – Do not induce vomiting, seek medical attention. SPILLAGE OF SOLVENT Contain and collect with non-combustible materials E.g. sand and earth. Do not allow to enter drains. Exclude sources of ignition. Ventilate area. Spray gun cleaner Type GWMA 500... -
Page 13: Air Piping Circuit
Dimensions (H x W x D) 60” X 28” X 15 ¾” Weight 126 lb Air input 76/100 psi Air input connection ¼” NPT Warranty Parts / Pump 2 years / 5 years Product No. 350500 Spray gun cleaner Type GWMA 500... -
Page 14: Exploded View & Parts List
15 324831 mode Valve assembly (includes brush, hose, and couplings) 16 324826 50 psi regulator (for Blow gun) 34 324806 trigger clip (pack of 5) 17 324821 Blow gun with tip 35 324843 gunwash pressure regulator & gauge Spray gun cleaner Type GWMA 500... -
Page 15: Limited Warranty
The following items are not covered under the IST warranty policy : - Parts or chassis replacement due to normal wears. Report all accidents or negligence involving IST products to our Service Department : 1 877 629-8202 Spray gun cleaner Type GWMA 500... -
Page 16: Warranty Registration
WArrAnTY regisTrATion ISTpaint would like to thank you for your recent purchase of our product line. Please complete the card below and either mail or fax it to our office so that we may start the warranty of your product and keep you up to date on the EPA regulations by fax.
