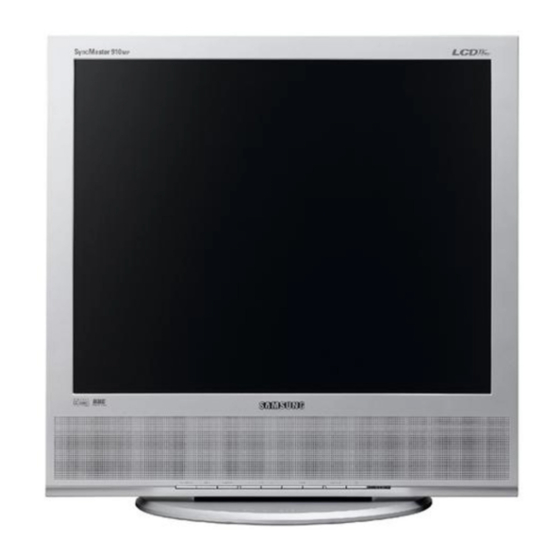

  5. 910MP - SyncMaster 19" LCD Monitor
  6. Service manual

Samsung 910MP Service Manual

Tft-lcd monitor
Hide thumbs Also See for 910MP:
Table of Contents

Advertisement

Quick Links

SERVICE
TFT-LCD MONITOR
TFT-LCD MONITOR
Chassis
MZ19FS
Manual
CONTENTS
4. Alignment & Adjustments
Model
910MP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 910MP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samsung 910MP

Summary of Contents for Samsung 910MP

  • Page 1: Table Of Contents

    TFT-LCD MONITOR Chassis Model MZ19FS 910MP SERVICE Manual TFT-LCD MONITOR CONTENTS 1. Precautions 2. Product Specifications 3. Disassembly & Reassembly 4. Alignment & Adjustments 5. Troubleshooting 6. Exploded View & Parts List 7. Electrical Parts List 8. Block Diagram 9. Wiring Diagram 10.
  • Page 2 Samsung Electronics Co.,Ltd. This Service Manual is a property of 416, Maetan-3Dong, Yeongtong-Gu, Suwon City, Gyeonggi-Do, Samsung Electronics Co., Ltd. Korea, 443-742 Any unauthorized use of Manual can be Printed in Korea punished under applicable International P/N : BN82-00125A-00 and/or domestic law.

  • Page 3: Precautions

    1 Precautions 1 Precautions Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock. 1-1 Safety Precautions 1-1-1 Warnings For continued safety, do not attempt to modify the circuit (READING SHOULD board.
  • Page 4 1 Precautions 1-2 Servicing Precautions WARNING: An electrolytic capacitor installed with the wrong polarity might explode. Caution: Before servicing units covered by this service manual, read and follow the Safety Precautions section of this manual. Note: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions, always follow the safety precautions.

  • Page 5: Product Specifications

    2 Product Specifications 2 Product Specifications Designed to be suitable for both NTSC and PAL types, this product can be used world-wide. 2-1 Specifications Description Item LCD Panel TFT-LCD panel, RGB vertical stripe, normally white, 19-Inch viewable, 0.2895 mm pixel pitch Scanning Frequency Horizontal : 31 kHz ~ 81 kHz (Automatic) Vertical...
  • Page 6 2 Product Specifications 2 Product Specifications 2-2 Pin Assignments 2-2-1 15 Pin signal cable connector Sync 15 Pin signal cable connector Type Separate H/V Composite H/V Pin No. Green Green Blue Blue GND (DDC Return) GND (DDC Return) GND-Red GND-Red GND-Green GND-Green GND-Blue...
  • Page 7 2 Product Specifications 2-3 Timing Chart This section of the service manual describes the timing that the computer industry recognizes as standard for computer-generated video signals. Table 2-1 Timing Chart Definition of Terms "Activer"Video Blanking Video Back Top/Left "Addressable"Video Bottom/Right Front Back Porch...
  • Page 8 2 Product Specifications 2 Product Specifications Table 2-2 Timing Chart...
  • Page 9 2 Product Specifications Table 2-3 Timing Chart...
  • Page 10 2 Product Specifications 2 Product Specifications Table 2-4 Timing Chart...
  • Page 11 2 Product Specifications Table 2-5 Timing Chart...
  • Page 12 2 Product Specifications Memo...

  • Page 13: Disassembly & Reassembly

    3 Disassembly and Reassembly 3 Disassembly and Reassembly This section of the service manual describes the disassembly and reassembly procedures for the MZ19FS LCD Monitor. WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling these components. 3-1 Disassembly Cautions: 1.
  • Page 14 3 Disassembly and Reassembly 3-2 Reassembly Reassembly procedures are in the reverse order of disassembly procedures.
  • Page 15 4 Alignments and Adjustments 4 Alignments and Adjustments This section describes to adjust LCD monitor after replacing EEPROM, Main PBA or Panel. 4-1 DDC jig installation Monitor (need to adjust) Parallel Cable (25Pin) MTI-2055 PC system DDC Manager (to input DDC data) Signal Cable 4-2 How to execute DDC 1.
  • Page 16 Select “Station : Write station”. Check “Serial No and Week : Don’t change” Click “Save” 3. Click “Open” icon. Select “Connected Port #1” and Next “OK”. * File Name - 910MP.DDC : Analog Press enter key on your keyboard. 4. Confirm the “DDC OK”.
  • Page 17 4 Alignments and Adjustments 4-3 Factory Mode Adjustments 4-3-1 Factory Mode Admission Power off MUTE Power on 4-3-2 Factory Mode OSD NCE-NA GAMMA BLE MODE BLE GAIN BLE TILT STATIC BLE CUT OFF-NA R CUT OFF B CUT OFF G CUT OFF WHITE DRIVE -NA R DRIVE B DRIVE...
  • Page 18 4 Alignments and Adjustments Adjust R Offset G Offset B Offset R Gain G Gain B Gain PC/DTV Auto Color Option Suwon America Suwon Korea Suwon Japan Suwon PAL SESK PAL SEMEX America ..Help Menu Auto-Auto Clear-EEPROM Check Sum Panel Information Reset Bus-Stop...
  • Page 19 4 Alignments and Adjustments 4-3-3 Adjustment(Applicabile Only to Micom Program Adjustments) Adjustment - PC Auto Color Service ▶ DDP Part ▶ VSP Part ▶ Sud Adjust ▶ Adjust ▶ PC Auto Color ▶ Option ▶ Checksum ▶ Panel Infomation ▶ Reset ▶...
  • Page 20 4 Alignments and Adjustments Memo...

  • Page 21: Troubleshooting

    5 Troubleshooting 5 Troubleshooting 5-1 No Power Does DC 13V, 5V WAVEFORMS Check Inverter/Adaptor Board. appear at CN600? Does DC 3.3V Check related circuit of IC602. appear at R608? Does DC 3.3V Check related circuit of IC601. appear at C602? Check IC700(VCTI-D2), IC202(Micom) and IC300(MST51510).
  • Page 22 5 Troubleshooting 5-2 No Video (PC Signal) WAVEFORMS Power Indicator is green. Does a signal appear at C105,C106 and Check related circuit of CN101. C107(R,G,B Input)? Does a signal appear at Check related circuit of CN101. R114,R110(H/V Sync)? Does a signal appear at pin 1~30 Check related circuit of IC300.
  • Page 23 5 Troubleshooting 5-3 No Picture (TV) WAVEFORMS Does a signal appear at Check CN700 and Tuner. PIN1, 2 of FT700(X6966M)? Does a signal appear at (PIN71,72,73, Check related circuit of IC700. 74,75,78,79,80) of IC700? Does a signal appear at PIN1~30 of CN301 Check IC300.
  • Page 24 5 Troubleshooting 5-4 No Picture (VIDEO/S-VIDEO/SCART ) Does a signal appear at WAVEFORMS C740(VIDEO)/C742,C744 Check CN506. (S-VIDEO)/C741(SCART)? Does a signal appear at (PIN71,72,73,74, Check related circuit IC1700. 75,78,79,80) of CN501? Does a signal appear at PIN1~30 of CN301 Check IC300. (LVDS output)? Replace LCD Panel.
  • Page 25 5 Troubleshooting 5-5 No Sound(TV) Does a signal WAVEFORMS appear at pin1, 2 Check CN700 and Tuner. of FT700(X6966M)? Does a signal appear at Check related circuit IC700. R563, R566? Does a signal appear at Pin5, 2, 9, 16 of IC55 Check related circuit IC55.
  • Page 26 5 Troubleshooting 5-6 No Sound(VIDEO,S-VIDEO,SCART) Does a signal appear at C740(VIDEO)/,C742,C744 Check CN506, CN508, CN713. (S-VIDEO)C741(SCART)? Does a signal appear at Check related circuit IC700. R563, R566? Does a signal appear at Pin5,2,19,16 of IC55 Check related circuit IC55. (SL/SROUT)? Check the Speaker L/R.

  • Page 27: Exploded View & Parts List

    6 Exploded View & Parts List 6 Exploded View and Parts List You can search for updated part codes through ITSELF web site. URL : http://itself.sec.samsung.co.kr/...
  • Page 28 6 Exploded View & Parts List Memo...

  • Page 29: Electrical Parts List

    7 Electrical Parts List 7 Electrical Parts List You can search for updated part codes through ITSELF web site. URL : http://itself.sec.samsung.co.kr/ 7-1 Main PCB Parts Level Code No. Loc. No. Description Specification Remarks MZ19FS STZ-MZ19FS SDI,TN-ZPD BN94-00642A ASSY PCB MAIN...
  • Page 30 7 Electrical Parts List Level Code No. Loc. No. Description Specification Remarks 0406-001163 D518 DIODE-TVS CDS3C05GTA,6.4V/-/-,-,SMD 0406-001163 D703 DIODE-TVS CDS3C05GTA,6.4V/-/-,-,SMD 0406-001163 D704 DIODE-TVS CDS3C05GTA,6.4V/-/-,-,SMD 0406-001163 D705 DIODE-TVS CDS3C05GTA,6.4V/-/-,-,SMD 0501-000280 Q512 TR-SMALL SIGNAL KSA1182,PNP,150mW,SOT-23,TP,70 0501-002080 Q100 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 0501-002080 Q300 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 0501-002080...
  • Page 31 7 Electrical Parts List Level Code No. Loc. No. Description Specification Remarks 2007-000074 R101 R-CHIP 100ohm,5%,1/10W,TP,1608 2007-000074 R102 R-CHIP 100ohm,5%,1/10W,TP,1608 2007-000074 R105 R-CHIP 100ohm,5%,1/10W,TP,1608 2007-000074 R117 R-CHIP 100ohm,5%,1/10W,TP,1608 2007-000074 R118 R-CHIP 100ohm,5%,1/10W,TP,1608 2007-000074 R119 R-CHIP 100ohm,5%,1/10W,TP,1608 2007-000074 R120 R-CHIP 100ohm,5%,1/10W,TP,1608 2007-000074 R123 R-CHIP...
  • Page 32 7 Electrical Parts List Level Code No. Loc. No. Description Specification Remarks 2007-000084 R601 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 2007-000084 R602 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 2007-000084 R7142 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 2007-000084 R781 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 2007-000087 R743 R-CHIP 6.8Kohm,5%,1/10W,TP,1608 2007-000087 R744 R-CHIP 6.8Kohm,5%,1/10W,TP,1608 2007-000087 R745 R-CHIP 6.8Kohm,5%,1/10W,TP,1608 2007-000090 R116 R-CHIP...
  • Page 33 7 Electrical Parts List Level Code No. Loc. No. Description Specification Remarks 2007-001167 R770 R-CHIP 75ohm,5%,1/10W,TP,1608 2007-001167 R771 R-CHIP 75ohm,5%,1/10W,TP,1608 2007-001167 R772 R-CHIP 75ohm,5%,1/10W,TP,1608 2007-001167 R773 R-CHIP 75ohm,5%,1/10W,TP,1608 2007-001167 R774 R-CHIP 75ohm,5%,1/10W,TP,1608 2007-001167 R775 R-CHIP 75ohm,5%,1/10W,TP,1608 2007-001179 R703 R-CHIP 8.2Kohm,5%,1/10W,TP,1608 2007-007852 R534 R-CHIP...
  • Page 34 7 Electrical Parts List Level Code No. Loc. No. Description Specification Remarks 2203-000189 C767 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 2203-000236 C102 C-CER,CHIP 0.1nF,5%,50V,C0G,1608 2203-000257 C613 C-CER,CHIP 10nF,10%,50V,X7R,1608 2203-000257 C621 C-CER,CHIP 10nF,10%,50V,X7R,1608 2203-000257 C705 C-CER,CHIP 10nF,10%,50V,X7R,1608 2203-000440 C352 C-CER,CHIP 1nF,10%,50V,X7R,TP,1608,- 2203-000440 C354 C-CER,CHIP 1nF,10%,50V,X7R,TP,1608,- 2203-000440 C728 C-CER,CHIP...
  • Page 35 7 Electrical Parts List Level Code No. Loc. No. Description Specification Remarks 2203-005065 C370 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,-,1608 2203-005065 C371 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,-,1608 2203-005065 C372 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,-,1608 2203-005065 C373 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,-,1608 2203-005065 C374 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,-,1608 2203-005065 C375 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,-,1608 2203-005065 C376 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,-,1608 2203-005065 C377 C-CER,CHIP...
  • Page 36 7 Electrical Parts List Level Code No. Loc. No. Description Specification Remarks 2402-001165 C734 C-AL,SMD 4.7UF,20%,35V,WT,TP,4X5.8MM 2402-001222 C721 C-AL,SMD 3.3UF,20%,50V,HR,TP,4.3X4.3X5.8MM 2409-001065 C627 C-ORGANIC 82UF,20%,16V,WT,TP,8X6.9MM,- 2703-000398 L702 INDUCTOR-SMD 10uH,10%,3225 2703-000398 L703 INDUCTOR-SMD 10uH,10%,3225 2703-001334 L200 INDUCTOR-SMD 1.5uH,10%,2012 2703-001778 L504 INDUCTOR-SMD 3.3uH,20%,3225 2703-001778 L505 INDUCTOR-SMD...
  • Page 37 CARD-01 TFT LCD,SRC,RUSSIA,S/W,120,W210*L120,INSTALL CARD BN96-00832N ACCESSORY ASSY MANUAL P-IB+QSG MZ19FS 910MP,SyncMaster,W/W,30Lang,BN59-390N,BH68-376L BH68-00376L QUICK SETUP MANUAL-04 LCDQUICK SETUP GUIDE,SYNCMASTER,E/F/S/G/P/I..13LANGS,W/W,MOJO100G,298,420 BN59-00390N S/W DRIVER-00,IB MZ19FS 910MP,WW,SyncMaster,30 Lang. BN96-01852Z UNIT/ACCESSORY ASSY ACCESSORY MZ19FS*,EDC 3705-001191 ACCESSORY CONNECTOR-COAXIAL PAL,ADAPTER(J/P),30mohm,-,- 3903-000042 ACCESSORY CBF-POWER CORD DT,EU,FP3/YES,IEC320 C13/C14,250/250V,10-16/10A,BLK,1830MM,-,H05VV-F 3X0.75MM^2,...
  • Page 38 7 Electrical Parts List Memo 7-10...

  • Page 39: Block Diagram

    8 Block Diagrams 8 Block Diagram This Document can not be used without Samsung’s authorization.
  • Page 40 8 Block Diagrams Memo...

  • Page 41: Wiring Diagram

    9 Wiring Diagram 9 Wiring Diagram...
  • Page 42 9 Wiring Diagram Memo...

  • Page 43: Pcb Layout

    10 PCB Layout 10 PCB Layout 10-1...
  • Page 44 10 PCB Layout Loc. No. Description Loc. No. Description DIODE IC610 FET-SILICON 67.3 IC700 IC MICOM 121.6 55.6 D100 DIODE-SWITCHING 28.6 IC701 IC-VOL. DETECTOR 126.30907 25.62588 D101 DIODE-SWITCHING 41.1 IC702 IC-CMOS LOGIC 107.8 D102 DIODE-ZENER 11.8 28.6 IC703 IC-CMOS LOGIC 146.2 34.5 D103...

  • Page 45: Schematic Diagrams

    11 Schematic Diagrams 11 Schematic Diagrams This Document can not be used without Samsung’s authorization. 11-1 AUDIO Part Schematic Diagram CN507 jack5p_b T102 SHORT SIG_1 PC_ARIN SIG_2 SIG_4 PC_ALIN T103 SIG_3 SHORT R517 C510 100uF R518 VCR_ALIN VCR_AIN_L D501 R519...
  • Page 46 11 Schematic Diagrams 11-12...
  • Page 47 11 Schematic Diagrams This Document can not be used without Samsung’s authorization. 11-2 MICOM & EEPROM Part Schematic Diagram +3.3V_MAIN 1.5uH L200 IRRCVR R212 LEDGRN KEY_AD1 CN203 KEY_AD2 slcon5p SPK_L+ SPK_L- SPK_R+ R219 SPK_R- VCT_SCL R220 SMAW200-10P(P) VCT_SDA CN202 C204...
  • Page 48 11 Schematic Diagrams This Document can not be used without Samsung’s authorization. 11-3 PC INPUT Part Schematic Diagram +5V_DDC +5V_IN D100 IC100 C100 R110 D102 AT24C02N-10SC R132 100nF R156 PC_VSYNC_IN E_DDC_CTL R157 PC_HSYNC_IN R114 R116 R111 2.7Kohm C102 C101 100pF...
  • Page 49 11 Schematic Diagrams 11-15 11-5...
  • Page 50 11 Schematic Diagrams This Document can not be used without Samsung’s authorization. 11-4 POWER Part Schematic Diagram +5V_IN R630 +13V_IN BL_EN +5V_IN BL_BRT C627 C629 +8V_SW_OFF 82uF 100nF IC601 IC605 SI9933ADY-T1 R612 BA178M08FP R631 C628 C610 100K 1 IN +13V_IN...
  • Page 51 11 Schematic Diagrams 11-17 11-7...
  • Page 52 11 Schematic Diagrams This Document can not be used without Samsung’s authorization. 11-5 SCALER Part Schematic Diagram AVDD_DVI AVDD_PLL AVDDA VDDP VDD_MPLL AVDD_PLL2_2.5V VDDC +2.5V_MAIN +3.3V_MAIN AVDD_DVI AVDD_PLL AVDDA VDDP VDD_MPLL AVDD_PLL2_2.5V VDDC C300 C301 C302 C303 C304 C305 C306...
  • Page 53 11 Schematic Diagrams 11-19 11-9...
  • Page 54 11 Schematic Diagrams This Document can not be used without Samsung’s authorization. 11-6 Video input Part Schematic Diagram +33V_T +1.8V_MAIN 5V_VCTi +3.3V_SW_OFF +5V_TUNER VSUP1.8FE 3.3V_VCTI VSUP3.3DAC VSUP5.0BE VSUP3.3BE VSUP1.8DIG VSUP5.0IF SHORT SHORT L700 VSUP3.3DIG SHORT R703 VSUP5.0FE 33uH SHORT 8.2Kohm...
  • Page 55 11 Schematic Diagrams 11-111 11-11...
  • Page 56 11 Schematic Diagrams 11-112...
