Related Manuals for GE GSS1800
Summary of Contents for GE GSS1800

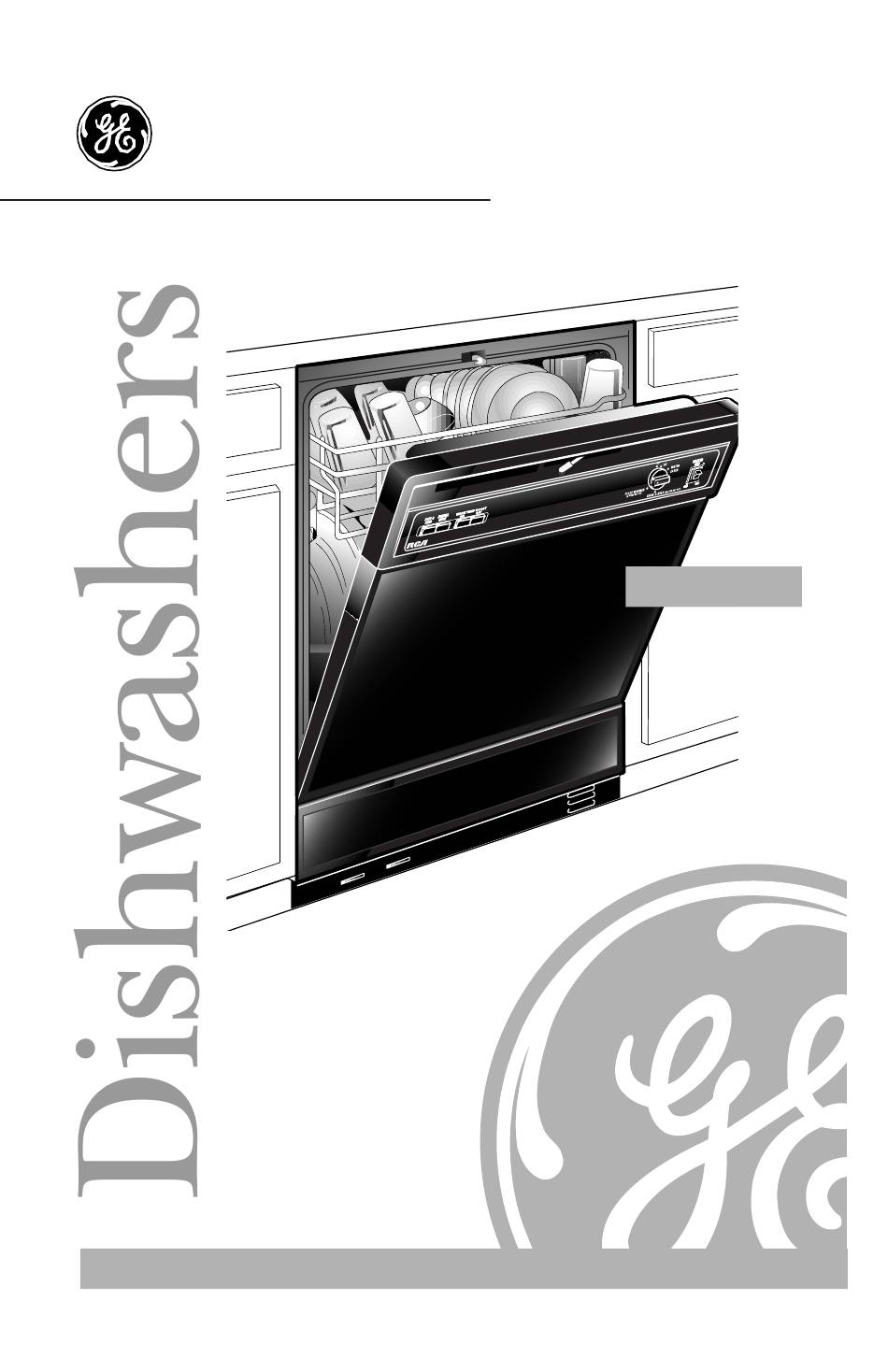

- Page 1 GE Appliances Owner’s Manual GSS1800 ® GE Answer Center 800.626.2000 Part No. 165D4700P188 Pub. No. 49-5863-1 3-99 CG 154354701...
- Page 2 Congratulations! You Are Now Part of the GE Family. Welcome to the GE family. We’re proud of our quality products and we are committed to providing dependable service. You’ll see it in this easy-to-use Owner’s Manual and you’ll hear it in the friendly voices of our customer service department.
-
Page 3: Table Of Contents
Safety Information ..4–7 GE & You, A Service Partnership. Ask any GE appliance owner and they will tell you we stand behind our products with unmatched quality service. However, did you know that most questions result from... - Page 4 IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING. WARNING! For your safety, the information in this manual must be followed to minimize the risk of fire, explosion, electric shock, or to prevent property damage, personal injury, or loss of life. WATER HEATER SAFETY Under certain conditions hydrogen gas may be produced in a water heater that has not been used for two weeks or...
- Page 5 Installation Instructions before it is used. If you did not receive an Installation Instructions sheet with your dishwasher, you can receive one by calling us toll-free at the GE Answer Center ® , 800.626.2000. Connect to a grounded...
-
Page 6: Safety Information
Cascade® enclosure panels are Automatic Dishwashing properly in place. Detergent has been approved for use in all GE dishwashers. Close supervision is necessary if this appliance is used by or Locate sharp items so that near children. they are not likely to damage the door seal. - Page 7 Features of the dishwasher (a side view). Console Upper rack Model & serial # (on right side of tub) Tower assembly Lower rack Float Normal water fill level Lower spray arm Heating element Motor Door spring Leveling legs...
-
Page 8: Control Panel
About the dishwasher control panel. You can locate your model number on the tub wall just inside the door. Throughout this manual, features and appearance may vary from your model. POTS & PANS NORMAL WASH HEATED HEATED DRY ON DRY OFF LIGHT WASH DRYING RINSE &... - Page 9 Cycle Sequence Water Time Cycles (approx.) (approx.) Cycle Sequence POTS & PANS 8.8 gal. 55 min. Wash Wash Rinse Rinse Wash Rinse NORMAL WASH 5.3 gal. 37 min. Wash Wash Rinse Rinse Rinse Rinse LIGHT WASH 3.5 gal. 28 min. Wash Wash Rinse Rinse Rinse Rinse...
-
Page 10: Using The Dishwasher
Using the dishwasher. Check the Water Temperature The entering water must be at least 120°F. and not more than 150°F., for effective cleaning and to prevent dish damage. Check the water temperature with a candy or meat thermometer. Turn on the hot water faucet nearest the dishwasher, place the thermometer in a glass and let the water run continuously into the glass until the temperature stops rising. - Page 11 Proper Use of Detergent Use only detergent specifically made for use in dishwashers. Cascade® Automatic Dishwashing Detergent has been approved for use in all GE dishwashers. Keep your detergent fresh and dry. Don’t put powder detergent into the dispenser until you’re ready to wash dishes.
-
Page 12: Loading The Dishwasher Racks
Loading the dishwasher racks. For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model. Upper Rack The upper rack is for glasses, cups and saucers. Cups and glasses fit best along the sides. This is also a secure place for dishwasher-safe plastics. - Page 13 Lower Rack When loading the lower rack, do not load large platters or trays in the front right corner. They may prevent detergent from circulating during the wash cycle. The lower rack is best used for plates, saucers, and cookware. Large items such as broiler pans and racks should go along the sides.
-
Page 14: Changing Color Panels
Changing color panels. If you are redecorating, you can change your dishwasher’s front panels to match or blend with your new colors by flipping them over. Each side of each panel is a different color. WARNING! Wear gloves when handling door panels. Failure to do so can cause serious cuts. -
Page 15: Care And Cleaning
Caring for the dishwasher. Cleaning the Pump and Spray Arms Tower The dishwasher will flush away all normal food Spray arm soils. However, objects (fruit pits, bones, etc.) may collect in openings and should be removed once in a while to avoid clogging drain system. WARNING! Pump opening Heating element... - Page 16 Caring for the dishwasher. To clean the control panel use a lightly dampened cloth then dry thoroughly. To clean the exterior use a good appliance polish wax. Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher. Protect Against Freezing If your dishwasher is left in an unheated place during the winter, ask a service technician to:...
-
Page 17: Troubleshooting Tips
Use only automatic • Correct detergent dishwasher detergents. wasn’t used Cascade® Automatic Dishwashing Detergent has been approved for use in all GE dishwashers. Use only automatic Suds in the tub • Correct detergent dishwasher detergents to wasn’t used avoid sudsing. Cascade®... - Page 18 •Try another dishwasher to darke n aluminum detergent. Cascade® Automatic Dishwashing Detergent has been approved for use in all GE dishwashers. •Make sure inlet water Dishes don’t dry Low inlet water temperature is correct. temperature •Check the rinse agent Rinse agent dispenser dispenser.
- Page 19 Problem Possible Causes What To Do Consult with dishware Dish fading Decoration which is • manufacturer. applied to a glazed surface is most susceptible Install an iron filter in the water Rust deposits Iron deposits in • supply line. water supply ®...
- Page 20 Notes...
-
Page 21: Product Registration
800-626-2224 Place your confidence in GE and call us in the U.S. toll-free at for more information. *All brands covered, up to 20 years old, in the continental U.S. - Page 22 Our service number information call the a safety modification. is 800-GE-CARES GE Answer Center ® (800-432-2737). 800.626.2000. Model Number Serial Number Important: If you did not get a registration card with your product, detach and return the form below to ensure that your product is registered.
-
Page 23: Warranty
Any part of the dishwasher which fails due to a defect in One Year materials or workmanship. During this full one-year From the date of the warranty, GE will also provide, free of charge, all labor original purchase and in-home service to replace the defective part . ®... -
Page 24: Service Telephone Numbers
Expert GE repair service is only a phone call away. Special Needs Service 800.626.2000 TDD 800-TDD-GEAC (800-833-4322) GE offers, free of charge, a brochure to assist in planning a barrier- free kitchen for persons with limited mobility. Service Contracts 800-626-2224 Purchase a GE service contract while your warranty is still in effect and you’ll receive a substantial discount.
