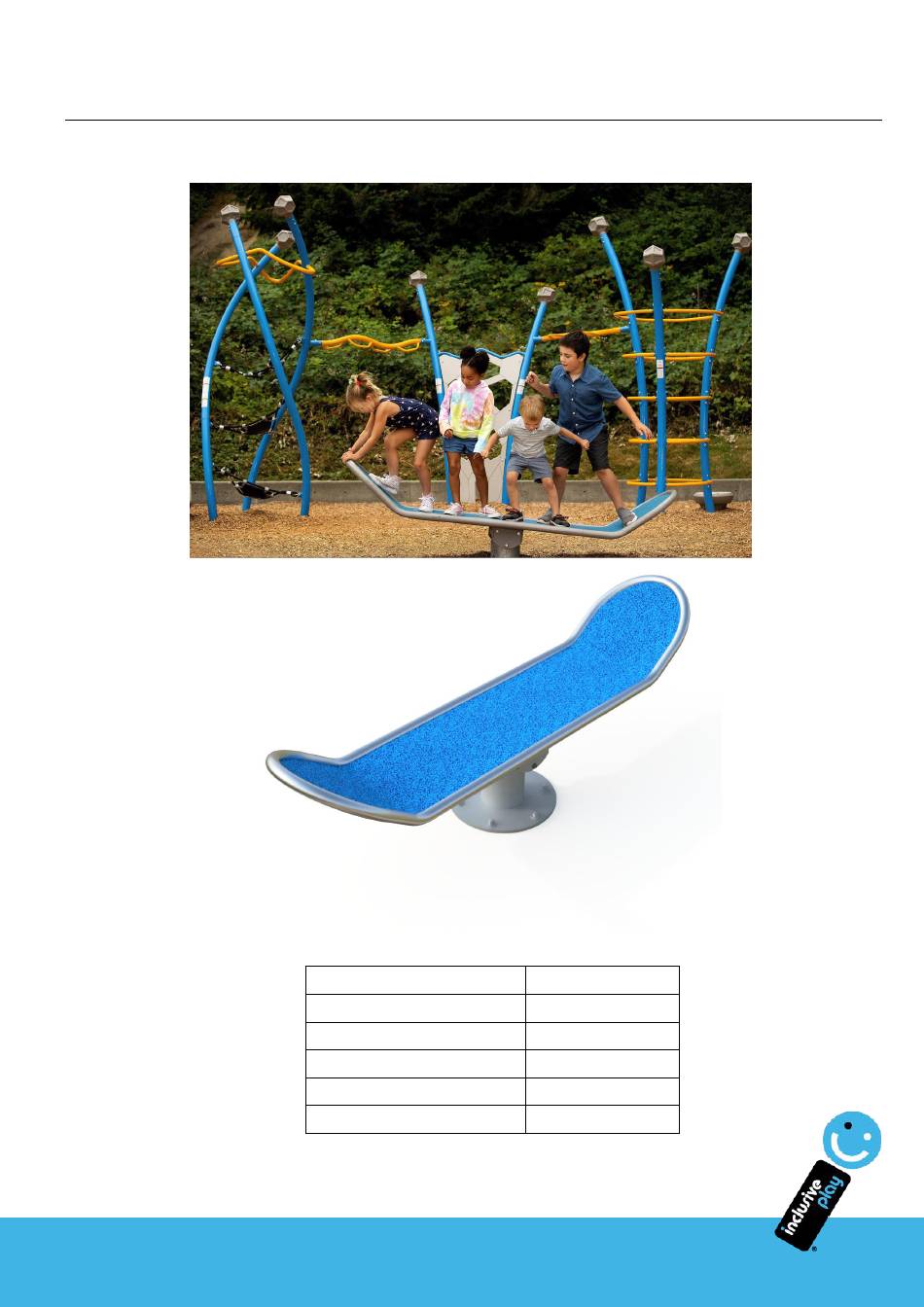

- Page 1 Installation Sheet for IP16 Surfboard Product Name Surfboard Product Code IP16 Document Release Date 18.08.2021 Document Rev Total Install Hours 4 Hours Volume of Concrete Required 0.6m³ Call us +44(0)131 214 1180 www.inclusiveplay.com info@inclusiveplay.com...
- Page 2 Installation Sheet for IP16 - Surfboard TIMELINE OVERVIEW Two people are required for the installation. Day One - 3 hours Excavate to 820mm x 760mm x 980mm. See page 3. This is for the ground anchor support and cement. Place a slab or similar hard standing base into the bottom of the excavated hole.
- Page 3 Installation Sheet for IP16 - Surfboard Within the allocated space excavate 820mm x 760mm x 980mm. 820mm Finished Ground Level 820mm Place a slab or similar hard standing base into the bottom of the excavated hole. Ensure this is level. CHECK SPIRIT LEVEL Call us +44(0)131 214 1180 www.inclusiveplay.com...
- Page 4 Installation Sheet for IP16 - Surfboard Securing the Ground Anchor Please follow these instructions as closely as possible to ensure a sound installation of the unit. Check Level Place the Ground Anchor on to the level Concrete Base and wedge into position. Ensure the Ground Anchor is level at 90°...
- Page 5 Installation Sheet for IP16 - Surfboard Detail View Ground Level 800mm Call us +44(0)131 214 1180 www.inclusiveplay.com info@inclusiveplay.com...
- Page 6 Installation Sheet for IP16 - Surfboard FIXINGS DETAIL To secure the Surfboard to the ground anchor use the 6 x M18 Stud Bolts provided. M18 Ground Anchor Stud Bolt X6 These bolts will secure the top section of the Surfboard to the ground anchor.
- Page 7 Installation Sheet for IP16 - Surfboard 2158mm Only when the cement is set ensure all fixings are tight and secure before making good the surface by packing down any gaps with the surface material. 480mm Check to ensure the installed unit is level.
- Page 8 Installation Sheet for IP16 - Surfboard SAFETY SURFACING DETAILS 3522mm 1036mm 1500mm Grass Tilies Safety Area 1000mm Safety Surfacing Area m² Wetpour Circle 16.7m² Wetpour Octagon 16.7m² Grass Tilies Call us +44(0)131 214 1180 www.inclusiveplay.com info@inclusiveplay.com...
