Summary of Contents for THEORY SB25

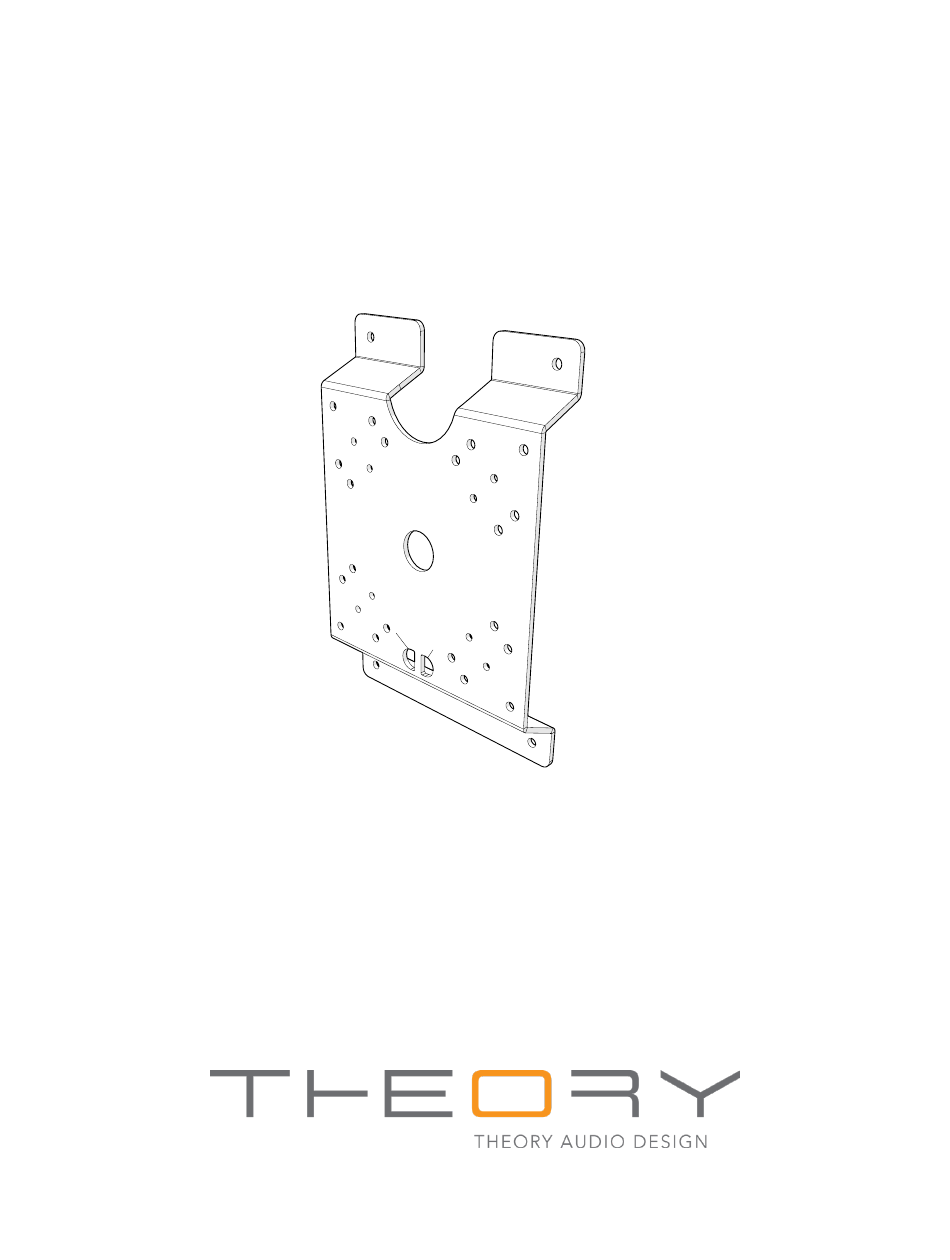

- Page 1 SB25 UNIVERSAL MOUNT ADAPTER QUICK START INSTALLATION GUIDE Rev A 210302 Theory sb25 Universal Mount Adapter...
-
Page 2: Limited Warranty
LIMITED WARRANTY Disclaimer : THEORY AUDIO DESIGN, LLC is not liable for any damage to loudspeakers or any other equipment that is caused by negligence or improper use or installation of this product, including damage caused by connecting THEORY loudspeakers and subwoofers to third party amplifiers. -
Page 3: Important Safety Instructions
13. Use only attachments/accessories compatible with products from THEORY AUDIO DESIGN, LLC. 14. Use only with hardware, brackets, stands, and components sold with the apparatus or supplied by THEORY AUDIO DESIGN, LLC. 15. Refer all servicing to qualified service personnel. Servicing is required when the apparatus is damaged in any way. - Page 4 QUICK START GUIDE - SB25 MOUNT ADAPTER FEATURES 2.75” 2.00” VESA 100mm VESA 75mm 5.00” 4.25” 1/2” RIGID CONDUIT WATERTIGHT HUB 1/4” - 20 THREAD USE SAFETY CABLE ALL APPLICATIONS FEATURES sb T-SLOT Mount Holes (4) VESA 75mm M5Threaded Mount Holes (4) VESA 100mm M5 Threaded Mount Holes (4) 2.00”...
- Page 5 (If mounting to rigid conduit, attach adapter to conduit first, see page 4) GET HELP Your Theory sb25 loudspeaker is compact, but it is heavy for its size. You will need at least one other person to lift and HEAVY! hold the speaker in position during installation.
- Page 6 QUICK START GUIDE - SB25 MOUNT ADAPTER ATTACHING ADAPTER (CONT’D) 4 - POSITION ADAPTER While the machine screws are all still loose, position the adapter so that the round cutout aligns with the loudspeaker input terminal cup. This will position the ADAPTER at the Align loudspeaker center-of-mass.
- Page 7 © 2021 THEORY AUDIO DESIGN, LLC. All rights reserved. Theory Audio Design routinely engages in programs to improve, modify and revise its products without notice or obligation. As such, your product may differ slightly from what is shown in this guide.
