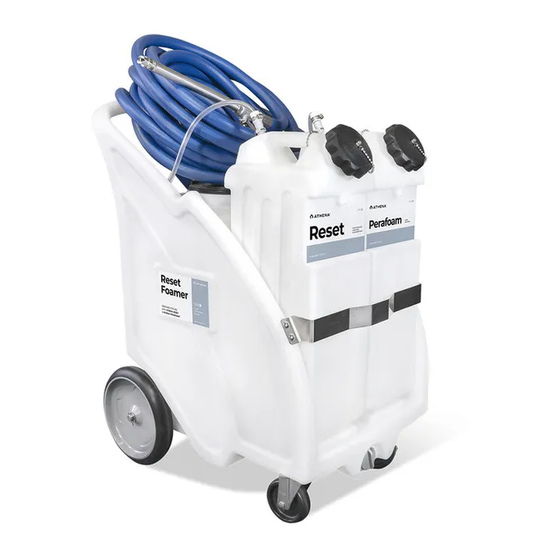

Clean Athena Reset User Manual

2-part concentrate foamer

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Reset

Foamer

2-Part

Concentrate

Foamer

User Manual

1-YEAR

MANUFACTURER

WARRANTY

READ ALL INSTRUCTIONS BEFORE USING, OR SERVICING, THIS EQUIPMENT. KEEP THIS

MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS.

English (Original Instructions)

Table of Contents

Need help?

Do you have a question about the Athena Reset and is the answer not in the manual?

Questions and answers

Summary of Contents for Clean Athena Reset

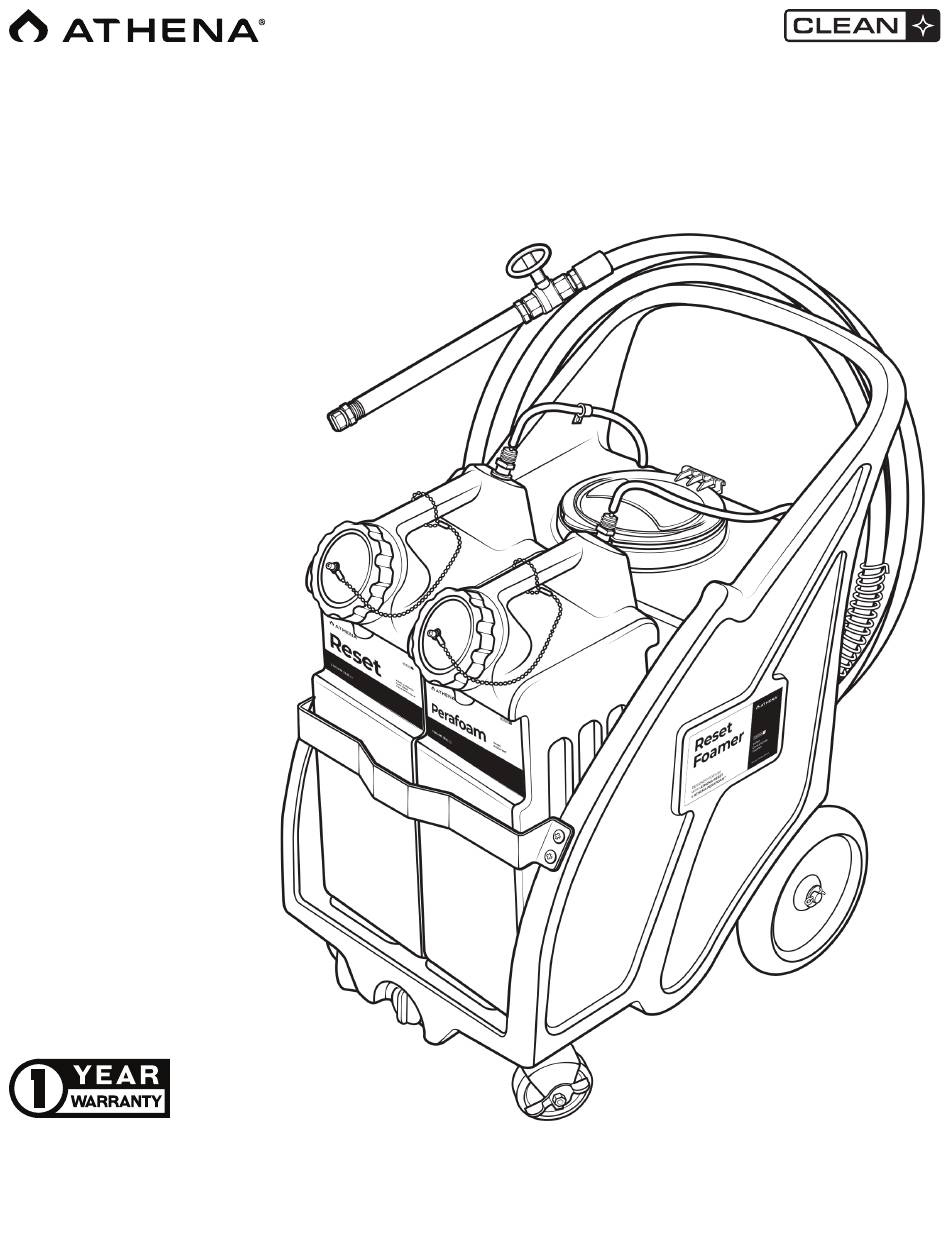

Page 1 Reset Foamer 2-Part Concentrate Foamer User Manual 1-YEAR MANUFACTURER WARRANTY READ ALL INSTRUCTIONS BEFORE USING, OR SERVICING, THIS EQUIPMENT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. English (Original Instructions)
Page 2: Table Of Contents
Contents 1. Safety ............3 2.
Page 3: Safety
Always depressurize and clean the unit after each use. Release any remaining air pressure by twisting the pressure relief valve to the right ½ turn. Never leave the unit unattended while pressurized.
Page 4 Do not use an air lubricator before the unit. Moisture in the air lines will damage the pump and diminish the pumps life. The air must be filtered, clean, dry and free of moisture. If needed, install an air dryer before the unit. PROTECT THE ENVIRONMENT Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations.
Page 5: Product Overview
2. Product Overview Product requirements Compressed air requirements 50 psi with 5-10 SCFM (141-283 l/min) Liquid temperature range 40-100˚F (4.4-37˚C) Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump Chemical compatibility seals.
Page 6: Product Components
Product components Before you begin, get to know the Athena Reset Foamer components that you will need to use, ® adjust or assemble. Back plate assembly • Inside view Hinged back plate 2. Orange metering tips 3. Dual injector 4. Suction lines 5.
Page 7 Tank assembly • Front view Tank assembly • Back view 12. Discharge ball valve 13. Foam wand with spray tip 14. Hinged cap assembly 15 Chemical jug 16. Tank 17. Drain plug 18. Air fitting Athena Reset Foamer Page 7 ®...
Page 8: Operation
3. Operation Fill the tank with water. 2. Follow all instructions from chemical manufacturer. Fill the chemical container with Dual chemical chemical concentrate. injector 2a. Fill Perafoam chemical container with Athena Perafoam. ® 2b. Fill Reset chemical container with Athena Reset.
Page 9 After Use Instructions 11. Disconnect the chemical intake lines from the chemical containers and connect it to a container of clean water. Make sure that the unit tank still contains water. 12. Activate the unit and allow it to run for 2-4 minutes, or until all chemical has been fl ushed from the system.
Page 10: Maintenance
NOTICE • Check the chemical metering tip, suction line and strainer for debris and clean as needed. Servicing, or modification, of this unit with • Drain your air compressor tank on a regular parts not listed in this manual may cause basis to help extend pump life.
Page 11: Troubleshooting
50 psi (3.4 bar), adjust the pressure by turning the knob on the top of the air regulator. • Check if the stainless steel mixing mesh is plugged. Remove and clean it by following the instructions below: The unit operates at a reduced pressure 1.
Page 12: Parts
6. Parts Wand assembly CL-HV60 CL-ST80150SS CL-SSW1210FM CL-DFP7 CL-J5BKS Jug assembly CL-JC35B-TAV CL-J5 CL-P203CT-FS CL-QCPP14HB-HAST CL-TANK-15N-C-A CL-CST5SS-L CL-QCPP-M-HAST CL-H14C CL-H38C CL-CST5SS CL-DP-A Back Plate CL-AG100 CL-CV38-AP CL-R25 CL-P56K CL-H34-50 CL-H14B-F CL-H14C CL-BPS-58SO CL-AP25 CL-H38B-F CL-NV14Y CL-CV38-AP CL-AKSS34 CL-SCI-125X2 CL-HBSSEL1438 CL-W15 CL-STR38-IL CL-HHPB3414 CL-H38B-F...
Page 13 Item number Description CL-AG100 1.5 in. dry model 20 dual scale gauge CL-AKSS34 SS anti-kink spring for 3/4 in. hose CL-AP25 Air fitting 1/4 MPT x plug-brass CL-CST5SS 5 in. S.S. Swivel caster with 4 in. wheel CL-CST5SS-L 5 in. S.S. Swivel caster with 4 in. wheel and lock CL-CV38-AP White PVC check valve 3/8 barbs - Hastelloy spring - Teflon ball CL-DFP7...
Page 14: Warranty
Reset WARRANTY Foamer Warranty; Limitations. Athena warrants that the Reset Foamer and replacement parts (“Goods”) shall be free from defects in material and workmanship under proper and normal and recommended use for a period of 1 year from the date of shipment. Goods shall be considered defective only if a defect exists that materially impairs the value of the Goods to Customer and does not comply with Athena’s specifications (or, if none, does not comply with normal industry tolerances or standards).
Page 15 EPA-registered peroxyacetic acid Athena Perafoam ® Foam Adjuvant Easily get full coverage Warning: Athena Reset and Athena Perafoam contain hazardous chemicals. Always use in accordance with instructions and wear appropriate personal protective equipment (PPE). Athena Reset Foamer Page 15 ®...
Page 16 Athena Reset Foamer ® CL-FOAM2-50...
