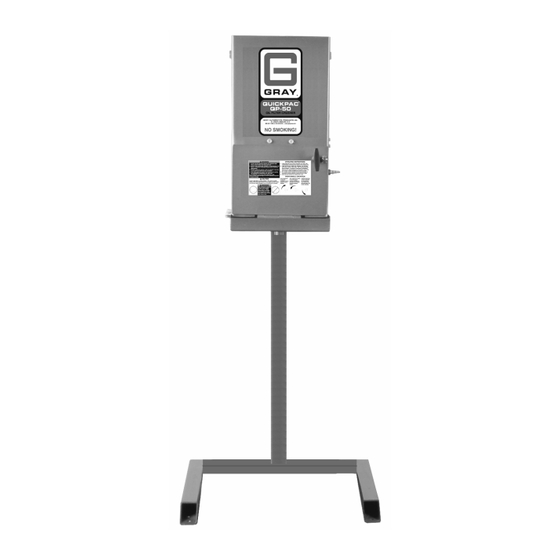

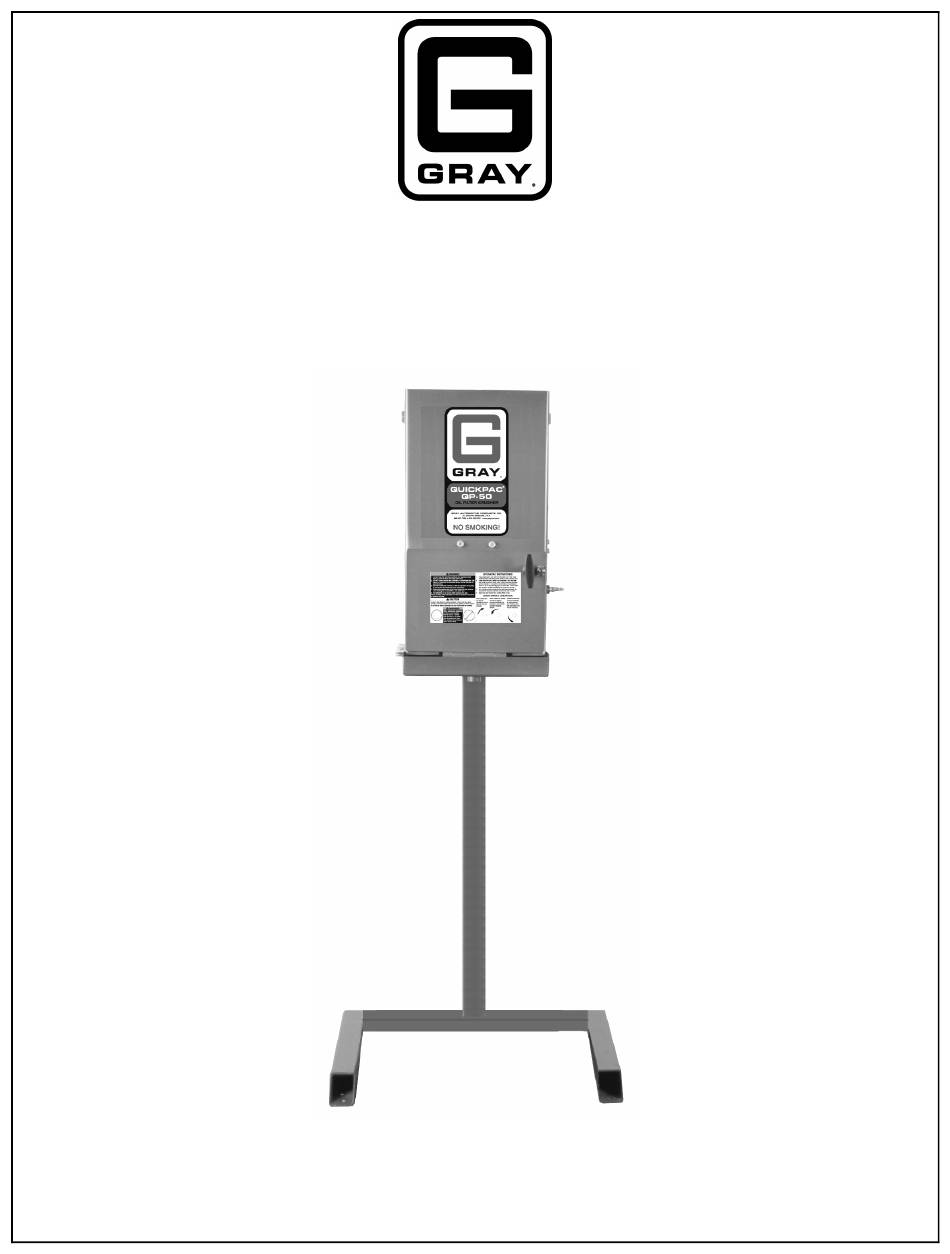

- Page 1 OWNER’S MANUAL QP-50 QUICKPAC Container Crusher READ THIS MANUAL CAREFULLY AND RETAIN FOR YOUR RECORDS...
-
Page 2: Table Of Contents
Notes ..............................9 Foreword Thank you for your purchase. With Gray products, you take part in a long history of product engineering for the transportation service industry. Company founder J. H. Gray applied for his first automotive jack patent in 1921, and since 1952 Gray has been producing the highest quality hydraulic and pneumatic equipment available for the professional service technician. -
Page 3: Receiving Inspection And Installation
Receiving Inspection and Installation Before attempting to operate this unit, thoroughly read and understand this manual. Completely remove all tape and packaging. Inspect the unit immediately upon delivery. If shipping damage is evident, inform the delivering carrier immediately and contact customer service at the numbers and address printed on the back cover of this manual. -
Page 4: Specifications
this machine is responsible for meeting all of those applicable regulations such as the handling and storage of used, crushed or uncrushed oil filters, the handling and storage of used oil, and appropriate recycling or disposal of used oil filters and used oil. The owner and / or user must have an understanding of the manufacturer’s operating instructions and warnings before using this jack. -
Page 5: Component Identification
Component Identification Features Pneumatic Powered Ram: Pneumatic power gives you the advantages of long life, low maintenance, and quick crushing action. Also no electrical connections are required eliminating the electrical hazard and the problems of dirty and/or faulty connections. Interlocking Door: The door interlock restrains the door from opening until the ram is fully raised. Convenient Operation: One hand is required to close the door and latch it. -
Page 6: Safety Instructions
Safety Instructions WARNING To avoid serious injury or death, read this manual carefully before operating this unit. Call customer service at the numbers and address printed on the back cover of this manual if you have any questions. Failure to understand and obey safety instructions may result in unsafe or improper use of this product. 1. -
Page 7: Operating Instructions
lower the crushing module to its shipping position. The unit is top heavy and can tip over if the crushing module is raised and the unit is not anchored to the floor. Operating Instructions Place empty paint can with the lid removed or oil filter with the open end down in the center of the crushing chamber. -
Page 8: Control Valve Actuation Adjustment
repairs are made. 1. All warning and capacity labels should be readable and complete. Wash external surfaces of unit and decals with a mild soap solution. 2. Clean and/or remove sludge or foreign objects from the crushing chamber. 3. Remove the catch basin and clean the sludge, semi-solid waste, and foreign material. Make sure the catch basin outlet is clear. -
Page 9: Troubleshooting
2. After the air stops flowing, check the unit for excessive leaks. An excessive leak is a leak which can be heard and which degrades the performance of the unit. Minor leaks do not adversely affect the operation of the unit. 3. -
Page 10: Notes
Notes... -
Page 11: Notes
Notes... - Page 12 Gray Manufacturing Company, Inc.. 3501 S. Leonard Road, P.O. Box 728 St. Joseph, Missouri 64502 Customer Service Hotline 800-821-7320 or 816-233-6121 Fax 816-233-7251 www.grayusa.com EMAIL- gray@grayusa.com Printed in U.S.A. © 2006 Gray Manufacturing Company, Inc.. P.N. 0-670-90147 Rev C DN121001...
