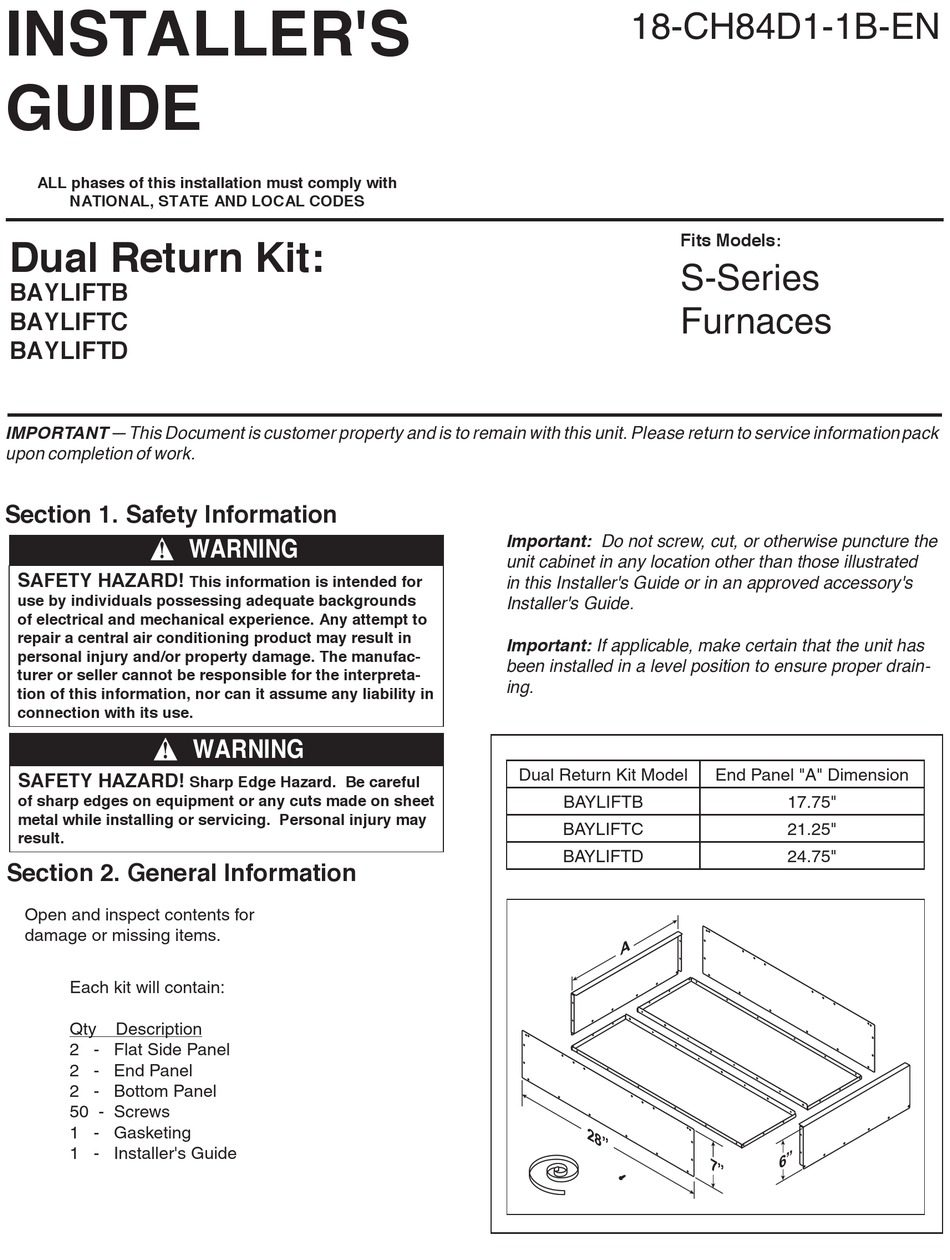

INSTALLER'S
GUIDE
ALL phases of this installation must comply with
NATIONAL, STATE AND LOCAL CODES
Dual Return Kit:
BAYLIFTB
BAYLIFTC
BAYLIFTD
IMPORTANT — This Document is customer property and is to remain with this unit. Please return to service information pack
upon completion of work.
Section 1. Safety Information
s s
SAFETY HAZARD!
use by individuals possessing adequate backgrounds
of electrical and mechanical experience. Any attempt to
repair a central air conditioning product may result in
personal injury and/or property damage. The manufac-
turer or seller cannot be responsible for the interpreta-
tion of this information, nor can it assume any liability in
connection with its use.
s s
SAFETY HAZARD!
of sharp edges on equipment or any cuts made on sheet
metal while installing or servicing. Personal injury may
result.
Section 2. General Information
Open and inspect contents for
damage or missing items.
Each kit will contain:
Qty Description
2 - Flat Side Panel
2 - End Panel
2 - Bottom Panel
50 - Screws
1 - Gasketing
1 - Installer's Guide
WARNING
This information is intended for
WARNING
Sharp Edge Hazard. Be careful
18-CH84D1-1B-EN
Fits Models:
S-Series
Furnaces
Important: Do not screw, cut, or otherwise puncture the
unit cabinet in any location other than those illustrated
in this Installer's Guide or in an approved accessory's
Installer's Guide.
Important: If applicable, make certain that the unit has
been installed in a level position to ensure proper drain-
ing.
Dual Return Kit Model
BAYLIFTB
BAYLIFTC
BAYLIFTD
End Panel "A" Dimension
17.75"
21.25"
24.75"
