Summary of Contents for Lumicon Slim

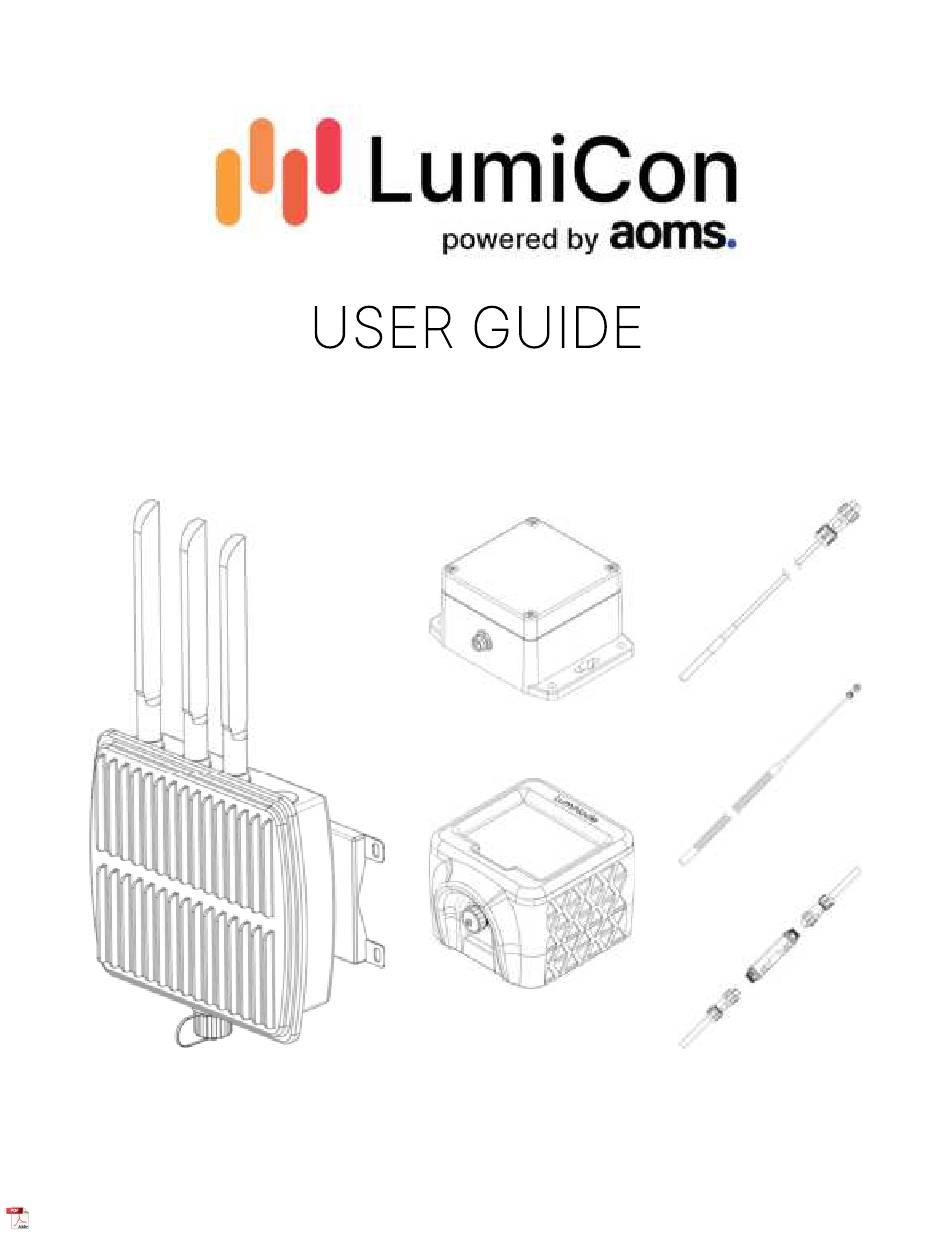

- Page 1 Version 1.6 Slim Model...
-
Page 2: Table Of Contents
System Overview and Components ...................... 2 Parts List ............................2 System Overview & System Components ..................3 Set up and Mount LumiHub (Slim Model) .................... 4 Installation Location ........................4 Antenna & Backplate Installation ....................5 Mounting and Power Connection ....................6 2.3.1... -
Page 3: System Overview And Components
Version 1.6 Last updated: 2021-09-01 YSTEM VERVIEW AND OMPONENTS 1.1 P ARTS Description Quantity LumiHub LumiHub Power Supply LumiNode As required LumiSense cables As required Zip es‡ As required ‡ Zip ties: 1 per LumiNode + 1 every 2 ft per LumiSense Cable 155 Gordon Baker Road Suite 301, Toronto, Ontario M2H3N5 Support contact: support@aoms-tech.com... -
Page 4: System Overview & System Components
Version 1.6 Last updated: 2021-09-01 1.2 S & S YSTEM VERVIEW YSTEM OMPONENTS Accessories Slim Model Wood Antenna x3 Backplate x1 Screw x4 Hose clamp x2 screw x4 LumiHub Power Supply Options 100 ft Power Supply Reel Standard Power Supply Box... -
Page 5: Set Up And Mount Lumihub (Slim Model)
Version 1.6 Last updated: 2021-09-01 ET UP AND OUNT ODEL 2.1 I NSTALLATION OCATION In typical construction sites our LumiHub covers a 500-meter radius. If a line of sight between the LumiHub and a LumiNode can be maintained, up to 2km is possible from our previous site tests. However, environmental factors particular to each job site can significantly reduce the coverage area, such as: ... -
Page 6: Antenna & Backplate Installation
Version 1.6 Last updated: 2021-09-01 2.2 A & B NTENNA ACKPLATE NSTALLATION Antennas x3 Backplate x1 Philips Screw Driver Screw x4 Ensure antennas are connected in their respective ports. Tighten by hand until no thread is visible. 155 Gordon Baker Road Suite 301, Toronto, Ontario M2H3N5 Support contact: support@aoms-tech.com | 1-877-873-1942... -
Page 7: Mounting And Power Connection
Version 1.6 Last updated: 2021-09-01 2.3 M OUNTING AND OWER ONNECTION Wall Mounting instructions (next page) Pole Mounting instructions (below) 2.3.1 Mounting to Pole Hose Clamp x2 Flat Screw Driver Mount with antennas pointing up Status Description Power Power on Static Start-up System... -
Page 8: Mounting To Wall
Version 1.6 Last updated: 2021-09-01 Wall Mounting instructions (below) 2.3.2 Mounting to Wall Wood Screw x4 Philips Screw Driver Mount with antennas pointing up Status Description Power Power on Static Start-up System Blinking System running properly Wireless sensor network LoRa is running properly Blink Slowly SIM is registered... -
Page 9: Power Supply Setup And Connection
Version 1.6 Last updated: 2021-09-01 2.4 P OWER UPPLY ETUP AND ONNECTION Power Supply Reel instructions Power Supply Box instructions (below) (next page) 2.4.1 Power Supply Box Setup Turn connector until no thread is visible Turn connectors until a click can be heard. 155 Gordon Baker Road Suite 301, Toronto, Ontario M2H3N5 Support contact: support@aoms-tech.com... -
Page 10: Power Supply Reel Setup
Version 1.6 Last updated: 2021-09-01 Power Supply Reel instructions (below) 2.4.2 Power Supply Reel Setup Turn dial on the back to lock/unlock reel Unwind the AC cable from front panel Ensure handle is pointed up Turn connectors until a Turn connector until click can be heard. -
Page 11: Set Up Lumicon Mobile Application
Version 1.6 Last updated: 2021-09-01 ET UP OBILE PPLICATION Download the LumiCon mobile application from either the Google Play Store or the Apple App Store. STEP 1 Enter the following credentials to access the LumiCon app: Authentication Code Username ... - Page 12 Version 1.6 Last updated: 2021-09-01 STEP 4 Once your project is saved, it is visible on the main page. Tap on the project that was created to access the jobs page. STEP 5 Tap on “New Job” to create a new job. STEP 6 Enter a name for pour and job name.
- Page 13 The “Link” LED on the LumiNode will start flashing. Check the LumiCon app. The latest data will now update on the app. BEST PRACTICES Only connect the LumiSense cable to the LumiNode after the job has been created and before starting on the LumiCon app.
-
Page 14: Lumisense And Luminode Installation
Version 1.6 Last updated: 2021-09-01 ENSE AND NSTALLATION Zip ties (1 per LumiNode + 1 every 2 feet of LumiSense cable) Tighten connector until no thread is visible Ensure zip ties are placed and secured at every 2 feet of the rebar. Point face towards the LumiHub, for the best wireless... -
Page 15: Job Completion
TOP THE ONITORING When a pour reaches maturity and no longer requires monitoring, you will need to end the job on the LumiCon app to prevent further alarms from being triggered. STEP 1 Enter the following credentials to access the LumiCon app: ... -
Page 16: Unmount The Luminode
Version 1.6 Last updated: 2021-09-01 5.2 U NMOUNT THE After the job is complete, the LumiSense Cable is consumed but the LumiNode can be used again for the next temperature monitoring job. 1. Unplug the LumiSense Cable from the LumiNode, and immediately twist on the LumiNode cap to protect the port. -
Page 17: Troubleshooting Steps
Version 1.6 Last updated: 2021-09-01 ROUBLESHOOTING TEPS 155 Gordon Baker Road Suite 301, Toronto, Ontario M2H3N5 Support contact: support@aoms-tech.com | 1-877-873-1942 www.aoms-tech.com... -
Page 18: Regulatory Statements
Version 1.6 Last updated: 2021-09-01 EGULATORY TATEMENTS 7.1 F (FCC) EDERAL OMMUNICATIONS OMMISSION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 19: Innovation, Science And Economic Development Canada (Ised)
Version 1.6 Last updated: 2021-09-01 7.2 I (ISED) NNOVATION CIENCE AND CONOMIC EVELOPMENT ANADA This device complies with ISED Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
