Summary of Contents for Southco TP35AHT

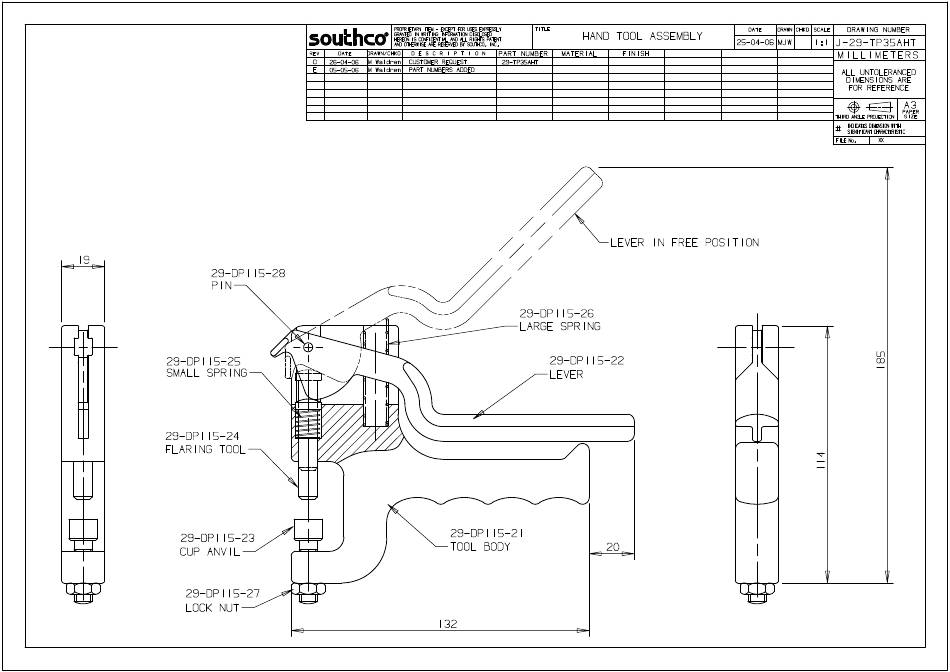

- Page 2 TP35AHT tool instruction manual (pre-adjustment before use) Native Orbit File: TP35AHT_tool_instruction_manual_revA...
- Page 3 TP35AHT tool instruction manual (pre-adjustment before use) The lock nut must be moved from the top side to the bottom side to accommodate a panel gap wider than 3mm. For smaller panel gap Open position Close position For wider panel gap...
- Page 4 PFSC 35-38A These parts are for use with receptacles PR35, 1.88mm PFSC 35-39A PR35-1, PRB35 and Upper 2.13mm PFSC 35-40A PR35. For other receptacles, refer to 2.39mm PFSC 35-41A Southco. 2.64mm PFSC 35-42A 2.90mm PFSC 35-43A Lower 3.18mm PFSC 35-44A...
- Page 5 Panel Flare of cup Cup nest Place stud assembly into the cup Ensure the flare of the cup Place panel over the stud assembly nest protrudes through the panel Flare With the tool closed, use a Ensure the cup of the assembly Apply pressure by squeezing the screwdriver to adjust the plunger protrudes through the panel...
