The next generation remote control

FIIRE REMOTE CONTROL UNIT

User Manual

Table of Contents

Need help?

Do you have a question about the FIIRE FIIRE REMOTE CONTROL UNIT and is the answer not in the manual?

Questions and answers

Summary of Contents for Fiire FIIRE FIIRE REMOTE CONTROL UNIT

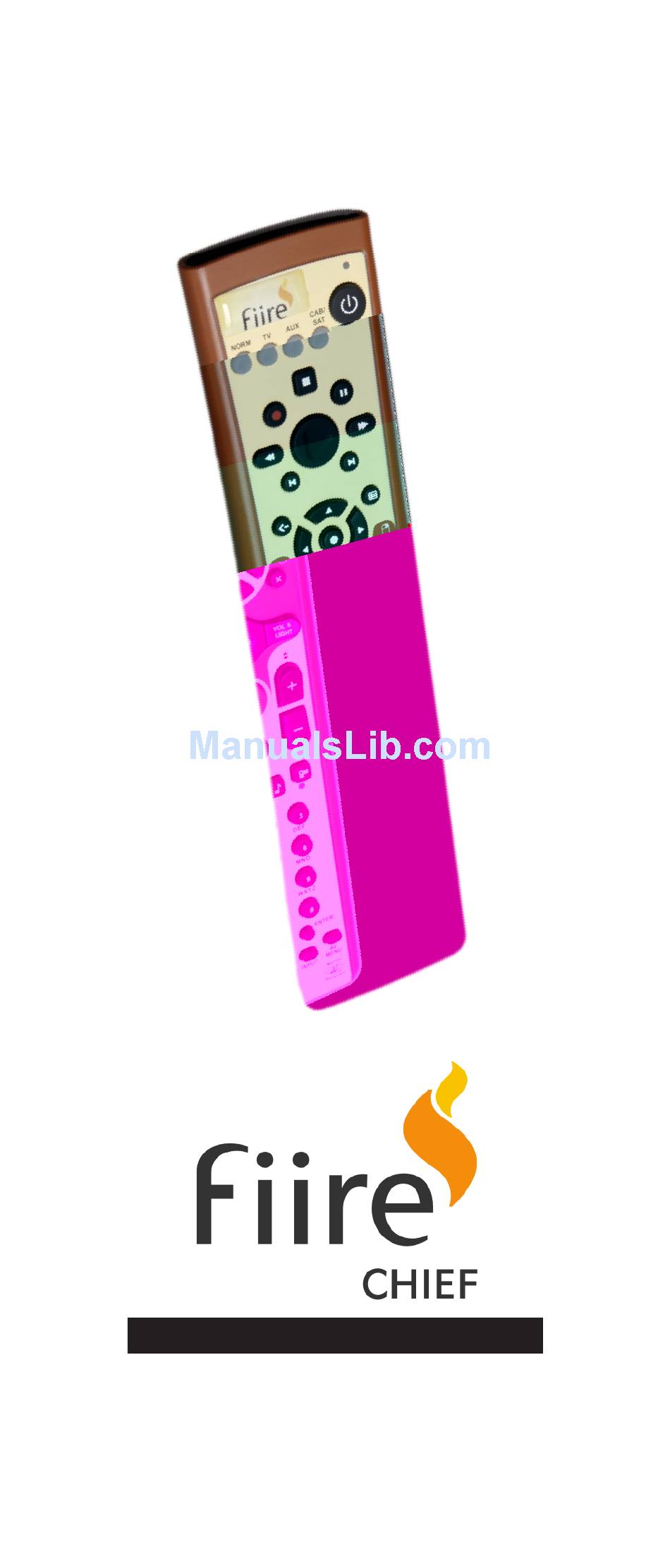

Page 1 The next generation remote control FIIRE REMOTE CONTROL UNIT User Manual...
Page 2: Table Of Contents
Table Of Contents Introduction ..... . 2 Battery Installation and Information . . . 2 Battery Saver ..... 2 Gyro Operation .
Page 3: Gyro Operation
Gyro Operation The RCU provides in-air control of the Fiire system’s cursor via patented gyroscopic motion sensing technology. This means mouse-like cursor control, from anywhere in the room, without the need of a flat surface. The FiireChief controls both the FiireEngine and FiireStation using RF wireless.
Page 4 the faster it goes. Or press and hold the button, and don’t let go while you move into the blue arrows and keep the button held down for absolute positioning. Now moving your hand 45 degrees to the left is the beginning of the media, and 45 degrees right is the end.
Page 5: Product Diagram
Product Diagram Button Cluster Locations RCU Mode Selection A B C D Puts RCU into AUX control mode for communicating with additional learned device via IR protocol. Puts RCU into CAB/SAT control mode for communicating with cable or satellite set-top box via IR protocol.
Page 6: Transport Control
Transport Control TV, AUX orCAB/SATmode Puts selected device into Stop mode, if supported Puts selected device into Pause mode, if supported Puts selected device into Fast Forward mode, if supported Skip command, if supported by selected device Puts selected device into Play mode, if supported Replay command, if...
Page 7: Menu Navigation
Menu Navigation No action, or as defined by selected device No action, or as defined by selected device No action, or as defined by selected device No action, or as defined by selected device Menu Navigation Up Menu Navigation Right Menu Navigation Down Menu Navigation Left...
Page 8: Channel/Volume Control, Mute Volume
Channel/Volume Control, Mute Volume Gyro stop TV, AUX orCAB/SATmode Gyro stop Increment the current channel by 1 Decrement the current channel by 1 Mute selected device, if applicable Decrement the current volume by 1 unit Increment the current volume by 1 unit Fiire Mode To reposition your hand press and hold the gyro ‘stop’...
Page 9: Fiire Shortcut Buttons
Fiire Shortcut Buttons Numeric Keypad TV, AUX orCAB/SATmode Standard 1-9, alphanumeric Inserts a * symbol, if supported by the selected device Inserts a # symbol, if supported by the selected device Clear, if supported by the selected device Enter, if supported by the selected device Follow me, Info&Help, Connect, Input and AV Menu Acts as a shortcut to the “Pictures”...
Page 10: Backlighting
Backlighting The RCU Mode Selection buttons are backlit. One of these buttons lights up whenever a button is pressed on the remote to indicate which Control Mode the remote is in; PC, TV, AUX, or CAB/SAT. If the backlighting seems dim, the batteries may need to be replaced.
Page 11: Setting Up And Synchronizing A Gyration Go Mouse Or Keyboard And The Transceiver
CDs DVDs, VCRs, DVRs, and other com- ponents via the IR functions of the RCU. To determine whether the universal remote needs to be programmed to operate one of the components connected to your Fiire system, such as TV, do the following: 1.
Page 12: Using Direct Entry
Programming Methods Using Direct Entry 1. Turn on the device you want to operate (TV, DVD player, etc.) 2. Look up the brand and code number(s) for the device in the Remote Code List at the end of this booklet. 3.
Page 13: Learning
Learning The RCU has the ability to learn the commands of other remote control units, such as TV remotes or VCR remotes. This allows the most-used commands on those remotes to be combined on the RCU. These original remote control units are also known as source remotes.
Page 14: Clearing An Individual Learned Function
Clearing an Individual Learned Function To delete a learned button function, use the procedure below. 1. Press and hold the component mode button (the component button lights). Then press and hold the CLEAR button for 3 seconds. Hold both buttons depressed until the component mode button flashes.
Page 15: Remote Code List
Remote Code List Brand Codes 1005 ---------------------------------------------------------------------------------------------------------------------------------------- Candle 1005 ---------------------------------------------------------------------------------------------------------------------------------------- Citizen 1005 ---------------------------------------------------------------------------------------------------------------------------------------- Colortyme 1005 ---------------------------------------------------------------------------------------------------------------------------------------- Concerto 1005 ---------------------------------------------------------------------------------------------------------------------------------------- Curtis Mathes 1001 ---------------------------------------------------------------------------------------------------------------------------------------- Daewoo 1005 ---------------------------------------------------------------------------------------------------------------------------------------- Daytron 1005 ---------------------------------------------------------------------------------------------------------------------------------------- Dell 1116 ---------------------------------------------------------------------------------------------------------------------------------------- Dimensia 1001 ---------------------------------------------------------------------------------------------------------------------------------------- Dumont 1014 ---------------------------------------------------------------------------------------------------------------------------------------- Electrohome 1005 ---------------------------------------------------------------------------------------------------------------------------------------- Emerson 1005...
Page 16 Remote Code List Brand Codes ---------------------------------------------------------------------------------------------------------------------------------------- 1000 ---------------------------------------------------------------------------------------------------------------------------------------- Runco 1014 ---------------------------------------------------------------------------------------------------------------------------------------- Sampo 1005 ---------------------------------------------------------------------------------------------------------------------------------------- Samsung 1005 1091 ---------------------------------------------------------------------------------------------------------------------------------------- Sansui 1018 ---------------------------------------------------------------------------------------------------------------------------------------- Scotch 1005 ---------------------------------------------------------------------------------------------------------------------------------------- Scott 1005 ---------------------------------------------------------------------------------------------------------------------------------------- Sears 1001 ---------------------------------------------------------------------------------------------------------------------------------------- Sharp 1005 ---------------------------------------------------------------------------------------------------------------------------------------- Sony 1015 1063 ---------------------------------------------------------------------------------------------------------------------------------------- Soundesign 1005 ---------------------------------------------------------------------------------------------------------------------------------------- Sylvania 1005 ----------------------------------------------------------------------------------------------------------------------------------------...
Page 17 Remote Code List Brand Codes ---------------------------------------------------------------------------------------------------------------------------------------- Philips 2009 ---------------------------------------------------------------------------------------------------------------------------------------- Philips Magnavox 2015 ---------------------------------------------------------------------------------------------------------------------------------------- Pioneer 2016 ---------------------------------------------------------------------------------------------------------------------------------------- Quasar 2009 ---------------------------------------------------------------------------------------------------------------------------------------- Radio Shack/Realistic 2009 ---------------------------------------------------------------------------------------------------------------------------------------- 2000 ---------------------------------------------------------------------------------------------------------------------------------------- Realistic 2009 ---------------------------------------------------------------------------------------------------------------------------------------- Sears 2009 ---------------------------------------------------------------------------------------------------------------------------------------- Sharp 2003 ---------------------------------------------------------------------------------------------------------------------------------------- Singer 2009 ---------------------------------------------------------------------------------------------------------------------------------------- Sony 2001 ---------------------------------------------------------------------------------------------------------------------------------------- 2009 ---------------------------------------------------------------------------------------------------------------------------------------- Sylvania...
Page 18 4105 ---------------------------------------------------------------------------------------------------------------------------------------- BOSE 4100 ---------------------------------------------------------------------------------------------------------------------------------------- Denon 4028 4068 4090 ---------------------------------------------------------------------------------------------------------------------------------------- Harman/Kardon 4071 ---------------------------------------------------------------------------------------------------------------------------------------- 4063 ---------------------------------------------------------------------------------------------------------------------------------------- 4031 ---------------------------------------------------------------------------------------------------------------------------------------- Kenwood 4014 ---------------------------------------------------------------------------------------------------------------------------------------- Koss 4103 ---------------------------------------------------------------------------------------------------------------------------------------- 4099 ---------------------------------------------------------------------------------------------------------------------------------------- Magnavox 4101 ---------------------------------------------------------------------------------------------------------------------------------------- Marantz 4095 ---------------------------------------------------------------------------------------------------------------------------------------- Onkyo 4020 4067 4085 ---------------------------------------------------------------------------------------------------------------------------------------- Panasonic 4056 ---------------------------------------------------------------------------------------------------------------------------------------- Philips...
Page 19 Remote Code List CABLE Brand Codes 5035 ---------------------------------------------------------------------------------------------------------------------------------------- Comcast 5039 ---------------------------------------------------------------------------------------------------------------------------------------- Contec 5034 ---------------------------------------------------------------------------------------------------------------------------------------- 5035 ---------------------------------------------------------------------------------------------------------------------------------------- Gemini 5033 ---------------------------------------------------------------------------------------------------------------------------------------- General Instrument 5042 ---------------------------------------------------------------------------------------------------------------------------------------- General Instruments 5032 ---------------------------------------------------------------------------------------------------------------------------------------- Hamlin 5031 ---------------------------------------------------------------------------------------------------------------------------------------- Hitachi 5035 ---------------------------------------------------------------------------------------------------------------------------------------- Jerrold 5032 ---------------------------------------------------------------------------------------------------------------------------------------- Motorola 5038 ---------------------------------------------------------------------------------------------------------------------------------------- 5034 ---------------------------------------------------------------------------------------------------------------------------------------- Philips 5033...
Page 20 U.S. Patent Numbers: 5,440,326; 5,898,421; 5,825,350 and other pending patents. GYR3201US - DL02829-001 Rev. B - Made in China. Phone: Toll-free (U.S. only): (877) on-fiire Los Angeles, CA, USA: +1 (213) 325-266 Email address: info@fiire.com...
