PRODUCT MANUAL
OXYPOWER

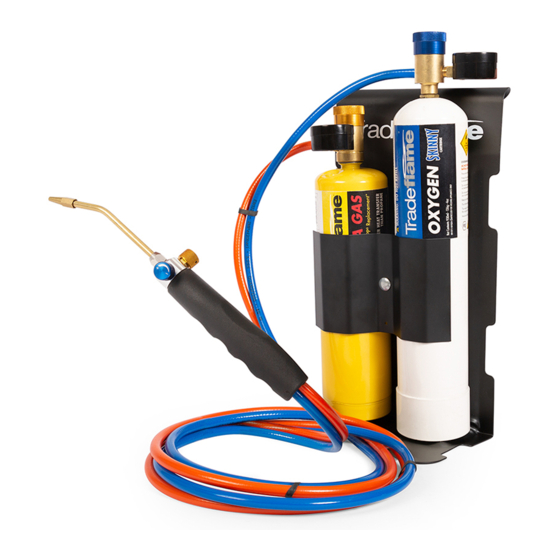

Blow Torch Kit
PART NO: 212001
IMPORTANT
Read instructions before operation.
Save these instructions.
Congratulations on the purchase of your OXYPOWER Blow Torch Kit.
This equipment is designed for metal cutting, soldering, brazing, welding, hardening
and heating of all ferrous and non-ferrous metals. This gas equipment is able to weld
metal without the use of oxy-acetylene equipment. With a total weight of less than
5kg including cylinders, this kit allows you to carry out jobs similar to those performed
by much heavier equipment in areas when larger equipment is not practical.
Please follow the instructions in order to obtain the best working performance of this equipment.
Great care should be taken in using this equipment as it reaches very high working temperatures.
Advertisement
Table of Contents
Summary of Contents for Tradeflame Oxypower
- Page 1 Read instructions before operation. Save these instructions. Congratulations on the purchase of your OXYPOWER Blow Torch Kit. This equipment is designed for metal cutting, soldering, brazing, welding, hardening and heating of all ferrous and non-ferrous metals. This gas equipment is able to weld metal without the use of oxy-acetylene equipment.
- Page 2 GENERAL INSTRUCTIONS ® A gas such as TF/ULTRA GAS - Performance Gas – MAPP Replacement or Propane (referred to as fuel in this document) is liquefied in the cartridge and therefore the contents of the cartridge can be estimated by the weight of the cartridge. Oxygen is compressed gas within the cartridge and the difference between the weight of a full cartridge and of an empty one is not easily recognised.
- Page 3 TO ASSEMBLE STAND ASSEMBLY INSTRUCTIONS 1. Ensure the fuel regulator valve is off This equipment is supplied with a (turn knob 4 fully clockwise to -). metal stand / cartridge holder. 2. Make sure the seal inside the fuel 1. Once you have connected the cartridges regulator is seated properly and to the regulators, slide each cartridge into is in good working condition.
- Page 4 INSTRUCTIONS FOR USE TO IGNITE The kit uses a non-refillable oxygen cartridge It is recommended that in normal use (white) and a non-refillable gas cartridge the pressure regulator knobs are opened (yellow or blue). These must be purchased completely, with flame adjustment controlled separately.
- Page 5 TO EXTINGUISH 4. Slowly turn the blue oxygen knob of the torch 11 anti-clockwise to open 1. Slowly close the blue oxygen knob of the until you obtain a light blue flame. torch 11 by turning it clockwise. The 5. An excess of oxygen can cause the flame to flame colour should change to a yellow separate from the torch tip or to extinguish.
- Page 6 SAFETY IN THE EVENT OF A FIRE Welding equipment regulators ensure If safe to do so, immediately close oxygen supply at low and constant pressure. In cartridge valve; this should be enough to addition, the equipment has six flash back extinguish the flame.
- Page 7 OXYGEN AND FUEL CONSUMPTION The rate of oxygen and fuel consumption is strongly influenced by the tip selection, flame size and nature of work. As an estimate: TEMP OXYGEN FUEL TIP SIZE OXYGEN TIME FUEL TIME 3000°C 110 L TF/ULTRA 40 L/hr 2 hr 30 min 14 hr 30 min...
- Page 8 Distributed by TradePem Idustrial Pty Ltd www.tradeflame.com...
