Summary of Contents for DOC ECO-SWEEP

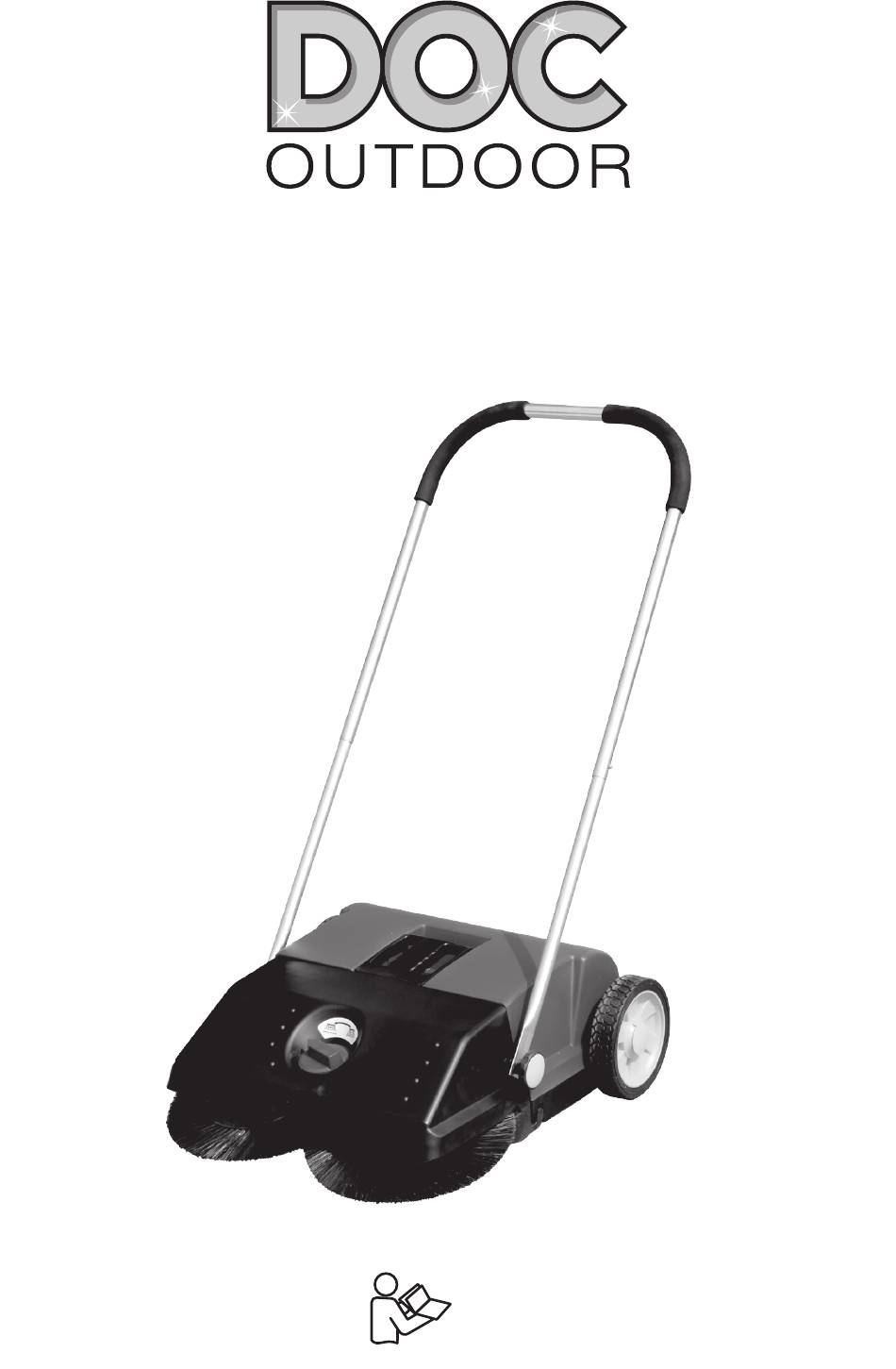

- Page 1 ECO-SWEEP Care and Use Guide Please make sure you read and understand this Care and Use Guide before using this product.
- Page 2 IN THE BOX ECO-SWEEP Care and Use Guide Please make sure you read and understand this Care and Use Guide before using this product. Sweeper body Tube handle 1 set Instruction manual 1pc Turning knob 2pcs The spare parts item No. mentioned below please refer to the explosion drawing.
- Page 3 WASTE CONTAINER DETACH AND ASSEMBLY 1. Detach the container Lift the waste container by lifting it up and away from the brush housing. 2. Waste Container Assembly Step 1: Step 2: Step 3: 1. Lift the container handle 1. Interlock the hooks of 1.
-
Page 4: Operation
OPERATION 1. Extremely easy to use. Normal walking speed recommended for optimum results. 2. Suitable for wet and dry use including sawdust, metal filings, leaves, stones, papers, cans, cups, broken glass, large debris, sand and dirt. 3. Works on all surfaces including workshops, driveways, walkways, store fronts, patios, garages and pool decks. -
Page 5: Emptying Waste Container
EMPTYING WASTE CONTAINER Detach the waste container, and empty it into trash can. Reattach empty waste container to the brush housing to continue use. BRUSH ADJUSTMENT The height adjustment knob for the circular brooms is located on the front. Turn clockwise to lower. Turn counter-clockwise to raise. Use higher setting for all even, hard floors like asphalt or concrete, and for sweeping large debris. - Page 6 BRUSH (CIRCULAR BROOM) REPLACEMENT 1. Set the height adjustment knob to the far right, lowest setting side. 2 . P u l l the inclined wheels (15/16) strongly and remove it with the axle (13 14). K e e p n o t e o f t h e l e f t a n d right wheels as they must be r e p l a c e d o n s a m e s i d e f o r normal operation.
-
Page 7: Maintenance
4. Remove the toothed sleeve. 5. Insert the toothed sleeve into the replacement brush 6. Reinsert the brush and ensure it is completely seated into the rod housing. 7. Reinsert the inclined wheel and axle into the rod. Firmly push until the assembly pops into position. - Page 8 EXPLOSION DRAWING JL550扫地机爆炸图 1、 2、 3、 4、 5、 6、 7、 8、 9、 10、 11、 12、 13、 14、 15、 16、 17、 18、...
- Page 9 19. Collecting plate Handle grip 20. Bolt M8X30 Tube Adjustable Handle 21. Screw ST4X8 Sliding handle parts 22. PU washer Container handle 23. Turning knob Turning knob 24. Container Front cover 25. Wheel complete Adjusting Bar 26. Wheel cap Axle cover 27.
- Page 10 STORAGE Do not store in direct sunlight. To hang or store flat, fold the tube handle parallel to the body and hang it on the wall, if desired, to save storage space. Please make sure the sweeper is securely hung to avoid i t dropping and causing possible injury or damage.
-
Page 11: Troubleshooting
TROUBLE SHOOTING Issue: Sweeper is not picking up debris effectively. 1. Check the height of the brushes and adjust if needed. 2. Clean the unit and remove dirt and/or debris stuck from the brushes, spools, or under machine itself. 3. Lubricate the gear parts. -
Page 12: Safety Warning
NOTE: 1. This unit is NOT for use on carpet. 2. Before using, make sure the unit is in good and safe condition. 3. Heavy stones and large size tree branches may not be able to be collected. Do not attempt to sweep debris that is too large for the unit. 4.
