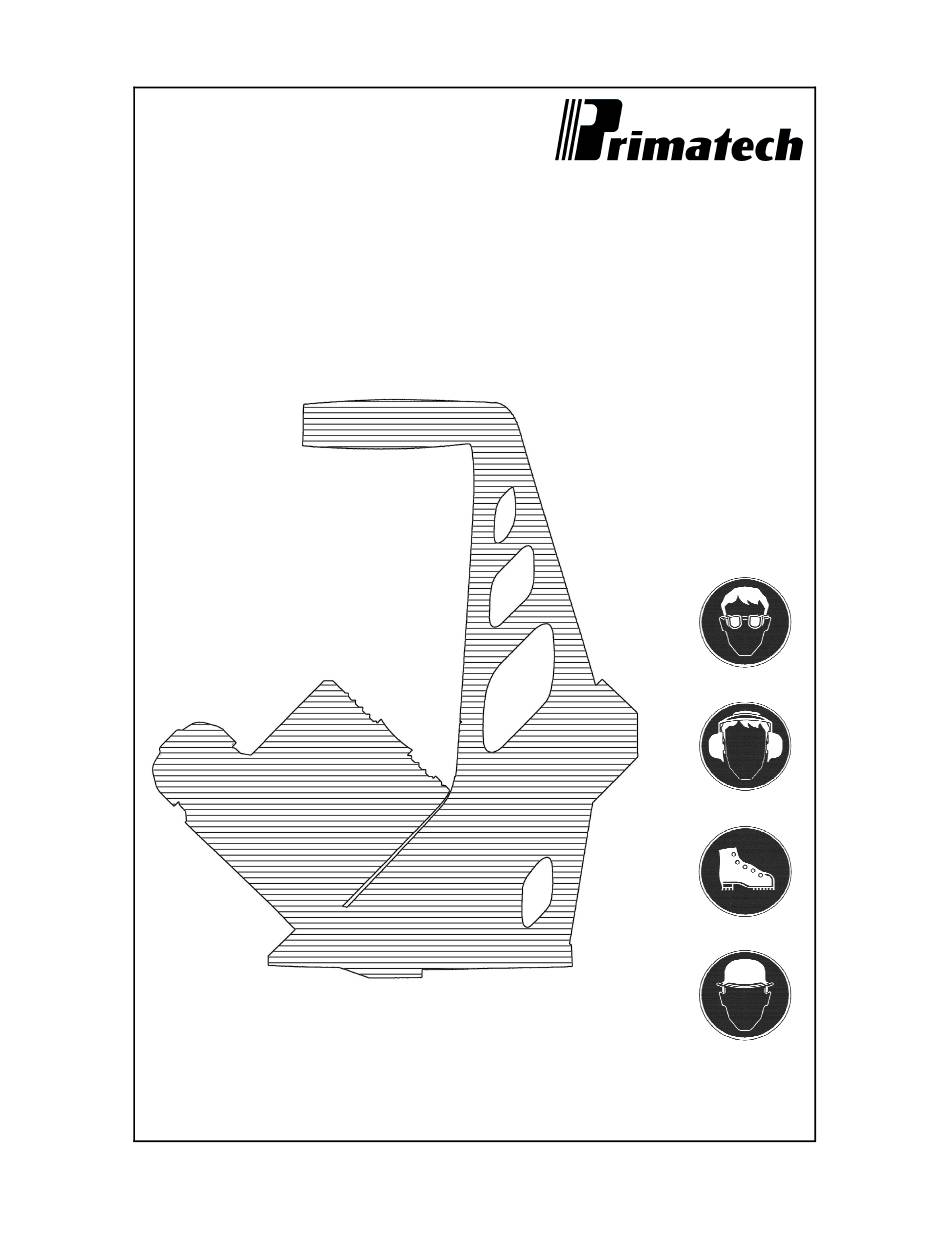

Page 1

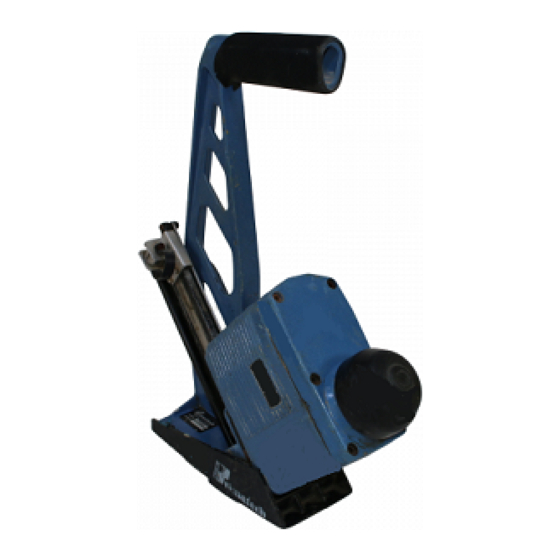

PNEUMATIC FLOORING STAPLER P260 OPERATING INSTRUCTIONS WARNING Read these instructions thoroughly before using this tool and keep it handy for reference. Revision 12/10 Printed in Canada...
Page 2
O NOT REMOVE OR ALTER SAFETY available in lengths of 1½" (38mm), 1¾" (44mm) or 2" EVER DEPRESS THE SAFETY CONTACT (50mm). For best result, only Primatech staples should WITH YOUR HANDS WHEN TOOL IS be used. For maximum performance, the manufacturer...
Page 3
P260 is ready for PNEUMATIC STAPLER tool with different species of harder wood. In these more use. difficult cases, the compressed air pressure can be increased up to 100 psi (6.9 bar). It is very important not A 2.5 lbs (1.1 kg) hammer is supplied with...
Page 4
To clean This tool requires minimal lubrication. Use the head and valve assembly, remove the six (6) screws only detergent-free oil such as Primatech P-015 and take the head assembly off the tool. Pull out P-090.
Page 5
ASSEMBLING THE VALVE TROUBLESHOOTING This tool features a redesigned valve assembly. All its This section will help to diagnose problems that might components can be assembled together without the alter the quality of work done by the operator, or the need of a screw or any tool;...
Page 6
Inspect the head assembly and check all seals; or replacement of part or tool is required, the complete clean & lubricate tool or part(s) must be returned to Primatech or at such f) Check for damaged or missing bottom O-ring authorized warranty service point of Primatech,...
