Populo PES350B User Manual

Hide thumbs

Table Of Contents

Electric Scooter User Manual

PES350B

Read and understand this entire manual before riding this scooter.

Manual illustrations are for demonstration purposes only. Illustrations may not reﬂect exact

appearance of actual product. Speciﬁcations subject to change without notice.

Table of Contents

Need help?

Do you have a question about the PES350B and is the answer not in the manual?

Questions and answers

Summary of Contents for Populo PES350B

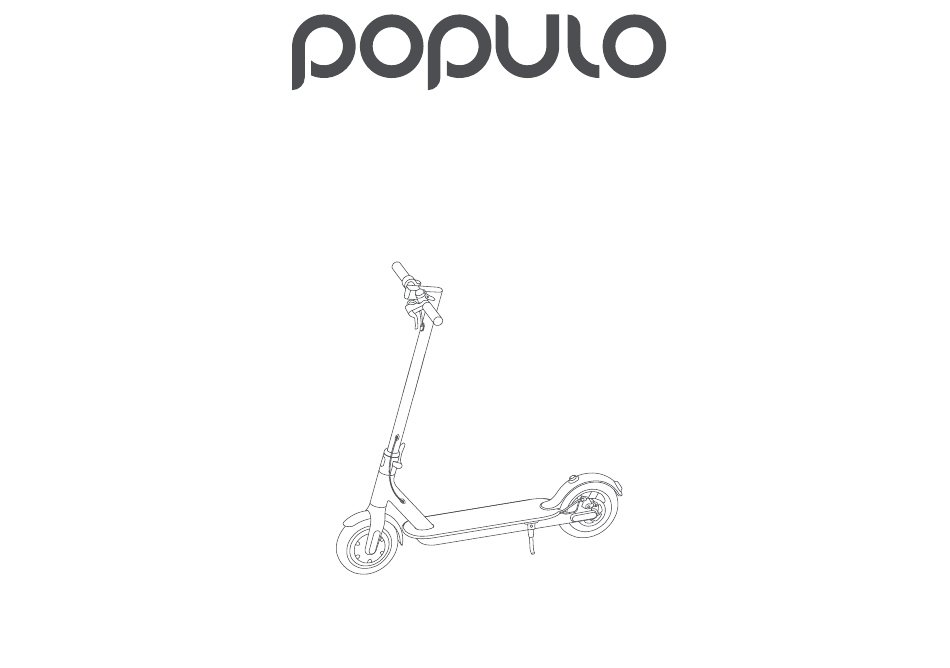

Page 1 Electric Scooter User Manual PES350B Read and understand this entire manual before riding this scooter. Manual illustrations are for demonstration purposes only. Illustrations may not reﬂect exact appearance of actual product. Speciﬁcations subject to change without notice.
Page 2: Table Of Contents
CONTENTS 1. Package Contents 2. Control Panel 3. Speciﬁcations 4. Assembly and Set-Up 5. Charge Your Scooter 6. How To Ride 7. Safety Instructions 8. Folding and Carrying 9. Daily Care and Maintenance 10. Troubleshoot...
Page 3: Package Contents
Brake Lever Folding Mechanism Buckle Brake Light Disc Brake Kickstand Wheel Motor Battery Compartment Charging Port Accessories Charging Adapter Hex Wrench X 2 Extension Hose Carefully check package contents. If anything is missing or damaged, please contact Populo for support.
Page 4: Control Panel
2 Control Panel Speed Display When the scooter is ridden, the riding speed will be displayed on the control panel. Mode Display The scooter has 3 speed modes which can be selected. To change modes, press the power button twice. ECO - Approx.
Page 5: Specifications
3 Speciﬁcations Performance Index Items Speciﬁcations L × W × H [1] 42.5×16.7×44.7 (inch) Dimensions After folding: L × W × H 42.5×16.7×18.9 (inch) Weight Item weight Approx. 28.3 (lbs) Riding Load range 55.1-220 (lbs) Requirements 16–50 Top. speed Approx. 15 (mph) Travel range per charge[2] Approx.
Page 6: Assembly And Set-Up
4 Assembly and Set-Up 1. Fasten the handlebar to the steering column, then unfold the steering column and fasten the folding mechanism. Open the kickstand. 2. After the assembly, press the power button to check if it's working properly. ECO D S...
Page 7: Charge Your Scooter
5 Charge Your Scooter Lift the rubber Plug the power adapter When charging is complete, unplug charging port cover. into the charging port. the power adapter and cover with the rubber charging port cover. RED - charging GREEN - fully charged 6 How To Ride WARNING Wearing helmets and knee pads in case of falls...
Page 8 Step on the deck with one foot, with the When the scooter starts to coast, put both feet on the other foot slowly push forward to roll and deck and press the accelerator. coast on the scooter. NOTE：The electric scooter will not be engaged until the scooter reaches a speed of approx.
Page 9: Safety Instructions
7 Safety Instructions Watch out for safety risks DO NOT ride during Ride at a controlled and slow speed while you ride through rainy / wet weather. uneven surfaces. Slightly bend your knees to absorb the bumpy impacts. Look out for doors, elevators and other overhead obstacles. DO NOT accelerate when you go downhill.
Page 10 DO NOT PRESS THE ACCELERATOR Always steer clear of obstacles. when you're walking alongside the scooter. Keep both feet on the deck at all times. DO NOT hang bags or other heavy accessories on the handlebars.
Page 11 Do not try following dangerous actions DO NOT ride in tra c lanes or residential areas DO NOT turn the handlebar where vehicles and pedestrians are both allowed. violently during high-speed riding. DO NOT ride into a puddle that is DO NOT ride with anyone else, deeper than 0.78 inches.
Page 12 DO NOT keep your feet on the DO NOT touch the disc brake. rear mudguard. DO NOT try to ride up or down stairs, DO NOT take the hands o from or jumping over the obstacles. the handlebars while riding.
Page 13 Try not to startle them while driving, especially children. Closely follow the safety instructions in the manual regulations regarding electric scooters. POPULO company shall not be liable for any ﬁnancial losses, physical injuries, accidents, legal disputes and other interest conﬂicts resulted from actions that violate user instructions.
Page 14: Folding And Carrying
8 Folding and Carrying Fold Open Make sure that the scooter's turned o . To fold, unlock the folding mechanism, and fold the steering column to hook the buckle on the rear mudguard. To open, press the bell trigger to remove from the buckle, open the steering column and lock the folding mechanism. Carry Hold the scooter by the steering column to carry.
Page 15: Daily Care And Maintenance
9 Daily Care and Maintenance Cleaning and Storage If you see stains on the scooter's body, wipe them o with a damp cloth. If the stains won't scrub o , put on some toothpaste, and brush them with a toothbrush, then wipe them o with a damp cloth. If you see scratches on plastic parts, use sandpaper or other abrasive materials to polish them. NOTE: Do not clean the scooter with alcohol, gasoline, kerosene or other corrosive and volatile chemical solvents to prevent dire damage.
Page 16: Troubleshoot
Barrel Adjuster If the brake needs adjustment, you can turn the brake barrel adjuster clockwise or counter-clockwise making it looser or tighter for your comfort. Please contact our customer service through info@populo.com if you have any issue with it. 10 TroubleShoot...
Page 17 ONE YEAR LIMITED WARRANTY Populo warrants that all new Populo electric scooters and main components are warranted to the original against manufacturing defects in materials and/or workmanship for a maximum period of one (1) year from the date of original retail purchase. (This warranty does not apply to the consumable parts such as tire, brakes, seal ring or other mechanical components of the scooter etc.)
Page 18 THANK YOU FOR CHOOSING 18457 Railroad St. Industry, CA 91748 www.populo.com...
