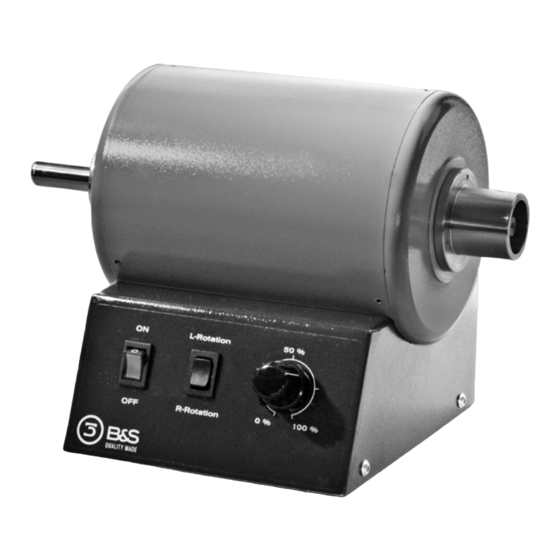

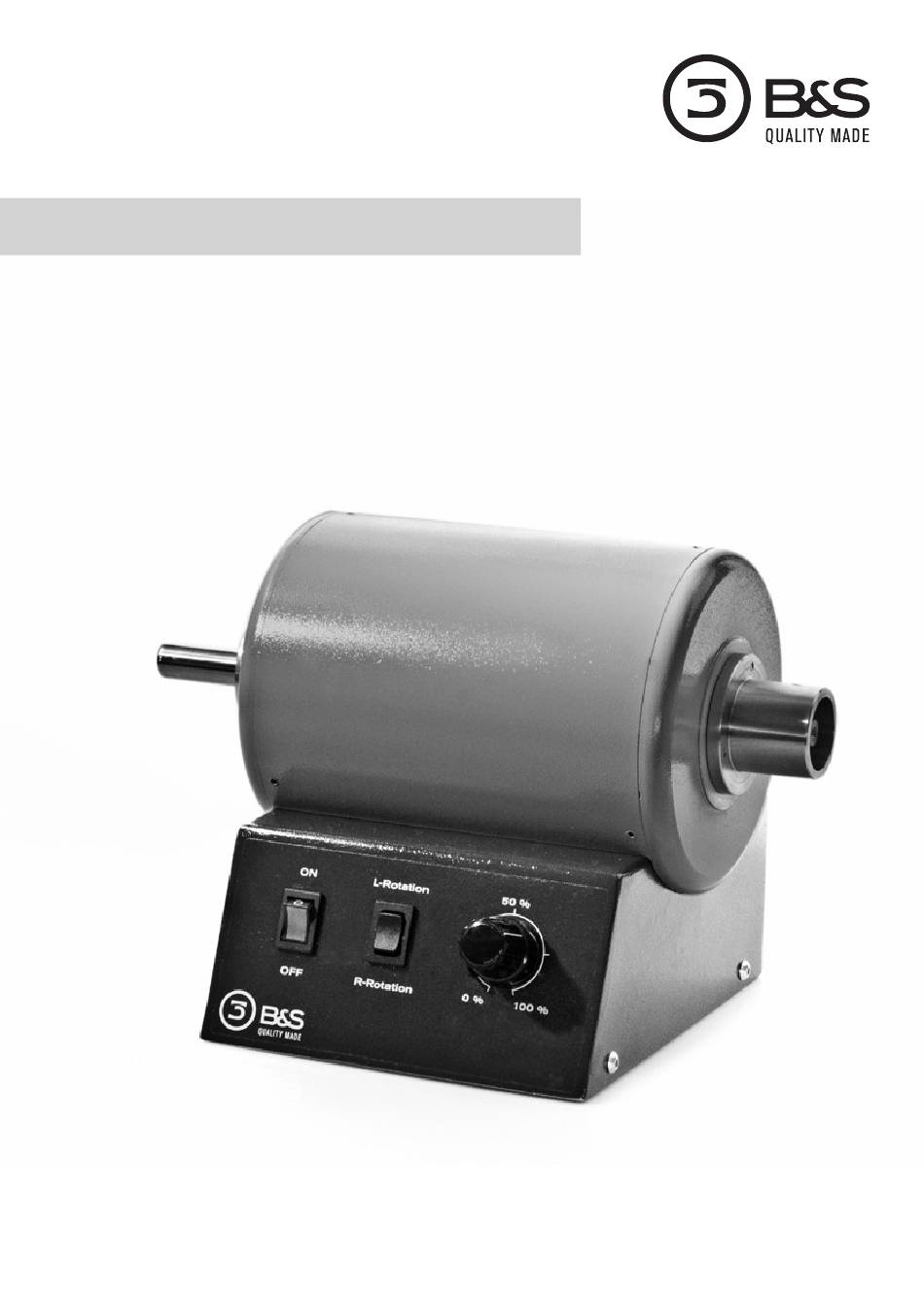

- Page 1 Operating instructions Polishing motor 2967 00 Read the instructions prior to performing any task!
- Page 2 Breitfeld & Schliekert GmbH Max-Planck-Straße 30 61184 Karben Telephone: +49 (0) 6039 993-10 Fax: +49 (0) 6039 993-37 email: info@.b-s.de Internet: www.b-s.de 02/2013 This operating manual was written by: Breitfeld & Schliekert GmbH ©Breitfeld & Schliekert GmbH...
-
Page 3: Table Of Contents
Polishing motor 2967 00 Table of contents Table of contents General .............................5 Information about these operating instructions ..........5 Explanation of symbols ..................2 Limitation of liability ....................6 Copyright ........................6 Warranty terms ......................6 Customer service ....................6 2 Safety instructions ........................7 Intended use ......................7 Responsibility of the healthcare establishment ..........7... - Page 4 Polishing motor 2967 00 Table of contents 9 Problems and solutions ......................23 Troubleshooting guide ..................23 10 Disassembly and disposal ....................24 10.1 Disassembly ......................24 10.2 Disposal ....................... 24 11 Index ..............................25 12 CE declaration ..........................25...
-
Page 5: General
Polishing motor 2967 00 General General Information about these operating instructions These operating instructions allow safe and efficient handling of the instrument. These operating instructions form part of the instrument and must be kept near the instrument and accessible to personnel at all times. -
Page 6: Limitation Of Liability
Polishing motor 2967 00 General Signs in this manual The following signs and accentuation are used in this manual to indicate codes of behaviour, outcome descriptions, lists, references, and other elements. [BUTTON ] Indicates names of pushbuttons, buttons and other operating elements. -
Page 7: Safety Instructions
Polishing motor 2967 00 Safety instructions Safety instructions This section provides an overview of all the main safety aspects involved in en- suring optimal personnel protection and safe and smooth operation. Non-compliance with the action guidelines and safety instructions contained in this manual may result in serious hazards. -
Page 8: Personnel Requirements
Polishing motor 2967 00 Safety instructions device have read and understood these operating instructions. All personnel must also be trained and informed of any hazards by the healthcare establish- ment at regular intervals. • The healthcare establishment must ensure that only approved accessories are used together with the instrument. -
Page 9: Personal Protective Equipment
Polishing motor 2967 00 Safety instructions Trapping hazard WARNING WARNING! Risk of injury due to trapping hazard! Long hair, loose clothing or jewellery may be trapped and pulled in due to rotating polishing bodies/rotating tips and cause serious injuries. • When working with the instrument always wear clothing that tears easily and never wear ties, bandan- nas or scarves. -
Page 10: Labelling
Polishing motor 2967 00 Safety instructions Labelling Indicates that the instrument must not be disposed of in Do not dispose of in household rubbish. The obsolete instrument can be sent household rubbish to waste management for electronics and metal recycling. -
Page 11: Technical Data
Polishing motor 2967 00 Technical data Technical data Dimensions and weight Data Value Unit Weight 11 kg Width 250 mm Width with polishing tips on both sides 430 mm Height 170 mm Depth 172 mm Power requirements Data Value Unit... -
Page 12: Overview And Controls
Polishing motor 2967 00 Overview and controls Overview and controls Overview Fig. 2: Overview of the polishing motor and its controls 1. Polishing motor 2. Right motor shaft 3. Rotational speed regulator 4. Direction of rotation switch 5. Power switch 6. -
Page 13: Direction Of Rotation Switch
Polishing motor 2967 00 Overview and controls Direction of rotation switch 1. Switch position L rotation 2. Switch position middle 3. Switch position R rotation The [direction of rotation switch] is used to set the direction of rotation of the motor shaft. -
Page 14: Power Plug
Polishing motor 2967 00 Overview and controls 1. Mounting slot 2. Clamping screw 3. Mounting sleeve 4. Mounting thread for polishing body Fig. 7: Polishing tip, right motor side Power plug The power plug is used to connect the polishing motor to the power supply of the healthcare establishment. -
Page 15: Transporting, Packaging And Storage
Polishing motor 2967 00 Transporting, packaging and storage Transporting, packaging and storage Transport inspection On receipt, immediately inspect the delivery for completeness and transport damage. Proceed as follows in the event of externally apparent transport damage: • Do not accept the delivery, or only accept it subject to reservation. -
Page 16: Storage
Polishing motor 2967 00 Transporting, packaging and storage Protect against moisture Protect packages against moisture and keep dry. Marks packages with fragile or sensitive contents. Hand- Fragile le the package with care; do not allow to fall and do not expose to impacts. -
Page 17: Starting Operation
Polishing motor 2967 00 Starting operation Starting operation Requirements for the assembly site • The assembly surface must be level and horizontal. • The instrument must not be exposed to splashing or flowing water or other fluids. • The instrument must not be exposed to heat or direct sunlight. -
Page 18: Connect The Unit To The Power Supply
Polishing motor 2967 00 Starting operation Fig. 12: Polishing tip, right motor side 3. Push the polishing tip for the right side of the motor (Fig. 11/2) up to the stop (Fig. 12/arrow). 4. Tighten the clamping screw (Fig. 7/2) using a 2.0 mm hex key (not included in the delivery) through the passing hole (Fig. -
Page 19: Operation
Polishing motor 2967 00 Operation Operation Safety Trapping hazard WARNING WARNING! Risk of injury due to trapping hazard! Long hair, loose clothing or jewellery may be trapped and pulled in due to rotating polishing bodies/rotating tips and cause serious injuries. -
Page 20: 7.2.3 Adjusting The Direction Of Rotation
Polishing motor 2967 00 Operation 1. Set the desired rotational speed using the [rotational speed regulator] (Fig. 13/1). 2. Using the [lock] (Fig. 13/2), fix the [rotational speed regulator] (Fig. 13) at the desired position/when the desired speed is reached. -
Page 21: 7.2.5 Polishing
Polishing motor 2967 00 Operation When the [direction of rotation switch] (Chapter 7.2.3 ‘Adjusting the direction of rotation’ on page 20) is in the [L rotation] or [R rotation] switch position, the motor shaft does not start up automatically. The motor shaft only starts... -
Page 22: Cleaning And Care
Polishing motor 2967 00 Cleaning and care Cleaning and care Safety Electrical current DANGER! DANGER!! Life-threatening hazard due to electrical current! Life- threatening hazard if contact is made with conducting components. • Before starting cleaning tasks, remove the power plug from the wall socket. -
Page 23: Problems And Solutions
Polishing motor 2967 00 Problems and solutions Problems and solutions In the following chapter possible causes for faults and work needed for their resolution are described. For problems and faults that cannot be resolved using the following instructions, contact your authorised dealer or the manufacturer. For Germany see the ser- vice address on page 2. -
Page 24: Disassembly And Disposal
Polishing motor 2967 00 Disassembly and disposal Disassembly and disposal Following the end of its useful life, the appliance must be dismantled and dispo- sed of in accordance with the environmental regulations. 10.1 Disassembly Before starting the disassembly: • Switch off the instrument and pull the power plug of the wall socket. -
Page 25: Cleaning The Instrument
Polishing motor 2967 00 Demontage und Entsorgung Index Assembly site ..............19 Packaging ..............15 Polishing .................21 Polishing bodies ............19 Cleaning .................25 approved ..............14 Connect the power supply ........20 attaching ..............19 Contact ................7 suitable ..............14 Copyright ................Polishing tip ..............13 Customer service ............7 attaching ..............17... -
Page 26: Ce Declaration
Polishing motor 2967 00 CE declaration...
