Summary of Contents for Verizon CR338

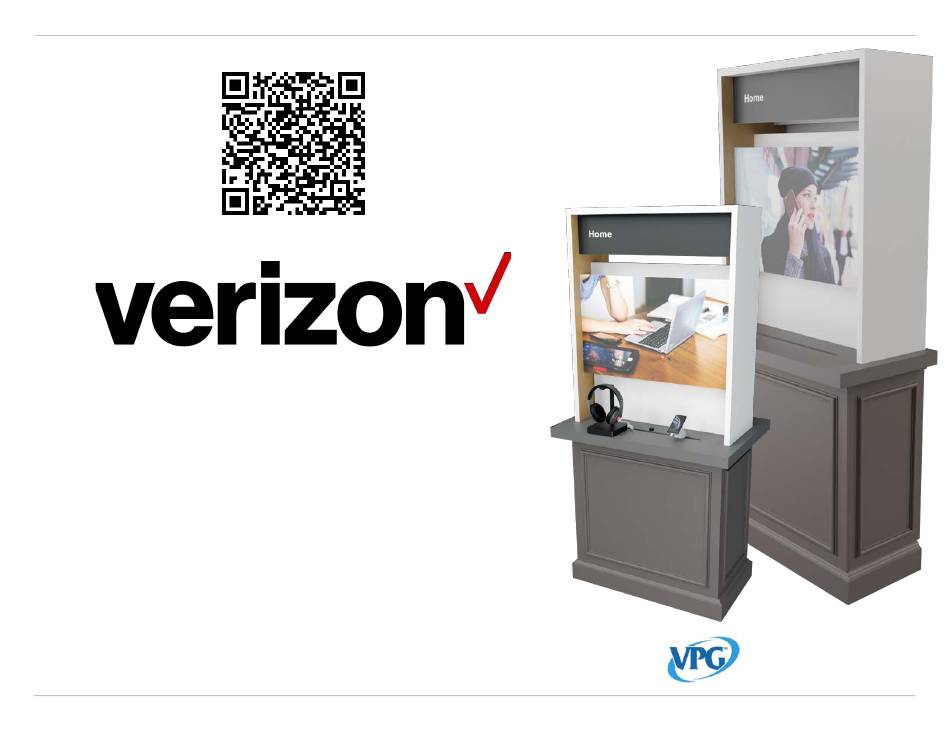

- Page 1 F R E E S T A N D I N G H O M E S E R V I C E S W A L L M O U N T E D H O M E S E R V I C E S For ALL videos and guides, visit our directory: Customer Care: www.vanguardprotexglobal.com/verizon-directory (877) 477-4 874...
- Page 2 Smart Freestanding Home Services Smart Wall Mounted Home Services EnCore Installation CR338 Installation T A B L E O F C O N T E N TS Slim Wearable Sensor Installation Accessory Security Adhesive Resistant Devices CR338 Removal IR Keyfob Troubleshooting...
- Page 3 FREESTANDING HOME SERVICES SMART WALL MOUNTED HOME SERVICES VP-1397W K-CR338-02W VZW-Wearable3 EnCore | CR338 | Slim Wearable Sensor INSTALLATION IS THE SAME FOR BOTH FIXTURES CR338 EnCore - Phone & Tablet Security - Accessory Security CR338 positions will adhere The EnCore can be placed in the...
- Page 4 FREESTANDING HOME SERVICES SMART WALL MOUNTED HOME SERVICES VP-1397W K-CR338-02W VZW-Wearable3 EnCore | CR338 | Slim Wearable Sensor INSTALLATION IS THE SAME FOR BOTH FIXTURES IR Extender Cable Sensors - Accessory Security (KF-1102) Accessory Security Sensors can route behind the shelf, and up through the slot.
- Page 5 ENCORE click or scan QR code for installation video Installation Tools & Parts Needed Remove the cover of the EnCore (VP-1397) with the V-T900 security driver or V-900-T Allen wrench. Remove the 3M VP-1397W V-T900 adhesive liner. Set the security code by changing V-900-T the DIP switch...
- Page 6 Remove the adhesive liner on the VP-1751W AD-238-8 necessary if the single hole adapter base of the pedestal and adhere is NOT already installed on the the pedestal to the fixture. CR338 pedestal. VP-1707W Tamper Switch AD-239-5 Bottom View V-39 AP-001-200...
- Page 7 SLIM WEARABLE SENSOR click or scan QR code for installation video Installation Tools & Parts Needed Thread the watch charger through the stand as shown. Cradles VP-1635 V-T900 Stands Samsung VP-1625 V-T99 VP-1656 Generic Garmin V-37 VP-1657 Generic VP-1559 Apple VP-1664 VP-1626 Galaxy Active...
- Page 8 SLIM WEARABLE SENSOR click or scan QR code for installation video Installation Use the appropriate watch cradle for Insert the provided binding screw into the product you wish to secure. the watch cradle. Loosen the screw on the top of the Slim Wearable Sensor (VP-1626) and remove the...
- Page 9 DEVICES WITH INDUCTIVE CHARGING/CAMERAS Accessory Security X-Sensors X-Sensors will be used on phones that use inductive charging. No flex cover is necessary. If the phone has a removable back, detachable parts or pieces, or the battery can be removed, you will need to use a secondary X-Sensor to fully secure it.
- Page 10 2) Remove the adhesive liner from the AD-218. 3) Adhere the AD-218 to the back of the device. IMPORTANT: Ensure the tamper switch on the CR338 sensor aligns with one of the 3 holes on the AD-218 adhesives. Note: Heat (whether it be ambient or from the device) plays a major role in the effectiveness of adhesives.
- Page 11 CR338 IMPORTANT: Do NOT try to pull up on the CR338 base. It can damage the pedestal and/or the fixture. To remove a CR338 pedestal that’s adhered Pedestal Removal to Verizon fixtures, follow the steps below. click or scan QR code for video Tools &...
- Page 12 IR KEYFOB (KF-1106) Troubleshooting Arming and Disarming Use the red “lock” button to arm the system, and the green “unlock” Disarm button to disarm the system. IMPORTANT: Ensure the button pads IR Emission are not installed upside down. Ensure you hold the keyfob in the proper orientation.
- Page 13 SPARE PARTS Maintenance CR338 Kit Alarms K-CR338-02W CR338 Pedestal CR338 Sensor Mounting Kit Power Supply EnCore VP-1751W VP-1707W K-1106 V-39 VP-1397 Power Couplers Micro USB PAS PAS Bracket Clear PAS Bracket Type-C PAS Sensor Sensor Micro USB Coupler USB-C Coupler...
