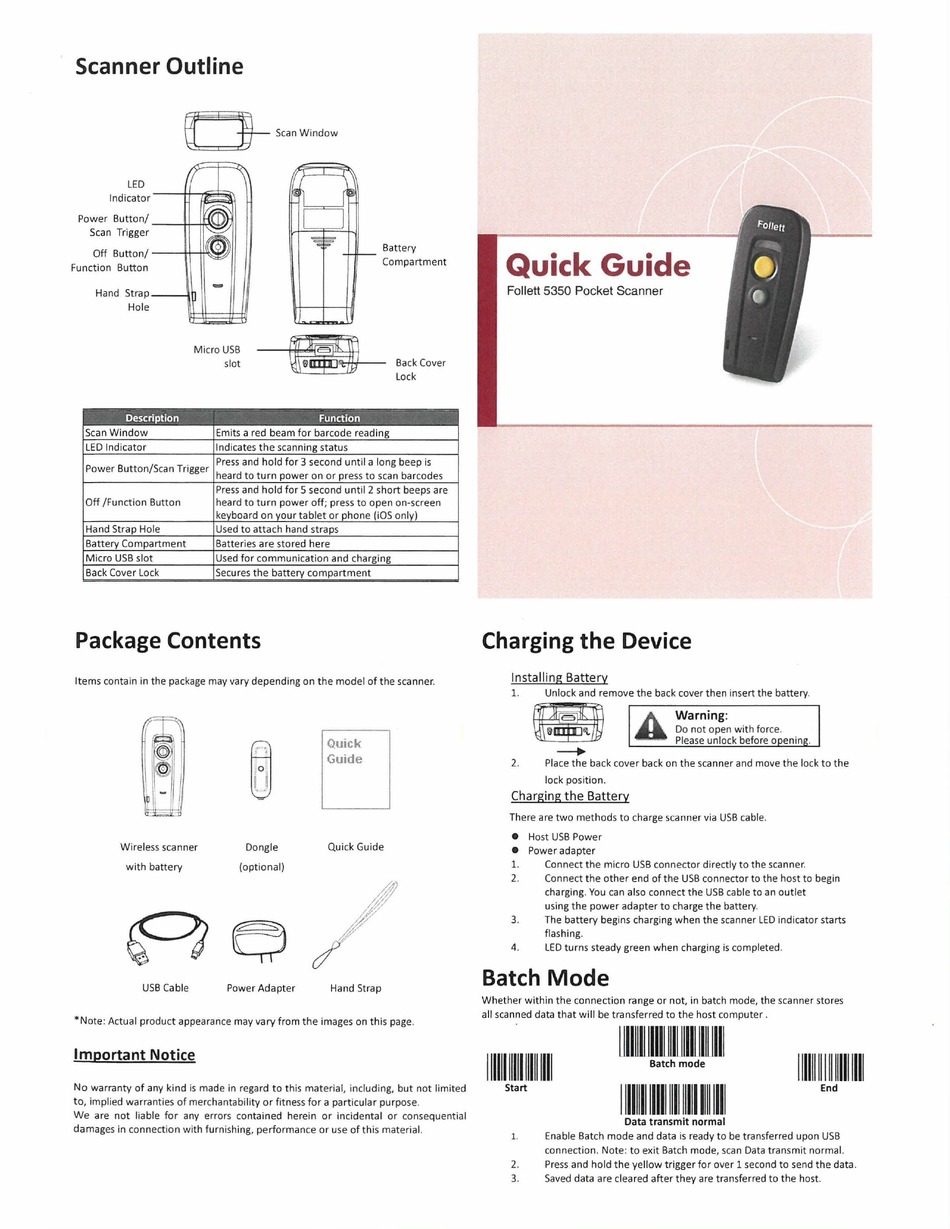

Follett 5350 Quick Manual

Scanner Outline
a: :
j--
Scan Window
LED
Indicator
Off Button/ -----tt--ft'~',(I
Battery
Compartment
Function Button
Hand Strap
Hole
Micro USB
slot
Back Cover
Lock
- - - - - - - - - - - - - - - - - - - - --
- - -
Description Function
Scan Window Emits a red beam for barcode reading
LED Ind icator Indicates the scanning status
Power Button/Scan Trigger
Press and hold for 3 second until a long beep is
heard to turn power on or press to scan barcodes
Press and hold for 5 second until 2 short beeps are
Off /F unction Button heard to turn power off; press to open on-screen
kevboard on vour tablet or ohone (iOS onlv)
Hand Strap Hole Used to attach hand straps
Battery Compartment Batteries are stored here
Micro USB slot Used for communication and charging
Back Cover Lock
Secures the battery compartment
Package Contents
Items contain in the package may vary depending on the model of the sca nner.
Wireless scanner
with battery
USB Cable
n
' I
' I
01
L.
Dongle
(optiona l)
Power Adapter
Quick
Guide
Quick Guide
Hand Strap
*Note: Actual product appearance may vary from the images on this page.
Important Notice
No warranty of any kind is made in regard to this material, including, but not limited
to, implied warranties of merchantability or fitness for a particular purpose.
We are not lia ble for any errors contained herein or incidental or consequential
damages in connection with furnishing, performance or use of this material.
Quick Guide
Follett 5350 Pocket Scanner
Charging the Device
Installing Battery
l. Unlock and remove the back cover then insert the battery.
~
A
Warning:
. . Do not open with force.
Please unlock before o enin
----+
2. Place t he back cover back on the scanner and move the lock to the
lock position.
Charging the Battery
There are two methods to charge scanner via USB cable.
• Host USB Power
• Power adapter
l. Connect the micro USB connector directly to the sca nn er.
2. Connect the other end of the USB connector to the host to begin
charging. You can also connect the USB cable to an out let
using the power adapter t o charge the battery.
3. Th e battery begins charging when the scanner LED indicator starts
flashing.
4. LED turn s steady green when charging is completed.
Batch Mode
Whether within the co nne ctio n range or not, in batch mode, the scanner stores
all scanned data that wi ll be transferred to the host computer.
1111111111111111 IIII
~llllllllll~~llllllllllllll
Batch mode
11111111111111111111
Start
I
lllllll lllll 11111111111111111
End
Data transmit normal
1.
Enable Batch mode and data is ready to be transferred upon USB
connection. Note: to exit Batch mode, scan Data transmit normal.
2. Press and hold the yellow trigger for over 1 second to send the data .
3. Saved data are cleared after they are tran sferred to the host.
