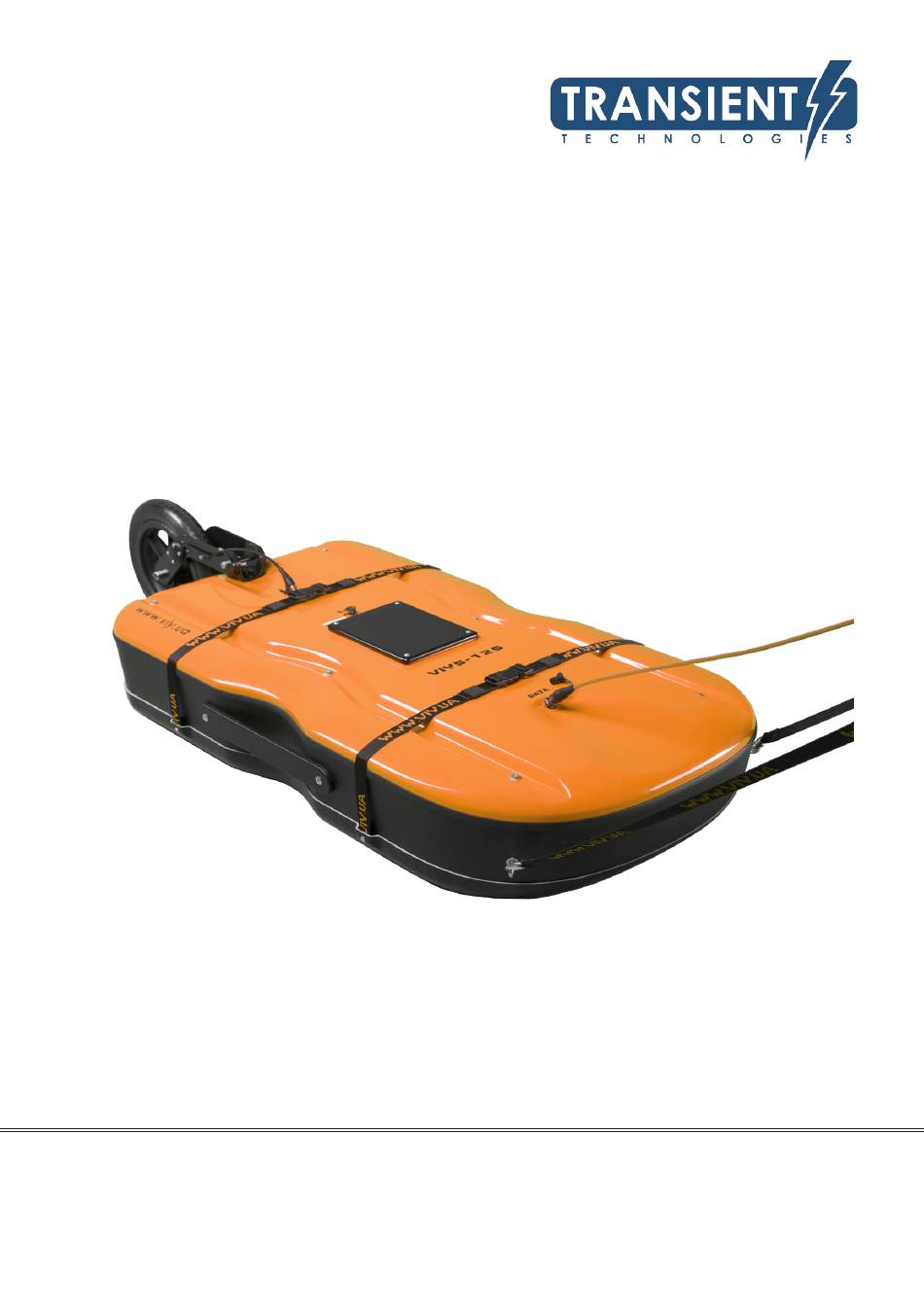

- Page 1 VIY5-125 Ground Penetrating Radar User Manual Part 1. Equipment...
- Page 2 Kyiv 02002, Ukraine Phone: +380 (44) 240-85-94 E-mail: info@viy.ua Web-site: www.viy.ua – registered trademark of Transient Technologies LLC ® All pictures in this User Manual are given for reference purpose only, and may differ from actual product appearance. Product design and specification may be changed by manufacturer without notification.
-
Page 3: Table Of Contents
Contents General information ....................4 VIY5-125. New generation of Ground Penetrating Radars..........4 Application of VIY5-125 GPR ..................4 Package options ....................... 4 VIY5-125m Manual version Antenna + VO-36 odometer + transportation pole ............4 List of Equipment and Accessories ................. 5 Main components description ................. -
Page 4: General Information
Also the equipment can be used for searching and mapping of: underground water sources leaks, oil and other dangerous liquids underground pollutions; ground water level. VIY5-125 Ground Penetrating Radar (GPR) has Dual Frequency antenna with central frequencies of 125 MHz. -
Page 5: List Of Equipment And Accessories
VO-36 is a bidirectional odometer (measuring wheel) that measures traveled distance in both directions. Odometer can be mounted to an antenna unit and should be electrically connected to the antenna by special connector. Compatible with VIY5-125 GPR SH5-300 Protective bottom cover SH5-300, compatible with AB5-37 antenna unit. -
Page 6: Main Components Description
• GPS receiver Manual version Picture below shows general view of the manual version of VIY5-125 GPR with VO-36 odometer and a transportation belt. Laptop can be placed on the laptop shelf that should be fastened to operator’s backpack. DC5-2 Cable should be connected to DATA socket on the antenna and to USB port of operator’s laptop. -
Page 7: Measuring Wheel (Odometer)
Main components description VO-36 Measuring wheel (odometer) VO-36 is a bidirectional measuring wheel (odometer) that can be mounted on the antenna unit in manual version of this GPR. It can be mounted to the antenna unit without any extra tools. Transportation belt The transportation belt is a special belt that should be fixed to the antenna unit to move antenna during data acquisition process. -
Page 8: Getting Started
Getting Started Getting Started Manual version of VIY5-125 GPR Mounting Transportation pole and Odometer to antenna unit. Mount odometer to the antenna unit and screw them manually. Connect the transportation belt to antenna with carabiners. Connect the cable of odometer to antenna socket. -
Page 9: Push-Pull Connectors
Getting Started Push-pull connectors. To connect push-pull connectors you should open cap then match together the white marks on a plug and a socket correspondingly and then insert the plug by holding its housing. To disconnect - just pull the plug ring back and disconnect it. 9 GPR power supply is turning on when DATA socket is connected to the socket 9 Do not pull the cable trying disconnect the plug. -
Page 10: Connecting Antenna Unit To A Laptop
Getting Started Connecting antenna unit to a laptop Connect DC5-2 Cable (orange cable) to DATA socket on the antenna unit and to USB port of a laptop. -
Page 11: Mounting The Laptop Shelf On The Operator's Backpack
Getting Started Mounting the laptop shelf on the operator’s backpack If GPR is used together with VO-22 odometer, the laptop should be mounted on the special portable shelf that should be fastened to the operator’s backpack. To mount the laptop shelf follow the next steps: •... - Page 12 Getting Started • Turn the metallic holders 90 degree aside and put them into slots as shown on the picture below. Slots • Put the backpack on, adjust the backpack side stripes and fasten the backpack belt. • Fasten operator’s shelf locks to the corresponding locks on the backpack stripes •...
-
Page 13: Gpr Parameters Setting And Gpr Calibration
Getting Started • Mount the laptop on the shelf, fastening it on the shelf with Velcro tape. When the work is finished, fold the shelf in the back order and pack it to the backpack. GPR parameters setting and GPR calibration Please read User Manual part 2. -
Page 14: Gpr Battery
Charging battery of VIY5-125 GPR For charging the battery of VIY5-125 GPR you should connect the charger plug into DATA socket that is located on the Handcart (or into DATA socket on a Battery Box if connected), and then plug the charger to the AC power (220-240V AC, 50-60 Hz). - Page 15 GPR battery Replace battery in Antenna Unit To replace the battery in the Antenna Unit: • Unscrew four screws on the Battery Box cover Unscrew four screws • Use the tool from GPR set • Take the cover off the battery compartment. •...
-
Page 16: Specifications
Specifications Specifications Model of GPR VIY5-125 Antenna unit, MHz Max sounding depth, meters (depending on soil 15.0 properties) Survey window, nsec 120, 180, 240, 300 nsec Spatial resolution, meters, (not worse) <0.9 m Maximum number of samples per trace 1000... -
Page 17: Limited Warranty
WARRANTY OR UNDER ANY OTHER THEORY, even if advised of the possibility of such damages. In event Transient Technologies LLC be liable for sums in excess of the purchase price of the product. Transient Technologies LLC is thus not liable for lost profits or goodwill; downtime; damage or destruction of any program, data, equipment, or other property;...
