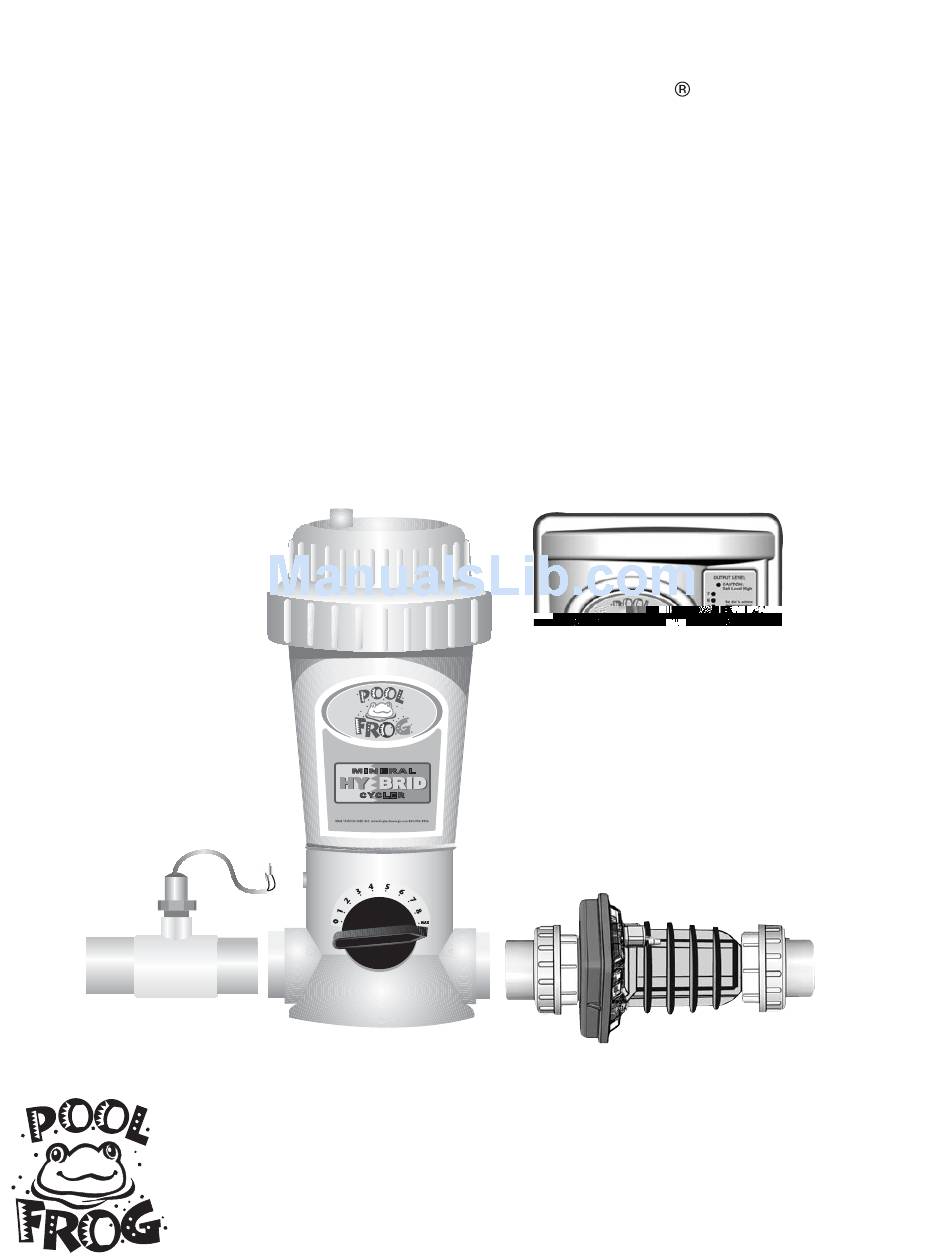

- Page 1 Mineral HyBrid Operations Manual IMPORTANT: This manual must be given to the homeowner to ensure warranty coverage. Customer Service 800-222-0169 www.kingtechnology.com...
-
Page 2: Warning-Safety First
• The flow sensor must be installed immediately before the POOL FROG Hybrid Cycler followed by the POOL FROG • When cleaning the cell or adjusting pH, ALWAYS ADD ACID TO WATER, NEVER WATER TO ACID. • SAVE THESE INSTRUCTIONS. Mineral ® Mineral Hybrid Cell. ®... -
Page 3: Table Of Contents
Easy Maintenance POOL FROG ® Mineral Hybrid Cell Cleaning Winterizing Troubleshooting Saturation Index Glossary POOL FROG ® Mineral Hybrid Cycler Parts List Warranties For information on King Technology’s entire product line, visit our website at www.kingtechnology.com ® Mineral Reservoir 13-15 19-20... -
Page 4: Introduction
Welcome to easier pool care courtesy of POOL FROG POOL Mineral Hybrid, your pool water will look and feel better without a lot of work or a lot of chlorine. This system controls bacteria using a combination of minerals FROG and reduced chlorine levels–up to 50%* less. -
Page 5: Start-Up
New pools especially may contain undesirable matter. These pools need extra care to properly balance before using POOL FROG Mineral Hybrid. ® WATER BALANCE GUIDELINES Minimum Total Alkalinity:... -
Page 6: Adding Salt To The Pool
Adding Salt to the Pool 1. BEFORE ADDING THE SALT 2. CALCULATING THE SIZE OF THE POOL Gallons (dimensions are in feet) Rectangular Length x Width x Average Depth x 7.5 Round Diameter x Diameter x Average Depth x 5.9 Oval Length x Width x Average Depth x 6.7 3. -
Page 7: Inserting Pool Frog Mineral Reservoir
Inserting POOL FROG Mineral Reservoirs MUST be Replaced Every Season) POOL FROG ® Mineral Reservoir ® SLOT IN POOL ® FROG MINERAL RESERVOIR FIN INSIDE OF POOL ® FROG CYCLER... -
Page 8: Basic Operation
Basic Operation Periodically test your water and always maintain the following readings. (Use Saturation Index on page 16 to ensure proper balance.) Salt Level: 3000 - 4500 ppm Chlorine Level: 0.5 - 1.0 ppm 7.2 - 7.8 IMPORTANT: At least once a month have a professional test your water. -
Page 9: Controls
Controls 1. OUTPUT LEVEL—The lights marked 1-7 indicate the system’s chlorine output. The higher number indicates higher chlorine production. Turning the control knob clockwise increases chlorine production and should increase the chlorine output reading. To turn system off, turn knob all the way counterclockwise until power light turns off. -
Page 10: Easy Maintenance
• Lubricate o-ring often with silicone lubricant that came with your ® POOL FROG Mineral Hybrid. DO NOT USE petroleum based lubricants. • Replace knob in back of ® Mineral Hybrid POOL FROG Cycler by unscrewing old one... -
Page 11: Mineral Hybrid Cell Cleaning
It is beneficial to keep the control panel clean, dry and out of the sun. CELL WIRING DIAGRAM ® Mineral Hybrid helps improve the... -
Page 12: Winterizing
Winterizing • Turn pump off and turn dial to 0. • Remove cap. • Unscrew knob in the back of POOL FROG Hybrid Cycler. Allow all water to drain. Mineral ® • Remove the POOL FROG ® Mineral Reservoir and discard in trash. -
Page 13: Troubleshooting
Note: evaluating the possible causes for each problem from top to bottom (first to last) will avoid extra labor. PROBLEM POSSIBLE CAUSES System is turned off. Control knob is set too low in relation to chlorination demand (e.g. higher number of bathers, warmer weather, increased debris in pool). - Page 14 PROBLEM 5. Output Light #7 is not lit when turning control knob all the way up. 6. Salt Level High A. Red caution light is flashing. B. Red caution light is solid or output lights 1-7 go up and down quickly. 7.
- Page 15 PROBLEM 11. Colored Water 12. Algae Our contact information is found on the front cover of this manual. Please feel free to contact us with any questions or comments. Our Customer Service Department is open from 8:00 AM to 5:00 PM Central Standard Time, Monday through Friday. Please have the following information ready: 1.
-
Page 16: Saturation Index
Saturation Index Test the water for pH, Alkalinity, Calcium Hardness and Temperature, then follow the simple steps below: Write your pool’s pH level here: 2. Find your Alkalinity level in the chart below, and write the corresponding Alkalinity Factor here: Pool Alkalinity Factor 3. -
Page 17: Glossary
New Pool Water in recently filled or newly refinished pools may contain undesirable matter. The ability of the POOL FROG Mineral Hybrid Generator to maintain your pool ® sanitation could be hindered by this matter so it is best to balance the pool water first. -
Page 18: Pool Frog Mineral Hybrid Cycler Parts List
POOL FROG Mineral Hybrid Cycler Parts List ® OTHER COPY? SILICONE LU BRICANT COPY COPY COPY DIAGRAM/PARTS LIST REF. # PART No. DESCRIPTION 1 & 2 01-22-9412 Cap w/O-Ring 01-22-9920 Cap O-Ring Body 01-22-9480 Pressure Relief Valve 5, 6, 7 01-22-9440... -
Page 19: Warranties
OR IMPLIED, AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER CONCERNING THE POOL FROG MINERAL HYBRID CYCLER. Any express warranty not provided herein, and any remedy for breach of contract but which for this provision might arise by implication or operation of law is hereby excluded and disclaimed. - Page 20 POOL FROG Mineral Hybrid Generator Seven-Year Limited Warranty ® This warranty applies to the chlorine generator and their factory-supplied components (the generator) when purchased from an authorized dealer and used for residential swimming pools or spas. King Technology, Inc. warrant the generator to be free from defects in materials and workmanship...
