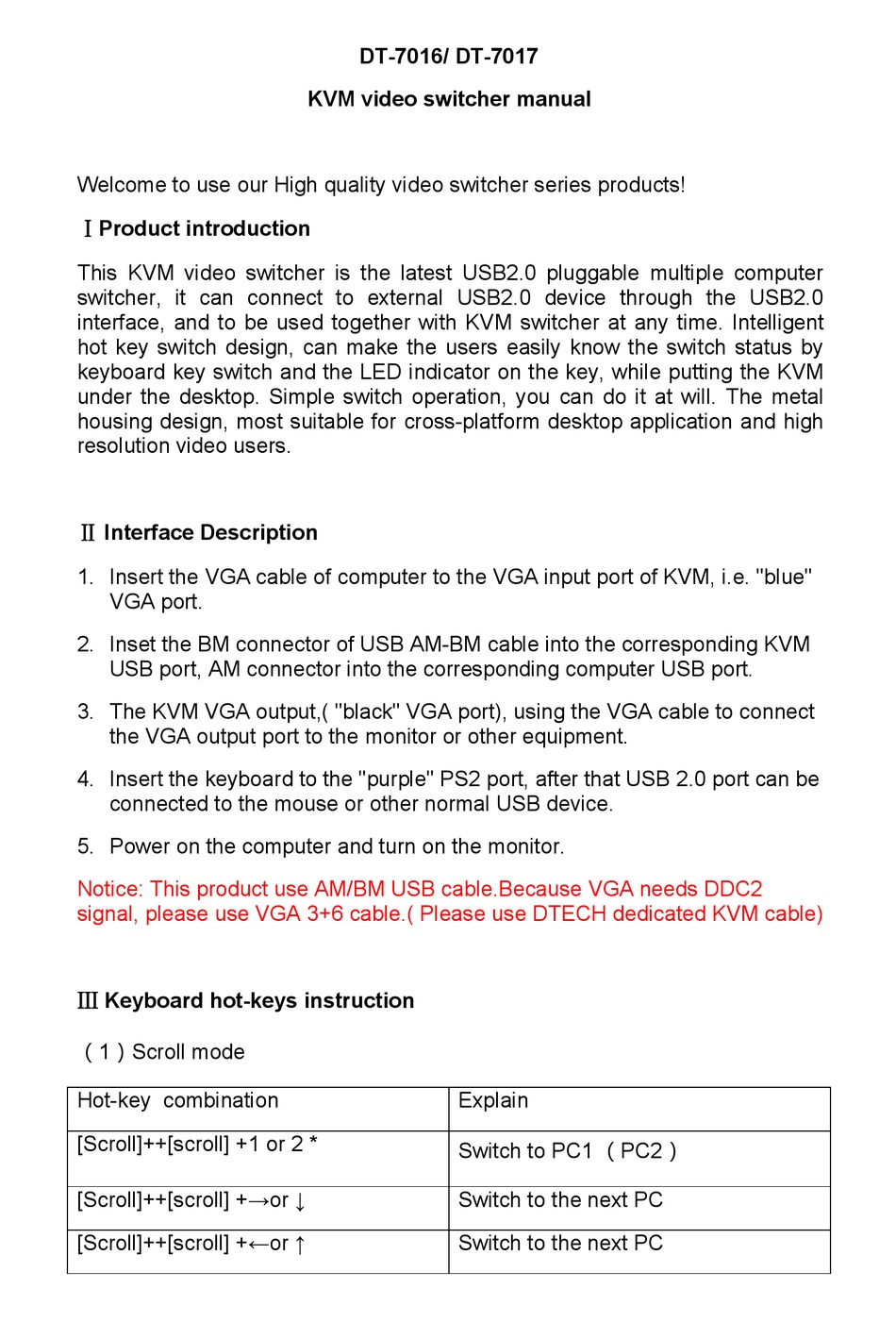

DTech DT-7016 Manual

Welcome to use our High quality video switcher series products!

ⅠProduct introduction

This KVM video switcher is the latest USB2.0 pluggable multiple computer
switcher, it can connect to external USB2.0 device through the USB2.0
interface, and to be used together with KVM switcher at any time. Intelligent
hot key switch design, can make the users easily know the switch status by
keyboard key switch and the LED indicator on the key, while putting the KVM
under the desktop. Simple switch operation, you can do it at will. The metal
housing design, most suitable for cross-platform desktop application and high
resolution video users.

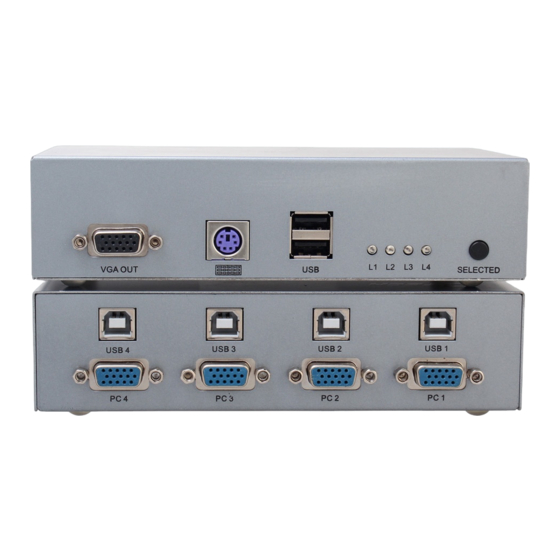

Ⅱ Interface Description

1. Insert the VGA cable of computer to the VGA input port of KVM, i.e. "blue"
VGA port.
2. Inset the BM connector of USB AM-BM cable into the corresponding KVM
USB port, AM connector into the corresponding computer USB port.
3. The KVM VGA output,( "black" VGA port), using the VGA cable to connect
the VGA output port to the monitor or other equipment.
4. Insert the keyboard to the "purple" PS2 port, after that USB 2.0 port can be
connected to the mouse or other normal USB device.
5. Power on the computer and turn on the monitor.
Notice: This product use AM/BM USB cable.Because VGA needs DDC2
signal, please use VGA 3+6 cable.( Please use DTECH dedicated KVM cable)

Ⅲ Keyboard hot-keys instruction

（1）Scroll mode
Hot-key combination
[Scroll]++[scroll] +1 or 2 *
[Scroll]++[scroll] +→or ↓
[Scroll]++[scroll] +←or ↑
DT-7016/ DT-7017
KVM video switcher manual
Explain
Switch to PC1 （PC2）
Switch to the next PC
Switch to the next PC
